LM358 Dual Operational Amplifier

The LM358 Dual Operational Amplifier is a highly versatile and widely used integrated circuit that contains two independent, high-gain operational amplifiers internally compensated for single-supply operation. Designed for low-power applications, the LM358 has become a standard choice in both industrial and educational electronics due to its reliability, flexibility, and cost-effectiveness.

Overview and General Description

The LM358 Dual Operational Amplifier operates from a single power supply over a wide voltage range, typically from ٣ V up to ٣٢ V, or from ±١.٥ V to ±١٦ V in dual-supply configurations. One of its most important characteristics is its ability to include the negative rail (ground) in its common-mode input voltage range, which makes it ideal for single-supply systems.

Unlike many older op-amps, the LM358 does not require a negative supply to process signals referenced to ground. This feature significantly simplifies circuit design and reduces overall system cost, especially in battery-powered and portable devices.

Key Electrical Characteristics

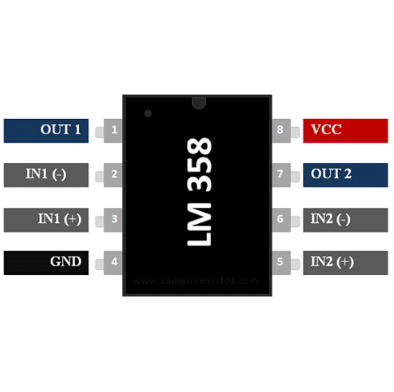

• Dual independent operational amplifiers in one package

• Low power consumption suitable for long-term operation

• Wide supply voltage range

• Input common-mode voltage includes ground

• Large DC voltage gain

• Internally frequency compensated for stability

• Low input bias current

These characteristics make the LM358 Dual Operational Amplifier suitable for a broad range of analog signal-processing tasks.

Typical Applications

The LM358 is commonly used in:

• Signal conditioning circuits

• Voltage followers (buffer amplifiers)

• Active filters (low-pass, high-pass, band-pass)

• Sensor amplification (temperature, light, current sensors)

• Comparators in low-frequency applications

• Audio pre-amplifier stages

• Battery-powered instrumentation

Because it integrates two op-amps in a single package, designers can implement multiple stages of amplification or filtering without increasing board space.

Advantages in Practical Design

A major advantage of the LM358 Dual Operational Amplifier is its robustness in real-world environments. It tolerates noisy supplies and operates reliably even at low voltages. Its output can swing close to ground, which is particularly beneficial when interfacing with ADCs, microcontrollers, and other digital systems.

Additionally, the LM358 is available in multiple package types such as DIP-٨ and SMD variants, making it suitable for both prototyping and mass production.

Datasheet Summary (Technical Specifications)

• Number of amplifiers: ٢

• Supply voltage range: ٣ V to ٣٢ V (single supply)

• Input offset voltage: Typically ٢ mV

• Gain bandwidth product: ~١ MHz

• Slew rate: ٠.٣ V/µs

• Input bias current: ~٢٠ nA

• Operating temperature range: ٠ °C to +٧٠ °C (commercial grade)

For precise design calculations, reference to the official manufacturer datasheet is always recommended.

Conclusion

The LM358 Dual Operational Amplifier remains one of the most popular and trusted analog ICs in the electronics market. Its combination of low power consumption, flexible supply requirements, and dependable performance makes it an excellent choice for engineers, students, and hobbyists alike. Whether used in simple voltage followers or more complex signal-processing circuits, the LM358 continues to prove its value as a foundational building block in modern electronic design.
