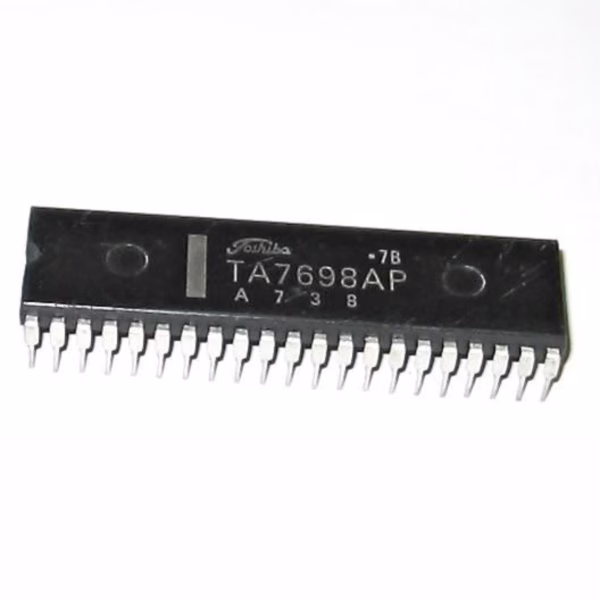

TA7698 Deflection System for a Color Television

The TA7698 Deflection System for a Color Television is a dedicated integrated circuit developed to manage and control the deflection stages in color television receivers. This IC plays a critical role in ensuring accurate horizontal and vertical scanning of the electron beam across the screen. As a result, stable picture geometry, correct image alignment, and consistent visual quality can be achieved. Due to its integrated architecture and proven reliability,has been widely used in classic CRT-based color TV designs and remains important for repair and maintenance applications.

General Description

The TA7698 Deflection System for a Color Television is designed to control deflection signals that drive the yoke in a color CRT television. It processes timing and control signals and converts them into appropriate waveforms required for horizontal and vertical deflection circuits. By integrating multiple deflection-related functions into a single IC, the overall circuit complexity is significantly reduced. Consequently, manufacturers were able to design more compact and reliable television chassis.

Typical applications include:

• Color CRT television receivers

• TV deflection control boards

• Legacy television repair projects

• Educational demonstrations of CRT technology

Key Features

 offers a comprehensive set of features tailored for CRT deflection control.

Key features include:

• Integrated horizontal and vertical deflection control

• Stable timing signal processing

• Designed specifically for color television systems

• Reliable operation over extended periods

• Reduced need for external control circuitry

• Optimized for consumer electronics applications

Performance Characteristics

From a performance perspective,ensures precise synchronization between scanning signals and video output. This synchronization is essential to maintain proper image positioning and avoid distortion such as bending, rolling, or misalignment. Moreover, the IC provides consistent behavior even under variations in supply voltage, which is common in consumer television environments.

Performance benefits include:

• Accurate screen scanning and geometry

• Stable horizontal and vertical deflection signals

• Improved picture stability

• Consistent performance during long operating hours

These characteristics made the IC a trusted solution in mass-produced color television sets.

Design and Integration Advantages

One of the main advantages of the TA7698 Deflection System for a Color Television is its ease of integration. By combining deflection control functions in a single IC, designers could simplify PCB layout and reduce the number of discrete components. In addition, service technicians benefit from easier troubleshooting and component replacement.

Design advantages include:

• Simplified deflection circuit design

• Reduced PCB space and wiring

• Lower manufacturing and servicing costs

• High reliability in long-term use

Datasheet Summary (Technical Specifications)

Below is a datasheet-style summary for technical reference:

• IC Type: Deflection System Controller

• Application: Color CRT Television

• Primary Functions: Horizontal and vertical deflection control

• Signal Processing: Timing and waveform generation

• Operating Voltage: Typical low-voltage DC supply

• Output: Deflection drive control signals

• Stability: Designed for continuous operation

• Package Type: DIP / SIP (variant dependent)

• Target Equipment: Color television deflection circuits

Conclusion

In conclusion, the TA7698 Deflection System for a Color Television represents a reliable and efficient solution for managing CRT deflection functions in color TV receivers. Its integrated design, stable electrical characteristics, and simplified implementation made it a cornerstone component in classic television engineering. Even today, it remains highly valuable for technicians, educators, and restoration specialists working with legacy color television systems.
