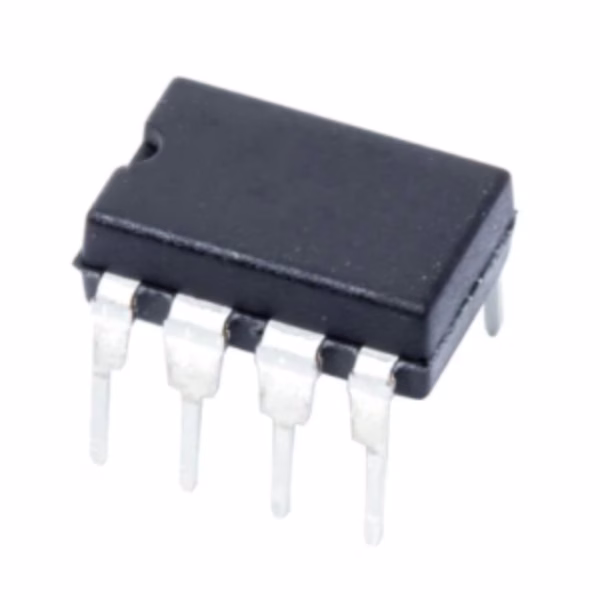

LM741 General-Purpose Operational Amplifier

The LM741 General-Purpose Operational Amplifier is a highly reliable and versatile op-amp used extensively in analog signal processing, instrumentation, audio applications, and control systems. Moreover, this classic operational amplifier provides stable performance, excellent internal frequency compensation, and robust operating characteristics, making it suitable for a wide variety of linear applications. Because original high-quality LM741 units are becoming increasingly difficult to locate in the modern component market, this device is now considered both new and rare, offering significant value to engineers, technicians, and hobbyists.

Additionally, the LM741 arrives in brand-new condition, ensuring consistent performance across temperature and voltage variations. Its internal circuitry minimizes offset, drift, and noise, which consequently enhances precision in sensitive analog systems. Furthermore, the device offers excellent overload protection on both input and output terminals, which increases long-term reliability in professional and educational electronic designs.

Key Features

• Fully internally compensated general-purpose op-amp

• High input impedance and low output impedance

• Overload protection on input and output

• Wide supply voltage range for design flexibility

• Supplied as a new and rare original component

Typical Applications

• Audio preamplifiers and signal conditioners

• Analog filters and active equalizers

• Voltage followers, integrators, and differentiators

• Sensor signal amplification and instrumentation

• Educational analog circuit experiments and prototyping

Furthermore, the LM741 General-Purpose Operational Amplifier ensures stable performance in both single-supply and dual-supply configurations, which makes it suitable for diverse analog systems. Consequently, engineers often select the LM741 when designing circuits that require dependable linearity and low distortion. Therefore, the LM741 continues to be widely used in academic environments as well as in legacy industrial equipment. In addition, its standardized pinout and DIP packaging enable easy replacement in older circuit boards, ensuring compatibility with decades of existing designs.

Datasheet Specifications

• Input Offset Voltage: Typically 1–5 mV

• Input Bias Current: ~80 nA

• Supply Voltage Range: ±10V to ±22V

• Slew Rate: ~0.7 V/µs

• Gain Bandwidth Product: 1 MHz

• Output Voltage Swing: ±14V (typical)

• Package Options: DIP-8, SOIC-8

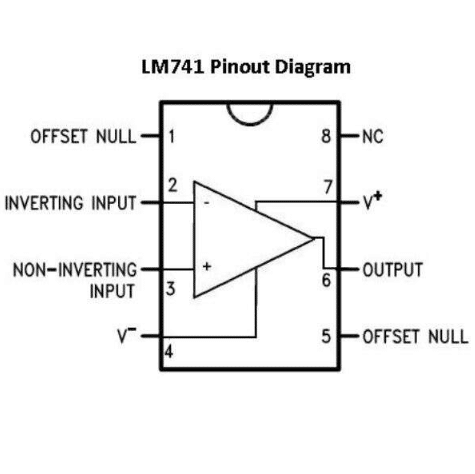

• Pinout:

  1. Offset Null

  2. Inverting Input

  3. Non-Inverting Input

  4. V−

  5. Offset Null

  6. Output

  7. V+

  8. NC / variant dependent

Why This Component Is Highly Valued

• Delivers stable, predictable analog performance

• Works in a wide range of educational and industrial designs

• Rare original versions remain highly sought after

• Ensures long-term reliability in precision circuits
