BT138F Thyristor 600V 12A

The BT138F Thyristor 600V 12A is a high-performance, insulated-package TRIAC designed for efficient AC switching and control in both industrial and consumer applications. This component is widely used in motor speed controllers, dimmers, AC load drivers, and temperature-regulation circuits due to its robust design and stable electrical characteristics. Moreover, because original high-quality TRIACs are becoming increasingly difficult to source, the BT138F is considered new and rare, making it extremely valuable for technicians who require authentic, reliable parts for demanding AC control systems.

Additionally, this thyristor is supplied in brand-new condition, ensuring consistent performance, excellent heat dissipation, and long operational life. Its fully isolated TO-220F package provides enhanced electrical safety and simplifies mounting without the need for additional insulation hardware. Therefore, it is a preferred choice for circuits where reliability, thermal stability, and compact design are essential.

Key Features

• High-voltage TRIAC suitable for AC mains control

• Fully isolated package for improved safety and easy installation

• Capable of handling up to 12A continuous current

• Excellent thermal performance in TO-220F case

• Rare and original component supplied in new condition

Typical Applications

• Light dimmers and fan speed controllers

• AC motor drives and pump controllers

• Heating control and temperature regulators

• Solid-state relays and AC switching modules

• Repair and restoration of industrial and home appliances

Furthermore, the BT138F Thyristor 600V 12A delivers low gate trigger current, fast switching response, and strong immunity to voltage spikes. Consequently, it is ideal for applications requiring reliable AC load handling without mechanical wear. Its durability ensures stable long-term operation even in harsh electrical environments.

Datasheet Specifications

• Device Type: TRIAC / Thyristor

• Repetitive Peak Off-State Voltage (VDRM): 600 V

• RMS On-State Current (IT(RMS)): 12 A

• Peak Non-Repetitive Surge Current: 100–120 A

• Gate Trigger Current (IGT): 5–35 mA

• Holding Current (IH): 20–40 mA

• Package: TO-220F (Fully Isolated)

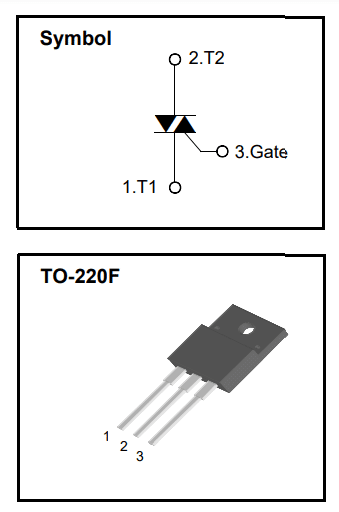

• Pinout (front view):

  1. Main Terminal 1 (MT1)

  2. Main Terminal 2 (MT2)

  3. Gate

Why This Component Is Valuable

• Excellent for reliable AC switching without mechanical relays

• Durable and thermally stable under continuous load

• Rare authentic units ideal for professional repairs

• Ensures safe operation thanks to its insulated package
