BTA16-800B Triac 16A 800V TO-220

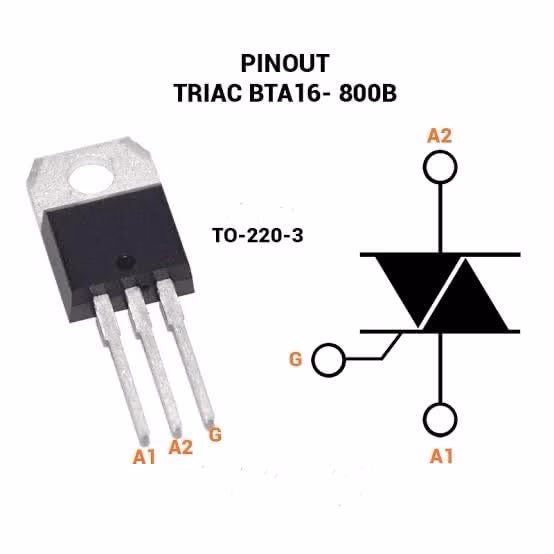

The BTA16-800B is a high-performance TRIAC capable of handling up to 16A at 800V. Encased in a TO-220 package, it is designed for bidirectional switching in AC applications. This TRIAC is commonly used for motor control, light dimming, and various industrial or consumer electronic devices requiring reliable AC load management. Features: High Current Capability Supports up to 16A RMS load. High Voltage Rating Operates effectively at 800V. Bidirectional Control Suitable for AC switching. Low Gate Trigger Current Ensures efficient control. Insulated Package TO-220 package with an isolated tab for safety and thermal efficiency. Robust Design Reliable performance in harsh environments. Pin Configurations: Specifications: Product Attribute Attribute Value Manufacturer: STMicroelectronics Product Category: Triacs Series: BTA16 Non Repetitive On-State Current: 168 A Rated Repetitive Off-State Voltage VDRM: 800 V Off-State Leakage Current @ VDRM IDRM: 5 µA On-State Voltage: 1.55 V Holding Current Ih Max: 50 mA Gate Trigger Voltage – Vgt: 1.3 V Gate Trigger Current – Igt: 100 mA Minimum Operating Temperature: – 40 C Maximum Operating Temperature: + 125 C Mounting Style: Through Hole Package/Case: TO-220 Packaging: Tube Current Rating: 16 A Mounting Style: Through Hole Applications: Lighting Control. Motor Speed Control. Industrial Automation. Home Automation. Temperature Control.

Handling & Safety

Always confirm the rating, polarity and pinout of a triac before installing it, and avoid exceeding its rated voltage or current. Use proper ESD precautions with sensitive parts. These steps protect your circuit and keep your work safe.

Why Choose This Triac

First, it is a widely used part in electronics repair, prototyping and assembly, so it fits into most existing projects easily. Second, the value, rating or pin count is clearly stated, so you can match it to your circuit with confidence. Third, our team checks basic function before it ships. So, you avoid guesswork when you order. As a result, this is a dependable choice for repair, prototyping or a finished project.

Usage Tips

Before soldering or installing, match the value, package and pin layout with your circuit diagram. Therefore, you avoid a wrong fit or a damaged board. Also, keep small parts stored in labeled bags so values do not get mixed up during a project. As a result, your build stays organized and easier to troubleshoot.

Good to Know

A well-matched triac saves time on the job later. Therefore, double-check the value, rating and pin layout against your circuit before relying on it in a final build. Also, keep the original packaging until you have tested the part, since this makes any exchange easier if something is not right. As a result, your project stays reliable with fewer surprises.

BTA16-800B Triac 16A 800V TO-220

BTA16-800B Triac 16A 800V TO-220 ترياك مخصص لـ فصل وتوصيل تيار متردد في الاتجاهين داخل دائرة تحكم.

الاستخدامات

• دوائر التحكم في الإضاءة وسرعة الموتور
• إصلاح الأجهزة والمعدات
• دوائر التحكم في الطاقة
• تجربة الدوائر الإلكترونية

ملاحظات الأمان

تأكد دايمًا من القيمة والقطبية وترتيب الأرجل بتاعة ترياك قبل التركيب، وماتتخطاش الجهد أو التيار المسموح بيه. استخدم احتياطات الشحنة الساكنة (ESD) مع القطع الحساسة. الخطوات دي بتحمي دائرتك وتخلي شغلك آمن.

ليه تختار ترياك ده

أولاً، قطعة مستخدمة بشكل واسع في إصلاح وتجميع الدوائر الإلكترونية، فتتناسب مع معظم المشاريع بسهولة. ثانيًا، القيمة أو التصنيف أو عدد الأرجل موضحة بدقة، فتقدر تطابقها مع دائرتك بثقة. ثالثًا، بنتأكد من الوظيفة الأساسية قبل الشحن. فهو اختيار موثوق للإصلاح أو التجربة أو مشروع متكامل.

تقدر تستعرض باقي المكونات الإلكترونية عندنا لمشروعك القادم.
