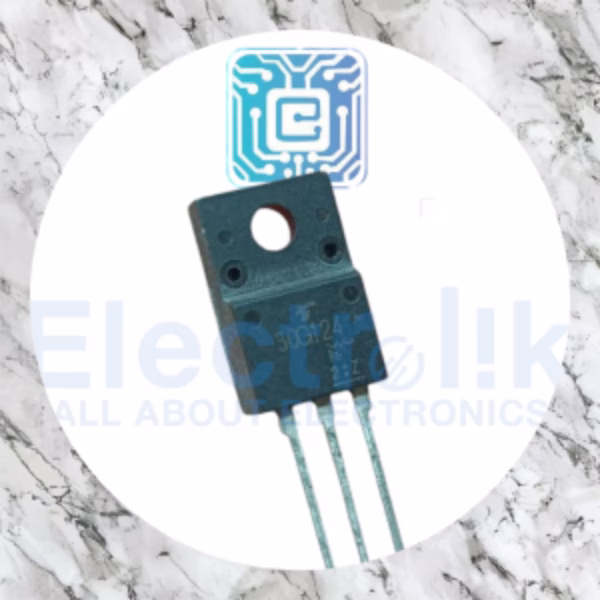

IGBT 30G124 NPN 200A 430V

Description:IGBT 30G124 NPN 200A 430V

30G124 IGBT is a high-performance NPN Insulated Gate Bipolar Transistor (IGBT) designed for heavy-duty switching and high-current applications. The 30G124 IGBT combines the high input impedance and fast switching characteristics of a MOSFET with the high current and low saturation voltage of a bipolar transistor, providing superior efficiency and power control in modern electronic systems.

With a maximum collector current of 200A and a collector-emitter voltage rating of 430V, the 30G124 IGBT delivers exceptional reliability and performance in demanding environments. It is commonly used in industrial power converters, motor drives, inverters, and welding systems. Engineered with advanced field-stop and trench-gate technology, this IGBT ensures minimal conduction losses, high-speed switching, and excellent thermal stability.

Encapsulated in a robust IGBT module package, the 30G124 IGBT offers high mechanical durability and efficient heat dissipation, guaranteeing long-term reliability and stable operation even under extreme electrical and thermal stress.

Key Features:

• High-Current Capability: Handles up to 200A continuous collector current.

• High Voltage Rating: Operates safely up to 430V collector-emitter voltage.

• Low Saturation Voltage (Vce(sat)): Ensures superior energy efficiency.

• Fast Switching Characteristics: Reduces switching losses and improves overall performance.

• High Input Impedance: Allows easy gate control with low drive power.

• Excellent Thermal Performance: Designed for efficient heat dissipation under full load.

• Durable IGBT Module Package: Provides mechanical and electrical reliability.

Applications:

• Industrial inverters and converters

• Motor control and variable frequency drives (VFDs)

• Power supply units and DC link circuits

• Welding equipment and induction heating systems

• Uninterruptible power supplies (UPS)

• Renewable energy converters (solar and wind)

• Electric vehicle and traction control systems

Electrical Characteristics (Typical Values):

Advantages:

• Combines MOSFET-like switching speed with BJT-level current handling.

• Offers low conduction and switching losses for high efficiency.

• Ensures stable performance under high temperature and current stress.

• Compact and reliable design ideal for industrial and automotive systems.

• Enhances power conversion efficiency and reduces thermal management costs.

Summary:

The 30G124 IGBT is a powerful and efficient NPN insulated gate bipolar transistor module built for high-current, high-voltage applications. With its 200A collector current and 430V voltage rating, it provides outstanding performance in inverters, motor drives, and industrial power systems. Its combination of fast switching, low losses, and excellent thermal stability ensures reliable and long-term operation. Whether used in renewable energy systems, motor control, or heavy-duty industrial electronics, the 30G124 IGBT delivers unmatched power efficiency, robustness, and reliability for advanced power management solutions.
