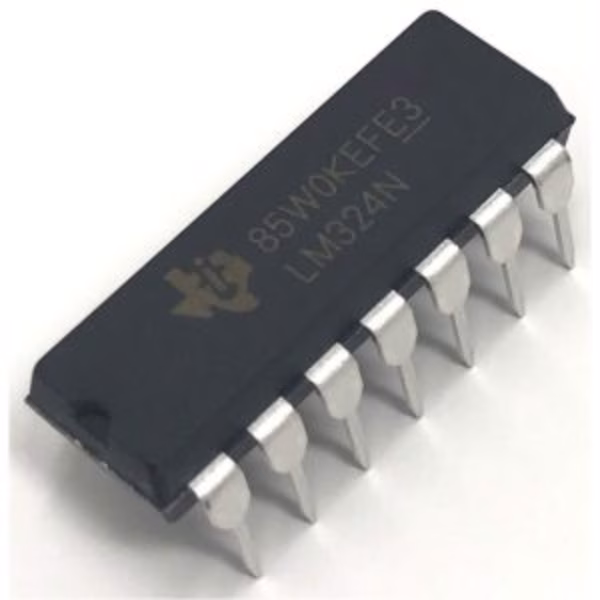

LM324 Operational Amplifier

LM324 Operational Amplifier is a widely used low-power quad operational amplifier designed to operate from a single power supply while still providing reliable analog signal processing. It integrates four independent op-amps in one package, making it an efficient and cost-effective solution for a wide range of electronic and industrial applications. Due to its versatility, stability, and ease of use, the LM324 remains a popular choice in both commercial products and educational electronics projects.

General Description

• The LM324 Operational Amplifier is optimized for single-supply operation, with a supply voltage range starting as low as ٣ V and extending up to ٣٢ V.

• It can also operate with split supplies (±١.٥ V to ±١٦ V), which increases its flexibility in analog circuit design.

• One of its most important features is the ability of the input common-mode voltage range to include ground, which is essential for low-voltage sensing applications.

Key Features and Advantages

• Four independent op-amps in a single IC package

• Low power consumption, suitable for battery-powered systems

• Wide supply voltage range for flexible system integration

• Input common-mode range includes ground

• Internally frequency compensated for stable operation

• High DC voltage gain for accurate signal amplification

These features make the LM324 Operational Amplifier an excellent choice for designers seeking reliability with minimal external components.

Typical Applications

• Signal conditioning and amplification

• Sensor interfacing (temperature, pressure, light sensors)

• Active filters (low-pass, high-pass, band-pass)

• Audio preamplifiers and tone control circuits

• Comparators in low-speed applications

• Industrial control and monitoring systems

Because it contains four op-amps, the LM324 significantly reduces board space and component count compared to using multiple single op-amp ICs.

Electrical Characteristics

• Input offset voltage: low, suitable for precision analog circuits

• Slew rate: approximately ٠.٥ V/µs

• Bandwidth: around ١ MHz (gain bandwidth product)

• Output voltage swing: includes ground, ideal for single-supply designs

These parameters allow the LM324 Operational Amplifier to perform well in low-frequency and general-purpose analog tasks.

Design Benefits

• Simplifies PCB layout by reducing the number of ICs required

• Stable operation without the need for external frequency compensation

• Proven long-term reliability with decades of industry usage

• Widely available and supported by extensive application notes

Datasheet Summary

• IC Type: Quad Operational Amplifier

• Package options: DIP-١٤, SOIC-١٤, TSSOP

• Supply voltage: ٣ V to ٣٢ V (single supply)

• Operating temperature range: ٠ °C to ٧٠ °C (commercial), extended versions available

• Manufacturer: Texas Instruments / STMicroelectronics / ON Semiconductor

The datasheet provides complete electrical specifications, internal block diagrams, recommended operating conditions, and example application circuits, making integration straightforward for engineers and technicians.

Conclusion

The LM324 Operational Amplifier remains a cornerstone in analog electronics due to its simplicity, efficiency, and adaptability. Whether used in educational projects, industrial systems, or consumer electronics, it delivers dependable performance with minimal design complexity.
