74190 Up/Down Decade Counter
24,20 EGP
Description
Features:
-
Counts 8-4-2-1 BCD or Binary
-
Single Down/Up Count Control Line
-
Count Enable Control Input
-
Ripple Clock Output for Cascading
-
Asynchronously Presettable with Load Control
-
Parallel Outputs
-
Cascadable for n-Bit Applications

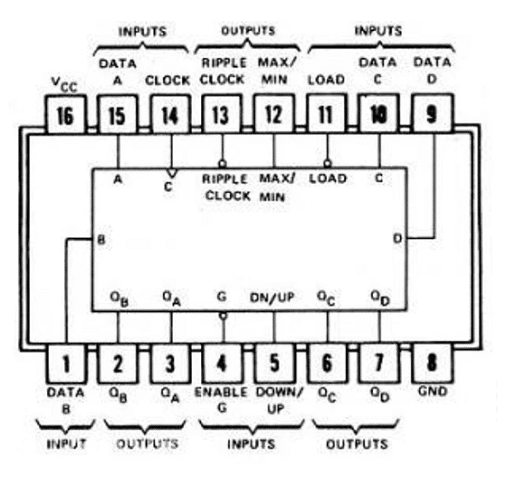

74LS190 Pinout Diagram
74LS190 Pin Description
| Pin No | Pin Name | Description |
| 1 | P1 | Parallel Data Input |
| 2 | Q1 | Flip-Flop Output |
| 3 | Q0 | Flip-Flop Output |
| 4 | CE’ | Count Enable (Active LOW) Input |
| 5 | U/D | Up/Down Count Control Input |
| 6 | Q2 | Flip-Flop Output |
| 7 | Q3 | Flip-Flop Output |
| 8 | GND | Ground |
| 9 | P3 | Parallel Data Input |
| 10 | P2 | Parallel Data Input |
| 11 | PL’ | Parallel Load Control (Active LOW) Input |
| 12 | TC | Terminal Count Output |
| 13 | RC’ | Ripple Clock Output |
| 14 | CP | Clock Pulse (Active HIGH going edge) Input |
| 15 | P0 | Parallel Data Input |
| 16 | VCC | Positive Supply |
Specifications
-
Family: LS
-
Logic circuit type: Synchronous up/down BCD counter
-
Counter type: BCD 8-4-2-1
-
Output type: Parallel
-
Minimum supply voltage: 4.75 V
-
Maximum supply voltage: 5.25 V
-
Minimum operating temperature: 0°C
-
Maximum operating temperature: 70°C
-
Encapsulation: DIP
-
16 pins
