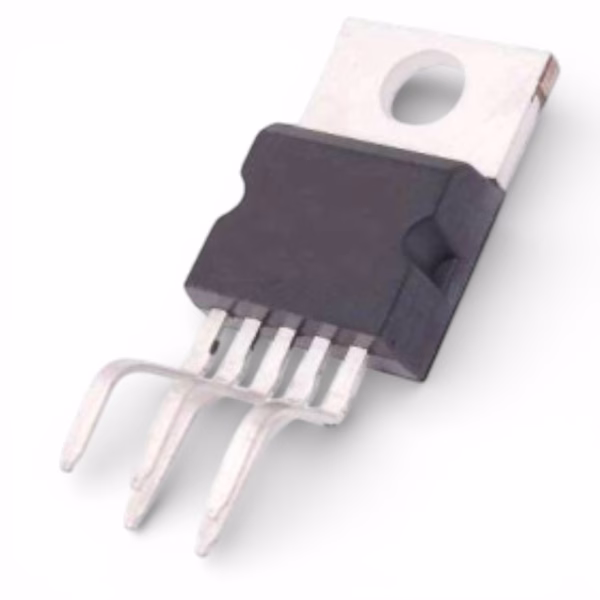

TDA2030A Audio Amplifier

• TDA2030A Audio Amplifier is a high-performance integrated circuit designed for audio power amplification in a wide range of analog sound applications. This IC delivers strong, clean audio output while maintaining excellent stability and low distortion. Engineers commonly select this amplifier for its balance between output power, sound quality, and circuit simplicity, making it a reliable choice for both commercial and DIY audio systems.

• TDA2030A Audio Amplifier provides impressive audio clarity thanks to its low total harmonic distortion and wide frequency response. The IC handles audio signals smoothly, preserving details across low and high frequencies. This performance makes it suitable for music playback systems, public address units, and home audio projects where sound quality matters.

• The amplifier operates efficiently with single or split power supplies, offering flexibility in circuit design. Designers can integrate it easily into different power configurations without complex adjustments. Its internal protection features help safeguard the device against short circuits, overheating, and excessive load conditions, ensuring long-term reliability.

• One of the main advantages of this IC is its ability to deliver high output power relative to its compact size. It can drive speakers effectively without the need for additional driver stages, which simplifies the overall amplifier design. This feature reduces component count and helps achieve cost-effective audio solutions.

• TDA2030A Audio Amplifier supports stable operation under continuous use. Its thermal performance allows it to dissipate heat efficiently when mounted with a suitable heatsink. This characteristic makes it ideal for applications that require sustained audio output, such as active speakers and audio amplifiers used in small venues.

• Common applications include audio power amplifiers, multimedia speaker systems, guitar and instrument amplifiers, educational electronics kits, and audio testing equipment. Technicians and hobbyists also rely on this IC for repairing or upgrading existing audio amplifier circuits due to its proven performance and availability.

• The IC suits both beginners and experienced designers. Its straightforward external component requirements allow fast prototyping, while its electrical performance meets the expectations of professional audio designs. This combination makes it a popular choice in audio electronics learning and experimentation.

Datasheet – Technical Specifications

• Device Type: Audio Power Amplifier IC

• Typical Output Power: Up to ١٨ W (depending on supply voltage and load)

• Supply Voltage Range: Typically ±٦ V to ±١٨ V or single supply equivalent

• Load Impedance: ٤ Ω to ٨ Ω

• Total Harmonic Distortion: Low distortion for clear audio output

• Frequency Response: Wide audio frequency range

• Protection Features: Thermal shutdown and short-circuit protection

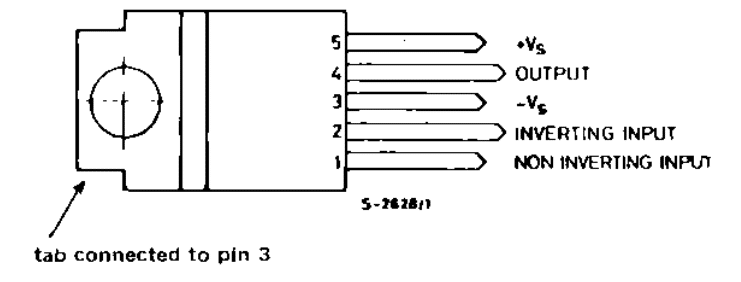

• Package Type: Pentawatt / TO-220 style

• Operating Temperature Range: Designed for consumer electronics environments

• Typical Applications: Audio amplifiers, speaker systems, PA systems, and DIY audio projects
