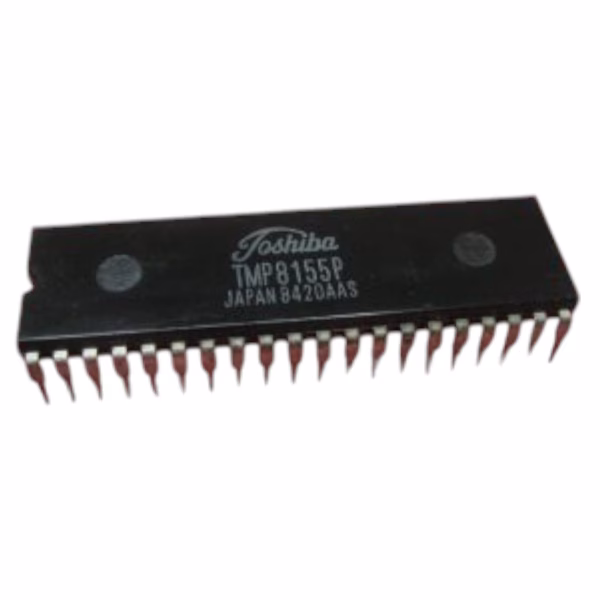

TMP8155 256Byte Static Ram With I/O Ports and Timer

TMP8155 256Byte Static RAM With I/O Ports and Timer is a classic multifunction support IC designed to work alongside early microprocessors and microcontroller-based systems. This device integrates static RAM, programmable I/O ports, and a timer into a single chip, making it a highly efficient and space-saving solution for legacy digital designs. Due to its discontinued status, it is now considered a rare component, mainly used for maintenance, restoration, and replacement in older electronic systems.

General Overview

To begin with, the TMP8155 256Byte Static RAM With I/O Ports and Timer was developed to simplify system design by reducing the number of external components required around a processor. Instead of using separate chips for memory, input/output control, and timing functions, designers could rely on this single IC. As a result, circuit complexity, board size, and overall cost were significantly reduced. Moreover, its stable architecture made it suitable for long-term operation in industrial and commercial environments.

Functional Integration and Design

From a functional standpoint, the TMP8155 256Byte Static RAM With I/O Ports and Timer combines three essential blocks into one package. Consequently, it became a popular companion IC in early embedded systems.
Its main integrated functions include:

• 256 bytes of static RAM for data storage

• Programmable parallel I/O ports for external device interfacing

• Built-in programmable timer for control and synchronization tasks

• Bus-compatible interface for easy processor connection

In addition, the static RAM design ensures fast access times and data retention without refresh cycles, which improves system reliability.

Typical Applications

Historically, the TMP8155 256Byte Static RAM With I/O Ports and Timer was widely used in microprocessor-based systems such as control units, measurement devices, and early automation equipment. For example, it appeared in industrial controllers, communication systems, and laboratory instruments. Furthermore, it was often used in educational and development platforms to expand I/O capabilities. Today, its importance lies primarily in repairing and sustaining legacy hardware where exact component compatibility is required.

Datasheet – Technical Summary

According to available datasheet information, the main specifications include:

• Memory capacity: 256 bytes static RAM

• I/O ports: Programmable parallel input/output lines

• Timer: On-chip programmable timer

• Interface: Microprocessor-compatible bus interface

• Data retention: Static RAM, no refresh required

• Control signals: Read, write, and chip select logic

• Operating voltage: Standard TTL/CMOS compatible range

• Package type: Through-hole package suitable for legacy PCBs

Therefore, the device provides dependable performance in systems that require stable memory and control functions.

Availability and Rarity

At present, the TMP8155 256Byte Static RAM With I/O Ports and Timer is considered obsolete and difficult to source. Nevertheless, it is still available through specialized suppliers dealing in discontinued and hard-to-find integrated circuits. Consequently, its market value is often higher than that of modern alternatives, especially when redesign is not an option.

Conclusion

In conclusion, remains an essential component for legacy electronics support. Although modern ICs offer higher integration and flexibility, this device excels in compatibility, reliability, and simplicity. Therefore, it continues to be a trusted solution for engineers and technicians maintaining older microprocessor-based systems where original design integrity must be preserved.
