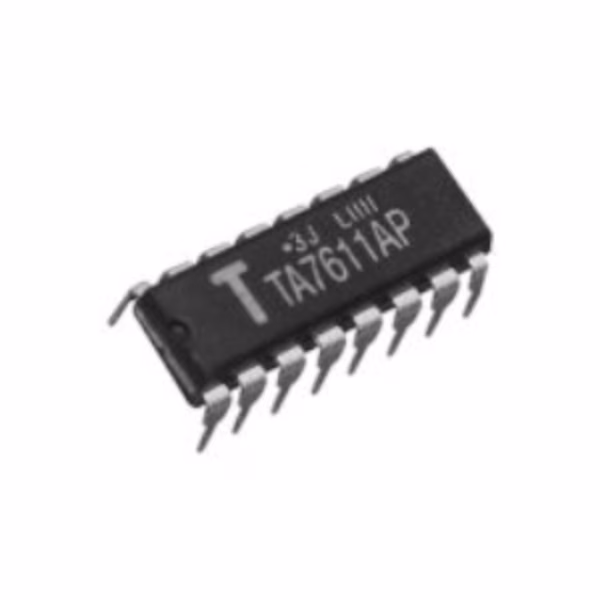

TA7611 FM IF-AM Tuner System

TA7611 FM IF-AM Tuner System is a highly regarded integrated circuit that has become a reference component in the design of low-power AM radio receivers. Moreover, this IC is known for its simplicity, reliability, and exceptional efficiency. As a result, the TA7641 Audio Radio Circuit is still widely used today in educational projects, experimental electronics, and the restoration of vintage radio devices. Despite its age, it remains a rare and valuable solution for analog radio applications.

Introduction to TA7641 Audio Radio Circuit

First of all, the TA7641 is designed specifically for AM radio signal reception. In addition, it integrates several essential radio functions into a single compact IC. Therefore, designers can reduce circuit complexity while maintaining stable performance. Furthermore, its low operating voltage makes it ideal for battery-powered and portable electronics.

Internal Operation and Signal Flow

To begin with, the TA7611 FM IF-AM Tuner System works with an external LC tuned circuit connected to its input. This tuned circuit selects the desired frequency from the AM broadcast band. Then, the IC amplifies the selected RF signal with high gain and low noise. After that, the internal detector demodulates the AM signal to extract the audio information. Finally, the IC delivers a clean, pre-amplified audio output that can be connected to an external audio amplifier or a high-impedance earphone.

Key Features and Advantages

Not only is the TA7641 Audio Radio Circuit easy to use, but it also offers several important advantages:

• Extremely low power consumption

• Stable operation at very low supply voltages

• Minimal number of external components

• High sensitivity for weak AM signals

• Compact and lightweight circuit design

Consequently, it is an excellent choice for long-life battery applications.

Typical Applications

Because of its unique characteristics, the TA7641 Audio Radio Circuit is commonly found in:

• AM broadcast radio receivers

• Educational electronics kits and training boards

• Emergency and backup radio devices

• Vintage and retro radio restorations

• Experimental RF and analog electronics projects

Additionally, it is often preferred by hobbyists due to its simplicity and reliability.

Datasheet Information (Technical Summary)

Below is a clear datasheet-style summary of the TA7641 IC specifications:

• IC Type: AM Radio Receiver / Audio Detector

• Package Type: TO-92 (3-pin)

• Supply Voltage Range: 1.1 V to 1.8 V

• Typical Current Consumption: 0.2 mA – 0.5 mA

• Frequency Range: AM broadcast band

• Input Configuration: External LC tuned circuit

• Output Type: Pre-amplified audio signal

• Operating Temperature: Standard consumer electronics range

Conclusion

In conclusion, represents a classic yet powerful solution for AM radio reception. Moreover, its ultra-low power consumption, compact size, and ease of implementation make it highly valuable even in modern electronics projects. Therefore, whether used for learning, experimentation, or restoring vintage radios, the TA7641 Audio Radio Circuit continues to prove its importance in the world of analog electronics.
