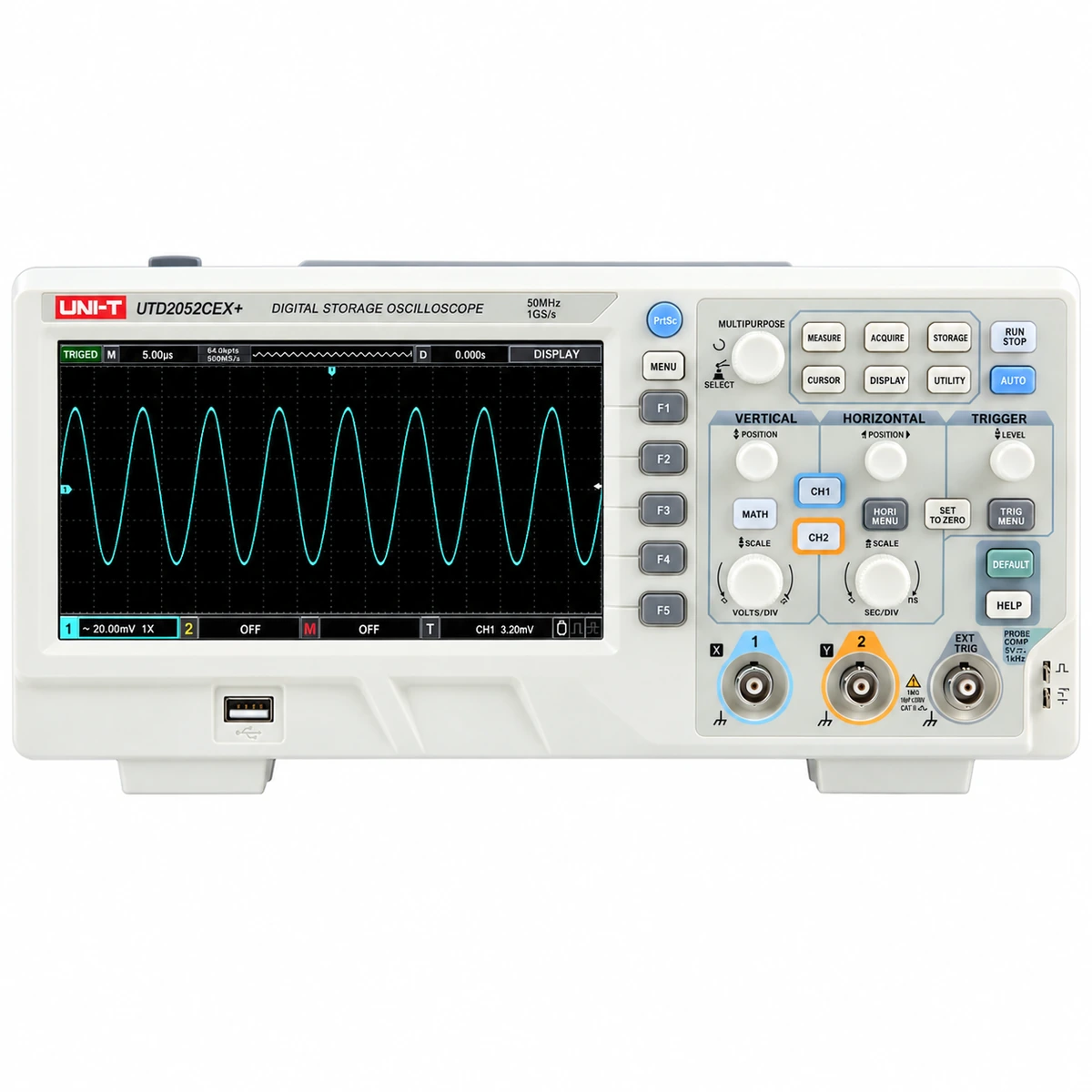

UTD2052CEX+ Digital Oscilloscope

The UTD2052CEX+ Digital Oscilloscope is a professional electronic testing instrument designed for analyzing electrical signals in laboratory, industrial, and educational environments. Engineers, electronics technicians, and students commonly use this oscilloscope to observe waveform signals, measure electrical parameters, and troubleshoot electronic circuits. As a result, the UTD2052CEX+ Digital Oscilloscope provides a reliable solution for signal analysis in research, development, and maintenance applications.

Moreover, the UTD2052CEX+ Digital Oscilloscope offers a bandwidth of 50 MHz and a real-time sampling rate of up to 1 GS/s, allowing accurate capture of fast electronic signals. This performance makes the oscilloscope suitable for analyzing signals in embedded systems, communication circuits, and power electronics.

In addition, the device features dual-channel input, enabling users to monitor two signal sources simultaneously. Because of this capability, engineers can compare waveforms, analyze signal timing relationships, and diagnose circuit performance more effectively.

Furthermore, the UTD2052CEX+ Digital Oscilloscope includes a 7-inch color TFT LCD display, which provides clear waveform visualization and easy parameter reading. The intuitive interface and menu navigation allow technicians to configure measurement settings quickly and perform advanced signal analysis.

Another important advantage of the oscilloscope is its multiple automatic measurement functions, which allow users to measure parameters such as frequency, amplitude, rise time, duty cycle, and peak voltage automatically. These features significantly reduce the time required for signal analysis during troubleshooting and circuit testing.

The device also includes advanced trigger functions, waveform storage, USB connectivity, and multiple mathematical analysis features. Because of these capabilities, the UTD2052CEX+ Digital Oscilloscope is widely used for electronics debugging, circuit design, educational experiments, industrial equipment maintenance, and communication system testing.

Key Features

• 50 MHz Bandwidth
  Suitable for analyzing medium-frequency electronic signals.

• 1 GS/s Real-Time Sampling Rate
  Captures fast waveform signals accurately.

• Dual Channel Input
  Allows simultaneous monitoring of two signals.

• 7-Inch Color TFT Display
  Provides clear waveform visualization.

• Automatic Measurement Functions
  Measures voltage, frequency, duty cycle, rise time, and more.

• Advanced Trigger System
  Improves signal capture accuracy.

• USB Connectivity
  Allows data transfer and waveform storage.

• Portable Desktop Design
  Ideal for laboratories, workshops, and educational use.

Applications

The UTD2052CEX+ Digital Oscilloscope is widely used in professional electronic testing applications such as:

• Electronic circuit debugging

• Embedded system signal analysis

• Communication signal testing

• Power electronics measurement

• Laboratory research and experiments

• Electronics education and training

Technical Specifications (Datasheet)

• Model: UNI-T UTD2052CEX+

• Product Type: Digital Storage Oscilloscope (DSO)

• Bandwidth: 50 MHz

• Channels: 2 Channels

• Real-Time Sampling Rate: 1 GS/s

• Memory Depth: Up to 25 kpts

• Display: 7-inch TFT LCD (800 × 480)

• Vertical Resolution: 8-bit

• Trigger Modes: Edge, Pulse, Video, Alternate

• Automatic Measurements: 32 measurement types

• Interface: USB Host / USB Device

• Power Supply: AC 100–240 V, 50/60 Hz

• Dimensions: 306 × 147 × 122 mm

• Weight: ≈2.2 kg
