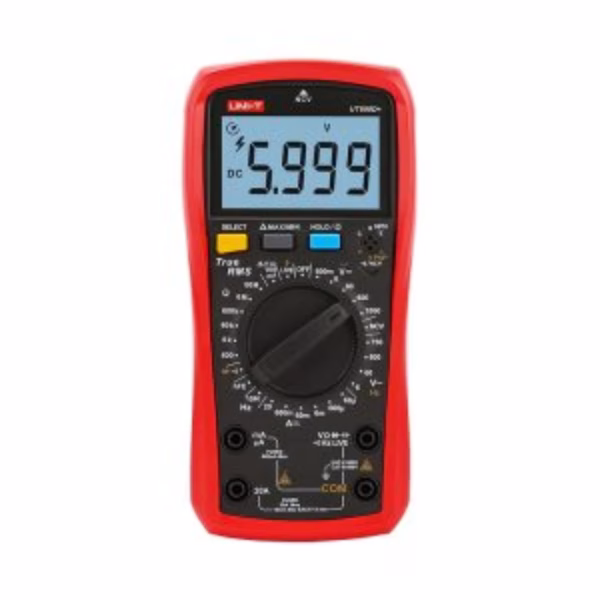

UNI-T UT890D+ Digital Multimeter

The UNI-T UT890D+ Digital Multimeter is a professional, high-accuracy measuring instrument engineered for technicians, engineers, electricians, and students who require precision, speed, and reliability. With advanced measurement functions, durable construction, and intelligent features, the UNI-T UT890D+ Digital Multimeter offers exceptional performance for troubleshooting, maintenance, electronics repair, and educational training.

Key Features

• High-performance True RMS measurement for accurate readings on complex waveforms.

• Large backlit LCD display with up to 6000 counts for maximum clarity.

• Auto-range capability for faster and more reliable measurement selection.

• Full protection against overload on all ranges.

• Compact, robust design ideal for field work, labs, and workshops.

• Intelligent NCV (non-contact voltage) detection for enhanced safety.

• Fast continuity and diode check functions for efficient diagnostics.

Detailed Description

The UNI-T UT890D+ Digital Multimeter is designed to deliver superior accuracy and convenience for a wide range of electrical and electronic measurements. It features True RMS technology, enabling precise measurement even when dealing with distorted or non-sinusoidal signals—making it highly suitable for modern electronic circuits, inverters, power supplies, and control boards.

Its ergonomic body, large screen, and intuitive user interface allow users to operate the device effortlessly, even during long working sessions. The backlit display ensures excellent visibility in dim environments, while the strong internal build provides long-term durability and reliability.

This model supports AC/DC voltage measurements, AC/DC current, resistance, capacitance, frequency, duty cycle, temperature measurement (with included probe), diode test, and continuity testing. Its advanced NCV sensor makes it a safe tool for detecting live wires without direct contact, reducing risk during troubleshooting tasks.

The UT890D+ is widely used by electronics repair centers, HVAC technicians, automotive electricians, field engineers, and university labs. Its combination of precision, rugged build, and affordability makes it one of the most popular digital multimeters in the UNI-T lineup.

Data Sheet (Specifications)

• Model: UNI-T UT890D+

• Display Count: 6000

• DC Voltage Range: 0 – 1000V

• AC Voltage Range: 0 – 750V

• DC Current Range: 0 – 20A

• AC Current Range: 0 – 20A

• Resistance Range: 0 – 60MΩ

• Capacitance Range: 0 – 100mF

• Frequency / Duty Cycle: Supported

• Temperature Measurement: -40°C to 1000°C (with probe)

• True RMS: Yes

• NCV Detection: Yes

• Continuity Test: Audible buzzer

• Diode Test: Supported

• Auto Range: Yes

• Safety Rating: CAT III 1000V

• Backlight: Yes

• Power Supply: 9V battery (6F22)

• Dimensions: Approx. 190 × 90 × 50 mm

• Weight: Approx. 350g
