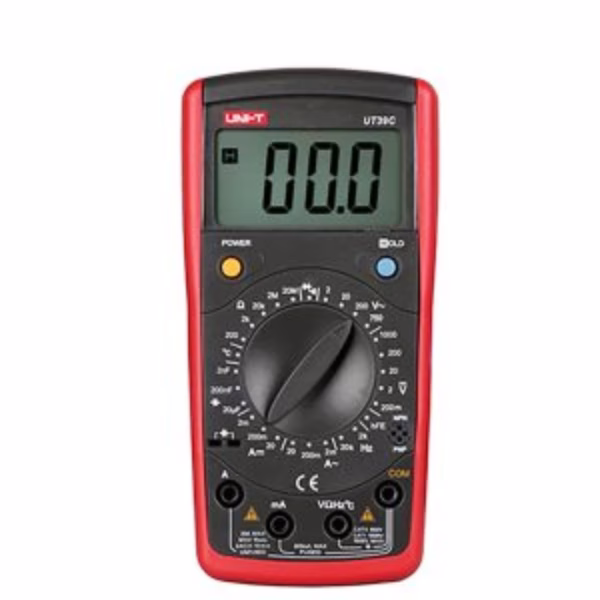

UT39C Modern Digital Multimeter
1.080,00 EGP
ملتيميتر UT39C الرقمي ملتيميتر حديث من UNI-T بيغطي فولت تيار مستمر لحد 1000 فولت ومتردد لحد 750 فولت، مع كشف NCV وفلترة فولت شبح LoZ مدمجة. | The UT39C digital multimeter is a modern multimeter from UNI-T covering DC voltage up to 1000V and AC voltage up to 750V, with NCV detection and LoZ ghost-voltage filtering built in.
UT39C Modern Digital Multimeter
The UT39C digital multimeter is a modern multimeter from UNI-T covering DC voltage up to 1000V and AC voltage up to 750V, with NCV detection and LoZ ghost-voltage filtering built in.
UT39C digital multimeter – How It Works
Its LoZ (low impedance) mode filters out the “ghost voltage” that a standard high-impedance meter can pick up from nearby wiring on an unloaded circuit, giving a cleaner true-or-false live reading. Combined with NCV detection and AC/DC current measurement up to 10A, it covers the core checks a technician reaches for on standard residential and light industrial wiring.
Rated CAT III 600V, it strikes a balance between everyday practicality and the safety margin needed for real electrical panels rather than bench-only electronics work.
Key Features
- DC voltage up to 1000V, AC voltage up to 750V
- AC/DC current up to 10A
- LoZ ghost-voltage filtering
- NCV detection, CAT III 600V
Typical Applications
- Residential and light industrial wiring checks
- Filtering false ghost-voltage readings
- Non-contact live-wire safety sensing
Specifications
- Voltage: DC 1000V, AC 750V
- Current: AC/DC up to 10A
- Feature: LoZ ghost-voltage filter, NCV
- Safety: CAT III 600V
Getting Accurate Readings
Before taking any measurement, confirm the test leads sit in the correct input jacks for the function selected, because leaving a lead in the current jack while measuring voltage is the single most common way a meter’s internal fuse gets blown. Start on the highest range when the expected value is unknown, then step down until the display shows useful resolution.
Keep the probe tips clean and check the leads for cracked insulation regularly, since a damaged lead is both a safety risk and a source of unstable readings. Replace the battery as soon as the low-battery indicator appears, because a weak cell can quietly skew resistance and continuity results well before the meter shuts down completely.
Reference: multimeter ghost-voltage filtering — browse our full range of UNI-T measuring instruments.
UT39C Modern Digital Multimeter
ملتيميتر UT39C الرقمي ملتيميتر حديث من UNI-T بيغطي فولت تيار مستمر لحد 1000 فولت ومتردد لحد 750 فولت، مع كشف NCV وفلترة فولت شبح LoZ مدمجة.
UT39C digital multimeter – إزاي شغالة
وضع LoZ (ممانعة منخفضة) بيفلتر “الفولت الشبح” اللي جهاز عادي عالي الممانعة ممكن يلتقطه من توصيلات قريبة على دائرة من غير حمل، وده بيدي قراءة حي/مش حي أوضح وأصح. مع كشف NCV وقياس تيار متردد/مستمر لحد 10 أمبير، بيغطي الفحوصات الأساسية اللي الفني بيلجأ لها على توصيلات منزلية وصناعية خفيفة قياسية.
مصنف CAT III 600V، بيوازن بين العملية اليومية وهامش السلامة المحتاج للوحات كهربائية حقيقية مش شغل إلكترونيات على المكتب بس.
المواصفات الأساسية
- فولت تيار مستمر لحد 1000 فولت، متردد لحد 750 فولت
- تيار متردد/مستمر لحد 10 أمبير
- فلترة فولت شبح LoZ
- كشف NCV، CAT III 600V
الاستخدامات
- فحص توصيلات منزلية وصناعية خفيفة
- فلترة قراءات فولت شبح خاطئة
- استشعار سلامة لا لامسي للسلك الحي
المواصفات الفنية
- الفولت: تيار مستمر 1000 فولت، متردد 750 فولت
- التيار: متردد/مستمر لحد 10 أمبير
- الميزة: فلتر فولت شبح LoZ، NCV
- السلامة: CAT III 600V
إزاي تاخد قراءات دقيقة
قبل أي قياس، اتأكد إن أسلاك الاختبار متركبة في المقابس الصح للوظيفة المختارة، لأن سيبان سلك في مقبس التيار وانت بتقيس فولت أشهر سبب لحرق الفيوز الداخلي بتاع الجهاز. ابدأ بأعلى مدى لما القيمة المتوقعة مجهولة، وبعدين انزل بالتدريج لحد ما الشاشة تدي دقة مفيدة.
خلي أطراف المسبار نضيفة وافحص الأسلاك من أي تشقق في العزل بانتظام، لأن سلك تالف خطر أمان ومصدر لقراءات غير مستقرة. غير البطارية أول ما مؤشر البطارية الضعيفة يظهر، لأن بطارية ضعيفة ممكن تحرف قراءات المقاومة والاستمرارية من غير ما تحس.
لمزيد من التفاصيل التقنية راجع فلترة الفولت الشبح بالملتيميتر على ويكيبيديا، وتصفح باقي أجهزة قياس UNI-T المتوفرة عندنا.
