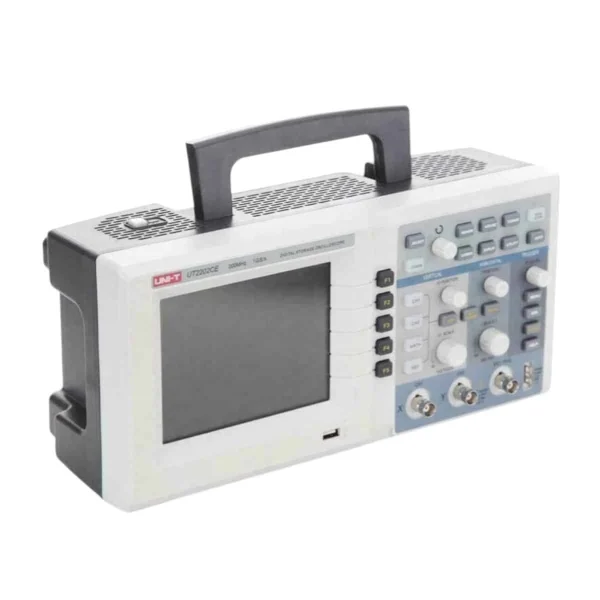

UTD2202CE Digital Oscilloscope

UTD2202CE Digital Oscilloscope

The UTD2202CE Digital Oscilloscope from UNI-T is a powerful and precise measurement tool designed for professionals who demand high accuracy, fast signal capture, and reliable performance. Built with advanced technology and a user-friendly interface, this oscilloscope is ideal for electronics engineers, technicians, and advanced hobbyists working in testing, maintenance, and development.

The UTD2202CE Digital Oscilloscope features a 200MHz bandwidth and a real-time sampling rate of up to 1GSa/s, enabling accurate analysis of high-frequency signals and complex waveforms. Its high waveform capture rate and deep memory ensure that even rare or transient signals are captured without loss.

Key Features:

• Dual-channel input for simultaneous signal monitoring

• 200MHz bandwidth for high-speed signal analysis

• Real-time sampling rate up to 1GSa/s

• Large 7-inch TFT LCD display (800×480 resolution)

• Deep memory up to 16Mpts for extended waveform recording

• Fast waveform capture rate for detecting transient events

• Advanced trigger modes: Edge, Pulse, Video, Slope, Alternate

• Built-in FFT function for frequency domain analysis

• USB Host & Device connectivity for data transfer and storage

Advanced Performance:

The UTD2202CE Digital Oscilloscope is designed to provide high stability and precision during measurements. With its deep memory and fast sampling capabilities, users can capture detailed waveform information over longer periods without compromising accuracy.

Its intuitive interface allows quick access to measurement tools, automatic functions, and waveform analysis features. The FFT function enables users to analyze signals in the frequency domain, making it suitable for audio analysis, power electronics, and communication systems.

Applications:

• Electronics repair and troubleshooting

• Embedded systems and Arduino development

• Power supply and inverter testing

• Automotive electronics diagnostics

• Signal analysis in communication systems

• Educational labs and technical training

Datasheet Specifications:

• Model: UTD2202CE

• Bandwidth: 200MHz

• Channels: 2

• Sampling Rate: 1GSa/s (Real-time)

• Memory Depth: up to 16Mpts

• Waveform Capture Rate: High-speed acquisition

• Vertical Sensitivity: 2mV/div – 5V/div

• Time Base Range: 2ns/div – 50s/div

• Display: 7-inch TFT LCD (800×480)

• Trigger Modes: Edge, Pulse, Video, Slope, Alternate

• Interfaces: USB Host, USB Device

• Power Supply: 100–240V AC

• Weight: Approx. 3kg
