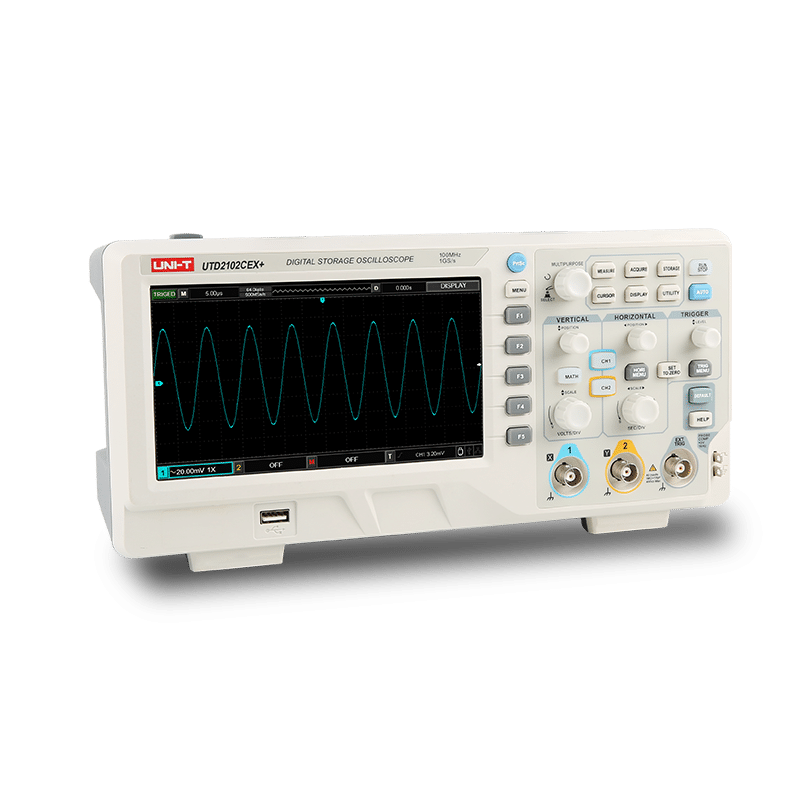

UNI-T UTD2102CEX+ Digital Storage Oscilloscope 100MHz 2 Channel
15.581,50 EGP
This product is sold online only.
UNI-T UTD2102CEX+ Digital Storage Oscilloscope 100MHz 2 Channel
Product Overview
The UNI-T UTD2102CEX+ Digital Storage Oscilloscope 100MHz 2 Channel is a high-performance, dual-channel oscilloscope engineered for precise waveform capture and signal analysis. With a 100MHz bandwidth and a 1GSa/s real-time sampling rate, it ensures fast and accurate signal acquisition across a wide range of electronic testing applications. Moreover, this model combines advanced digital technology with an intuitive interface, making it ideal for engineers, researchers, educators, and electronics enthusiasts alike.
In addition, the UNI-T UTD2102CEX+ Digital Storage Oscilloscope 100MHz 2 Channel features a large 7-inch color TFT display, offering excellent visibility and clarity for waveform observation. It supports multiple trigger modes, math functions, and automatic measurements, enabling efficient circuit debugging, research, and performance validation in both laboratory and industrial environments.
Key Features
-
High Bandwidth & Sampling Rate: The UNI-T UTD2102CEX+ Digital Storage Oscilloscope 100MHz 2 Channel provides 100MHz bandwidth and 1GSa/s sampling for accurate signal reproduction.
-
Dual Input Channels: Two independent channels allow simultaneous waveform monitoring and comparison.
-
7-inch Color TFT Display: High-resolution 800×480 screen ensures sharp waveform visualization and easy operation.
-
Multiple Trigger Modes: Edge, pulse, video, slope, and alternative triggers for capturing complex signals.
-
Comprehensive Measurement Functions: Offers 32 automatic measurements such as frequency, RMS, period, and duty cycle.
-
Advanced Math Operations: Includes FFT, addition, subtraction, multiplication, and division for signal processing and spectrum analysis.
-
High Storage Depth: 64 kpts memory depth enables detailed waveform analysis without data loss.
-
Fast Waveform Refresh Rate: Up to 2,000 wfms/s ensures real-time signal monitoring.
-
USB Connectivity: Supports waveform storage, data transfer, and PC software control.
-
Compact, Durable & Reliable: Sturdy design suitable for lab use, teaching, or industrial maintenance applications.
Applications
-
Research and development labs
-
Electronic circuit design and verification
-
Educational and training institutions
-
Communication system testing and analysis
-
Power electronics and embedded system debugging
-
Repair, maintenance, and production testing
Therefore, it provides engineers and technicians with a dependable, user-friendly, and high-performance measurement solution for all waveform observation needs.
Technical Specifications (Data Sheet)
| Parameter | Specification |
|---|---|
| Model | UNI-T UTD2102CEX+ |
| Bandwidth | 100 MHz |
| Sampling Rate | 1 GSa/s |
| Channels | 2 |
| Vertical Resolution | 8-bit |
| Vertical Sensitivity | 2 mV/div – 10 V/div |
| Time Base Range | 2 ns/div – 50 s/div |
| Record Length | 64 kpts |
| Trigger Modes | Edge, Pulse, Video, Slope, Alternative |
| Automatic Measurements | 32 parameters |
| Math Functions | FFT, Add, Subtract, Multiply, Divide |
| Display | 7-inch color TFT LCD (800×480) |
| Waveform Update Rate | 2,000 wfms/s |
| USB Interface | Device/Host for PC connection and data storage |
| Power Supply | AC 100–240V, 50/60Hz |
| Dimensions | Approx. 306 × 147 × 122 mm |
| Weight | ≈ 2.2 kg |
| Operating Temperature | 0°C – 40°C |
| Safety Rating | CAT II 300V |
Safety & Usage Notes
-
Always ground the oscilloscope before connecting to live circuits.
-
Avoid exceeding the rated input voltage to prevent damage.
-
Use high-quality probes for accurate measurement results.
-
Ensure adequate ventilation during extended operation.
-
Perform regular calibration for sustained accuracy and stability.
Summary
In conclusion, delivers exceptional precision, speed, and reliability in a compact and easy-to-use design. As a result, it is an ideal instrument for engineers, educators, and students who demand high performance and value in electronic testing. Furthermore, its dual-channel design, advanced math functions, and multiple measurement features make it one of the most capable and affordable oscilloscopes in its class—offering accurate, stable, and efficient waveform analysis for every application.
