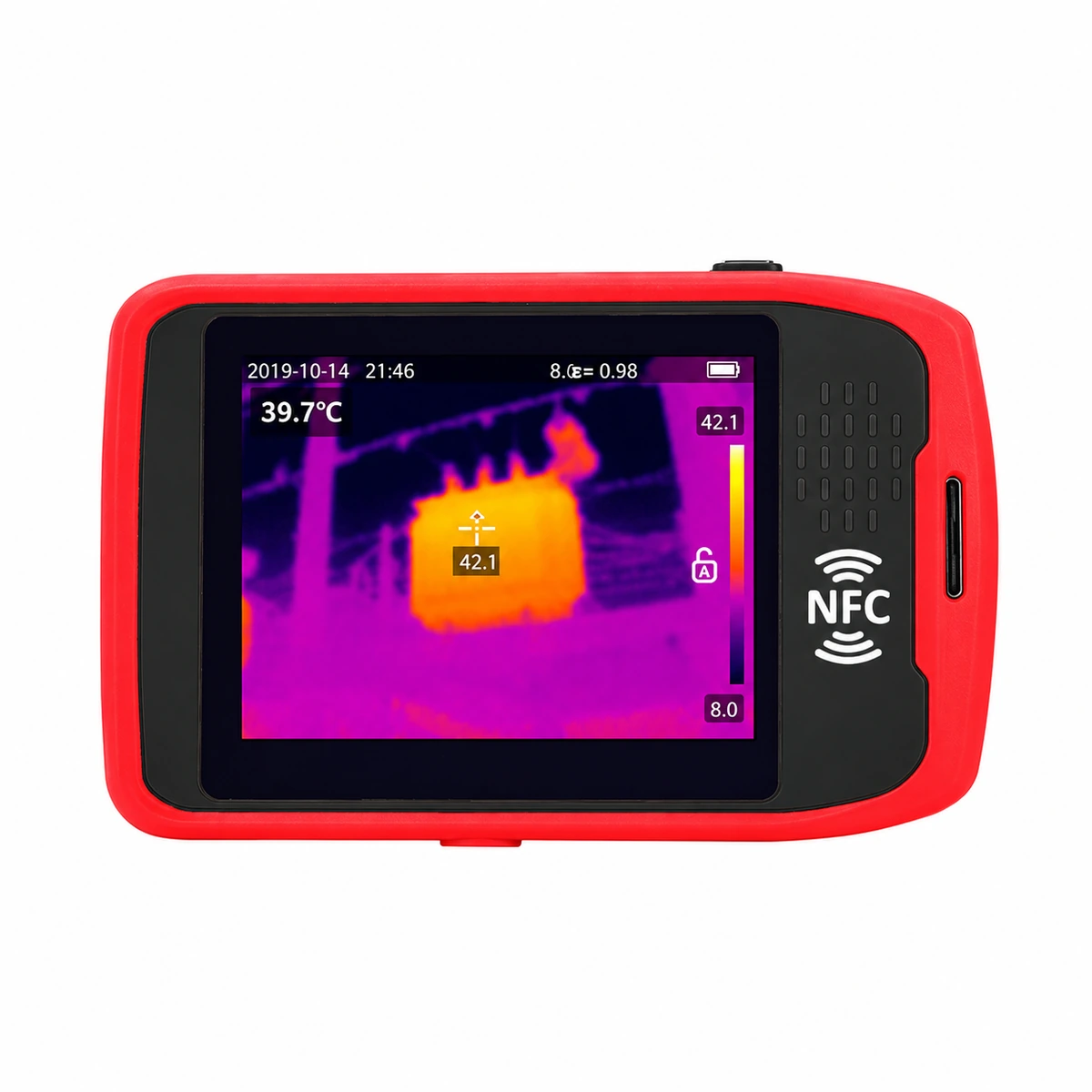

UNI-T UTi720T Portable Thermal Camera

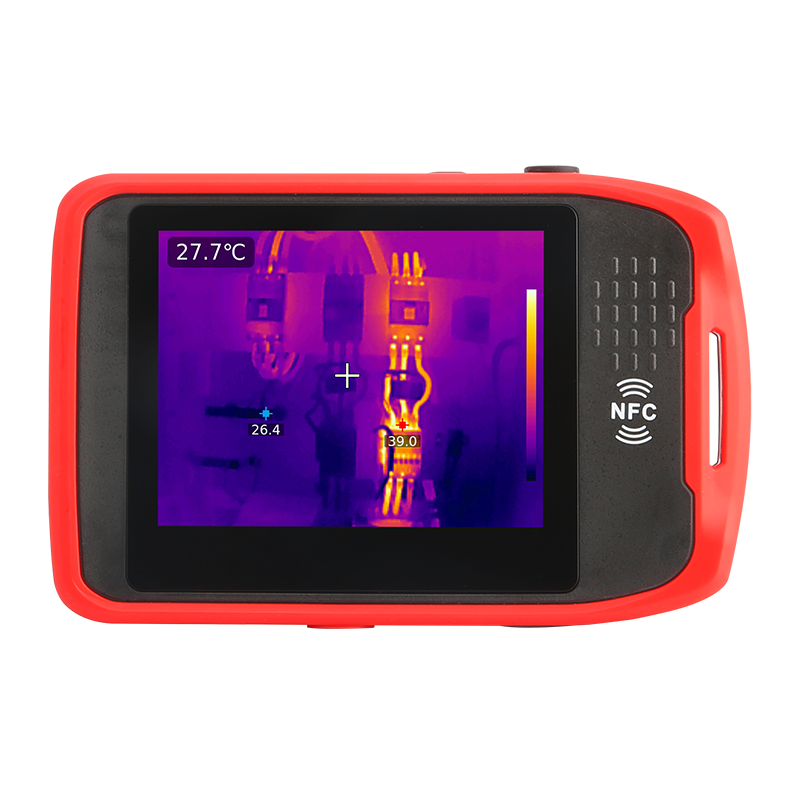

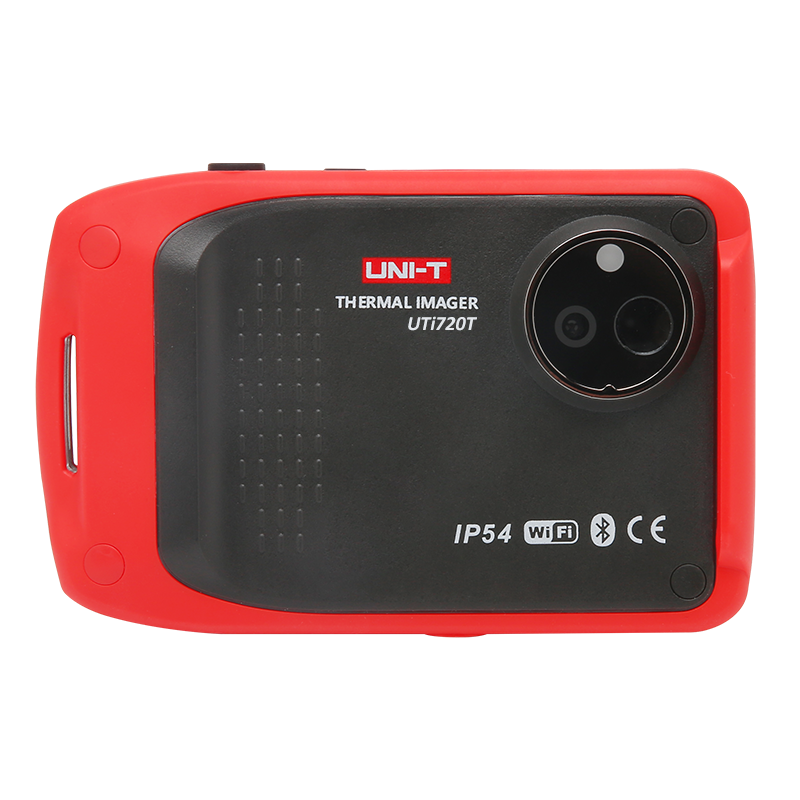

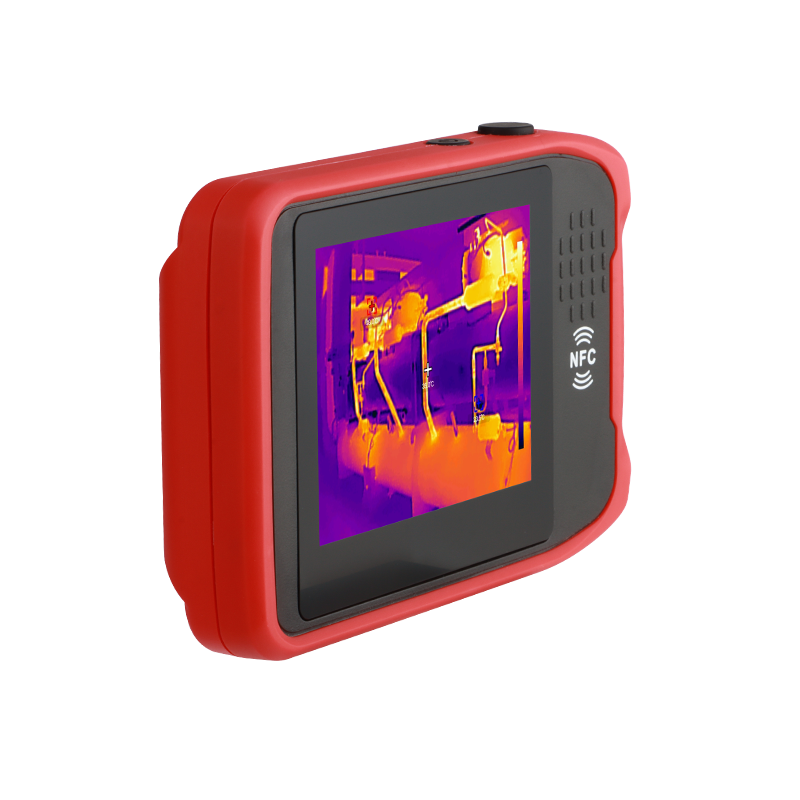

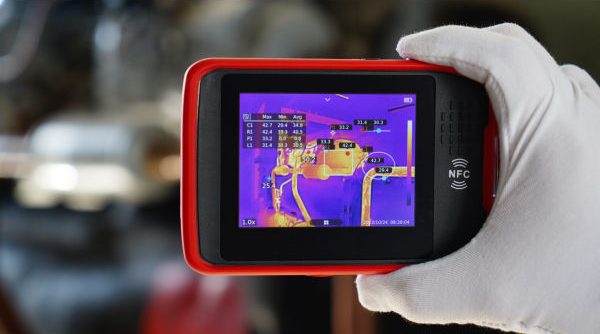

UNI-T UTi720T Portable Thermal Camera The UNI-T UTi720T portable thermal camera is a compact, handheld device engineered for rapid detection of faults across a range of industrial settings. Housed in an ergonomic, palm-sized body, it features a 3.5″ TFT touchscreen (640×480) that provides clear, intuitive control over thermal imaging functions. At its core lies a 256×192 VOx detector (12 µm pixel pitch) capable of capturing temperature differences down to ≤ 50 mK. A focus-free lens and a 56° (H) × 42° (V) field of view enable users to quickly scan large areas for hotspots without manual refocusing. The UTi720T can measure temperatures from –20 °C up to 550 °C with an accuracy of ± 2 °C or ± 2 % (whichever is greater), making it suitable for HVAC inspections, electrical equipment checks, and building diagnostics. On-screen tools including multiple measurement points, lines, rectangles, and circles allow immediate hotspot analysis, while isotherm modes (Auto, Manual, Above, Below, Section, Ratio) help isolate specific temperature bands. Integrated Wi-Fi (paired via NFC) and Bluetooth allow seamless data transfer to the companion app for further analysis, and a built-in LED flashlight plus buzzer facilitate work in low-light conditions. Running on a rechargeable 1800 mAh Li-ion battery (≥ 2.2 hours runtime with Wi-Fi off) and backed by IP54/1 m drop protection, the UTi720T is designed for field technicians who need a reliable, all-in-one thermal solution. Features: Ergonomic, palm-sized housing with focus-free lens. 3.5″ capacitive TFT touchscreen (640 × 480). 256 × 192 IR detector (12 µm pixel size) capturing ≤ 50 mK sensitivity. 56° (H) × 42° (V) field of view for wide-area scanning. Temperature measurement range –20 °C to 550 °C (± 2 °C or ± 2 %). On-screen analyzer: 5 measurement points, 1 line, 3 rectangles, 3 circles. Multiple isotherm modes (Auto, Manual, Above, Below, Section, Ratio). Hi/Lo temperature alarm with LCD animation, LED flashlight, and buzzer. 2 MP visible-light camera with 1–8× continuous digital zoom. Video recording (.avi) and still-image capture (JPG). Integrated Wi-Fi (connect via NFC) and Bluetooth for seamless app connectivity. Rechargeable 1800 mAh Li-ion battery (≥ 2.2 hours runtime with Wi-Fi off). IP54 rating and 1 m drop proof for rugged field use. Specifications: Parameter UTi720T Specification Display: 3.5″ TFT Touch (640 × 480) IR Resolution (Pixels): 256 × 192 Pixel Size: 12 µm Frame Rate: ≤ 25 Hz Thermal Sensitivity (NETD): ≤ 50 mK @ 25 °C Detector Type: UFPA Vanadium Oxide (VOx) Field of View (FOV): 56° (H) × 42° (V) Lens: Focus Free Temperature Range: –20 °C to 550 °C Temperature Accuracy: ± 2 °C or ± 2 % (whichever is greater, –20 °C to 550 °C) Color Palettes: White Hot; Black Hot; Red Hot; Ironbow; Lava; Rainbow; Rainbow HC Image Modes: Thermal; Visual image; Fusion (T-Mix); Picture-in-Picture (PIP) On-Screen Analyzer: 5 Points; 1 Line; 3 Rectangles; 3 Circles Isotherm Modes: Auto; Manual; Above; Below; Section; Ratio Hi/Lo Alarm & Tracking: LCD animation; LED flashlight; Buzzer; Hi/Lo tracking enabled Visible-Light Camera: 2 MP (640 × 480) Digital Zoom: 1.0 – 8× continuous Video Recording: √ (.avi format) Wi-Fi: √ (NFC-paired) Bluetooth: √ LED Lighting: √ (built-in LED flashlight) NFC: √ (for seamless Wi-Fi pairing) Analysis Software: PC + App (via Wi-Fi/Bluetooth) Battery: 1800 mAh rechargeable Li-ion (≥ 2.2 hours runtime with Wi-Fi off) Storage: 12 GB internal Image Format: JPG Video Format: .avi Protection: IP54; 1 m drop proof Certificates: CE; FCC; RoHS Languages: EN; FR; DE; ES; IT; SV; PL; CZ Weight: 213 g Dimensions: 133.05 mm × 85.4 mm × 24.1 mm Applications: Automotive Inspection. HVAC Mechanical Maintenance. PCB Performance Testing.
