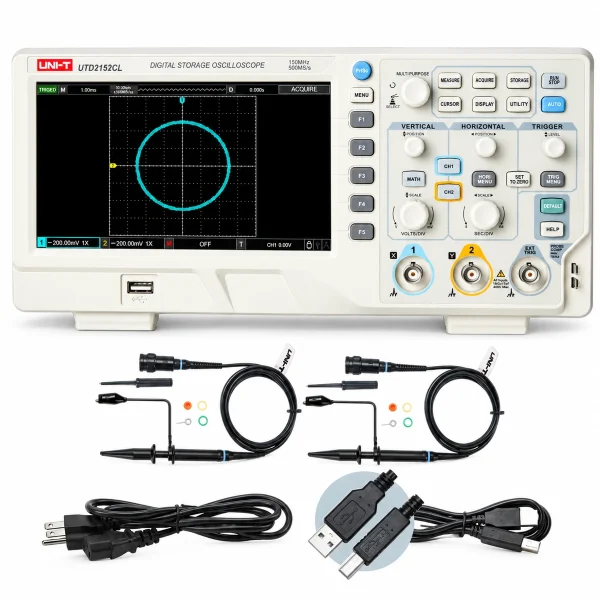

UTD2152CL UNI-T Digital Storage Oscilloscope 150MHz

UTD2152CL UNI-T Digital Storage Oscilloscope 150MHz

The UTD2152CL Digital Storage Oscilloscope is a professional bench-type oscilloscope designed for accurate waveform analysis in electronics labs, industrial environments, and educational applications. Engineers, technicians, and students use this device to observe signals, analyze circuits, and troubleshoot electronic systems efficiently. As a result, the UTD2152CL Digital Storage Oscilloscope provides a strong balance between performance, reliability, and cost.

Moreover, the UTD2152CL Digital Storage Oscilloscope features a 150 MHz bandwidth, making it suitable for analyzing higher-frequency signals compared to entry-level models. This allows accurate testing in applications such as communication circuits, embedded systems, and power electronics.

In addition, the oscilloscope offers a real-time sampling rate of 500 MSa/s, which ensures reliable waveform capture and signal visualization. Because of this, users can clearly observe signal transitions, noise, and distortions during testing.

Furthermore, the device includes dual analog input channels, allowing simultaneous monitoring of two signals. This feature is essential for comparing waveforms, analyzing timing differences, and debugging complex circuits efficiently.

Another important advantage is the 64 kpts memory depth, which enables the oscilloscope to store more waveform data for detailed analysis. In addition, the device provides a waveform capture rate up to 5000 wfms/s, helping users detect transient signals quickly.

The UTD2152CL Digital Storage Oscilloscope also features a 7-inch color TFT display (800×480), providing clear waveform visualization and easy navigation through measurement functions. Therefore, technicians can quickly adjust settings and analyze signals without difficulty.

In addition, the oscilloscope supports advanced functions such as FFT analysis, XY mode, automatic measurements (30+ parameters), and multiple trigger modes. These capabilities make it a complete tool for professional signal analysis, troubleshooting, and education.

Because of its powerful specifications and user-friendly design, the UTD2152CL Digital Storage Oscilloscope is widely used in electronics repair, R&D, industrial maintenance, communication testing, and training labs.

Key Features

• 150 MHz Bandwidth
  Suitable for high-frequency signal analysis.

• 500 MSa/s Sampling Rate
  Provides accurate waveform capture.

• Dual Channel Input
  Allows monitoring of two signals simultaneously.

• 64 kpts Memory Depth
  Stores more waveform data for detailed analysis.

• 7-Inch TFT LCD Display
  Clear and easy waveform visualization.

• FFT & Math Functions
  Supports advanced signal analysis.

• Multiple Trigger Modes
  Ensures precise signal capture.

• USB Connectivity
  Enables data transfer and waveform storage.

Applications

The UTD2152CL Digital Storage Oscilloscope is commonly used in:

• Electronic circuit troubleshooting

• Embedded systems development

• Communication signal analysis

• Power electronics testing

• Laboratory experiments and education

• Industrial equipment maintenance

Technical Specifications (Datasheet)

• Model: UNI-T UTD2152CL

• Product Type: Digital Storage Oscilloscope (DSO)

• Bandwidth: 150 MHz

• Channels: 2 Channels

• Sampling Rate: 500 MSa/s

• Memory Depth: 64 kpts

• Waveform Capture Rate: 5000 wfms/s

• Rise Time: ≤ 2.4 ns

• Vertical Resolution: 8-bit

• Vertical Scale: 1 mV/div – 20 V/div

• Time Base: 2 ns/div – 50 s/div

• Display: 7-inch TFT LCD (800×480)

• Interface: USB Host / Device

• Power Supply: AC 100–240V

• Weight: ≈2.5 kg
