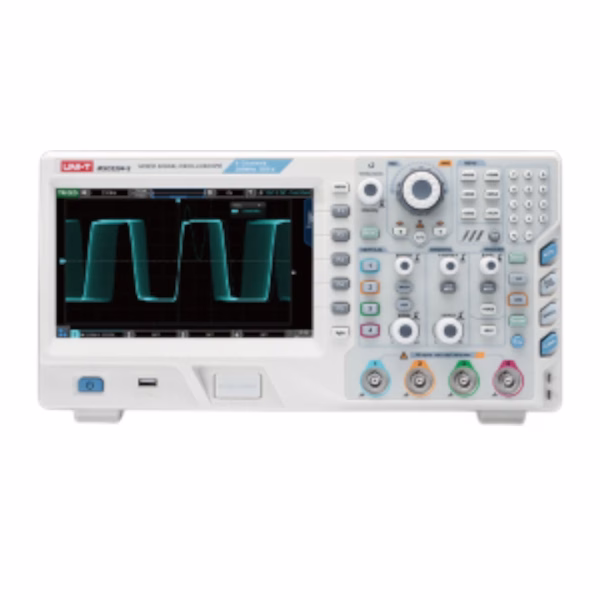

UNI-T UPO2204 Mixed-signal Oscilloscope 4-Channels 200MHz

Product Overview

The UNI-T UPO2204 Mixed-signal Oscilloscope 4-Channels 200MHz is a next-generation digital oscilloscope designed for engineers, technicians, researchers, and students who demand high-speed signal acquisition and multi-channel precision analysis. This advanced model combines 4 analog channels with mixed-signal capability, making it ideal for diagnosing embedded systems, MCU applications, communication buses, power electronics, and automation projects.

Key Features & Advantages

• High Bandwidth & Sampling Performance

  • 200 MHz bandwidth ensures accurate measurement of high-speed waveforms.

  • Up to 2 GSa/s real-time sampling rate enables detailed waveform capture without distortion.

• 4-Channel Mixed-Signal Architecture

  • Provides simultaneous analysis for multiple signals.

  • Ideal for debugging digital + analog circuits at the same time.

  • Great for microcontroller, sensor interface, and I/O monitoring projects.

• Powerful Display & Storage

  • Large 8-inch high-resolution screen for clear waveform visualization.

  • Fast waveform refresh rate with deep memory depth to capture long-duration events.

  • Internal storage, snapshot, and support for USB flash drives.

• Advanced Measurement Tools

  • Supports 34+ automatic measurement functions.

  • Includes FFT spectrum analysis, digital decoding, and math operations.

  • Supports multiple bus decoding formats (UART, CAN, SPI, I²C — depending on model firmware).

• Intuitive User Interface

  • Easy menu navigation and shortcut keys for quick test workflow.

  • Designed to reduce setup time and improve productivity.

Ideal Applications

• Research laboratories

• Embedded systems development

• IoT, robotics, and automation projects

• Fault tracing in SMPS and power electronics

• Education, training, and technical learning centers

delivers the perfect balance between performance, precision, and cost efficiency, making it one of the most advanced and versatile oscilloscopes in its class.

Data Sheet (Specifications)
