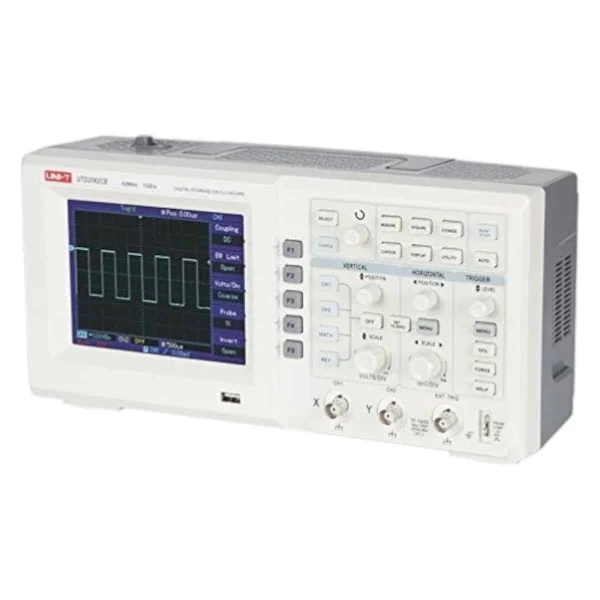

UTD2062CE Oscilloscope

The UTD2062CE Oscilloscope is a professional digital storage oscilloscope designed for accurate signal analysis in electronics laboratories, industrial maintenance, and educational environments. Engineers, technicians, and students commonly use this instrument to observe waveform signals, measure electrical parameters, and troubleshoot electronic circuits. As a result, the UTD2062CE Oscilloscope provides reliable performance for diagnosing circuit behavior and analyzing signal characteristics.

Moreover, the UTD2062CE Oscilloscope features a 60 MHz bandwidth, which allows it to capture and analyze medium-frequency electronic signals accurately. This capability makes the device suitable for testing signals in embedded systems, power electronics, communication circuits, and microcontroller-based designs.

In addition, the oscilloscope offers a real-time sampling rate of up to 1 GS/s, enabling precise capture of fast signal transitions. Because of this high sampling rate, engineers can observe waveform details and identify signal distortions or timing issues during circuit testing.

Furthermore, the UTD2062CE Oscilloscope includes two input channels, allowing users to monitor and compare two signals simultaneously. This dual-channel capability is essential for analyzing signal relationships such as phase difference, timing synchronization, and waveform interaction in electronic circuits.

Another important feature of the oscilloscope is its 7-inch color TFT LCD display, which provides clear waveform visualization and intuitive menu navigation. The display helps technicians analyze waveform shapes and measurement results easily during signal testing.

The device also supports automatic measurement functions, allowing users to measure voltage, frequency, duty cycle, rise time, and other parameters automatically. These built-in measurement tools significantly simplify waveform analysis and improve troubleshooting efficiency.

In addition, the UTD2062CE Oscilloscope includes advanced functions such as trigger modes, waveform storage, mathematical waveform analysis, and USB connectivity. These capabilities make the oscilloscope suitable for electronic research, development, and system maintenance.

Because of its reliable performance and user-friendly design, the UTD2062CE Oscilloscope is widely used in electronics laboratories, industrial equipment maintenance, communication system testing, educational training, and product development.

Key Features

• 60 MHz Bandwidth
  Suitable for analyzing medium-frequency electronic signals.

• 1 GS/s Real-Time Sampling Rate
  Captures fast signal transitions accurately.

• Dual Channel Input
  Allows simultaneous observation of two waveform signals.

• 7-Inch Color TFT LCD Display
  Provides clear and detailed waveform visualization.

• Automatic Measurement Functions
  Measures voltage, frequency, duty cycle, rise time, and other parameters.

• Advanced Trigger System
  Improves waveform capture accuracy.

• USB Connectivity
  Enables waveform storage and data transfer.

• Compact Desktop Design
  Suitable for laboratory and workshop environments.

Applications

The UTD2062CE Oscilloscope is commonly used in many electronic testing applications such as:

• Electronic circuit debugging

• Embedded system signal analysis

• Power electronics testing

• Communication signal analysis

• Laboratory experiments and education

• Industrial equipment maintenance

Technical Specifications (Datasheet)

• Model: UNI-T UTD2062CE

• Product Type: Digital Storage Oscilloscope (DSO)

• Bandwidth: 60 MHz

• Channels: 2 Channels

• Real-Time Sampling Rate: 1 GS/s

• Memory Depth: Up to 25 kpts

• Vertical Resolution: 8-bit

• Display: 7-inch TFT LCD (800 × 480)

• Trigger Modes: Edge, Pulse, Video, Alternate

• Automatic Measurements: 32 measurement types

• Interface: USB Host / USB Device

• Power Supply: AC 100–240 V, 50/60 Hz

• Dimensions: 306 × 147 × 122 mm

• Weight: ≈2.2 kg
