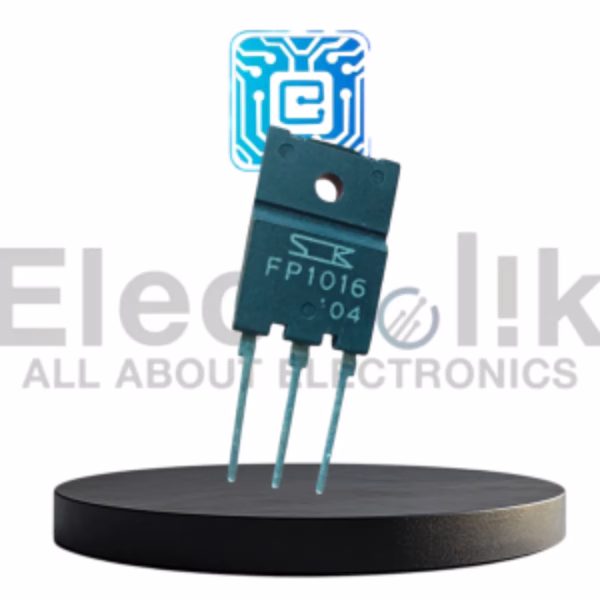

Transistor FP1016 PNP 8A 160V

Description:Transistor FP1016 PNP 8A 160V

FP1016 Transistor is a high-efficiency PNP bipolar power transistor specifically designed for switching, amplification, and power control applications that demand excellent reliability and high current capability. The FP1016 Transistor offers strong performance in power amplifiers, voltage regulators, and inverter systems, combining robust electrical characteristics with superior heat dissipation.

With a collector current of 8A and a collector-emitter voltage of 160V, the FP1016 Transistor ensures reliable operation under medium to high voltage conditions. Moreover, it provides low collector-emitter saturation voltage, high DC gain, and fast switching response, making it ideal for circuits where power efficiency and stability are crucial. Therefore, it is well-suited for both industrial and consumer-grade applications that require precise and consistent performance.

Additionally, the FP1016 Transistor is built using epitaxial planar technology, ensuring excellent linearity, high-speed switching, and long-term durability. Its TO-220 package design offers efficient heat dissipation and easy mounting for compact power systems. Furthermore, its low power loss and stable thermal behavior make it an optimal choice for high-efficiency circuit designs.

Key Features:

• PNP Power Transistor: Optimized for high-current and medium-voltage applications.

• High Collector Current: Supports up to 8A continuous operation.

• Collector-Emitter Voltage: Operates up to 160V efficiently.

• Low Saturation Voltage: Improves power efficiency and reduces heat.

• High DC Gain (hFE): Provides stable signal amplification.

• Fast Switching Capability: Suitable for dynamic power circuits.

• TO-220 Package: Ensures strong heat dissipation and mechanical durability.

Applications:

• Power amplifiers and audio circuits

• Voltage regulation and stabilization

• Inverter and converter circuits

• Power supply control and switching systems

• Motor driver and automation control applications

• Educational, research, and lab-based projects

Electrical Characteristics (Typical Values):

Advantages:

• High efficiency with low heat generation.

• Fast switching response ideal for precise control circuits.

• Stable and linear amplification with low distortion.

• Reliable thermal management for extended operation.

• Compact and durable package suitable for industrial use.

Summary:

The FP1016 Transistor is a high-performance PNP power transistor capable of handling 8A current and 160V voltage, providing superior energy efficiency and fast response for audio amplifiers, inverters, and control systems. It combines low saturation voltage, high gain, and thermal stability, ensuring durable and accurate performance even in demanding environments.

Consequently, the FP1016 Transistor is the perfect choice for engineers, technicians, and designers who require a reliable, efficient, and high-power transistor for advanced electronic circuits. Therefore, it remains one of the best options for applications needing stability, precision, and power efficiency in a compact, easy-to-use form.
