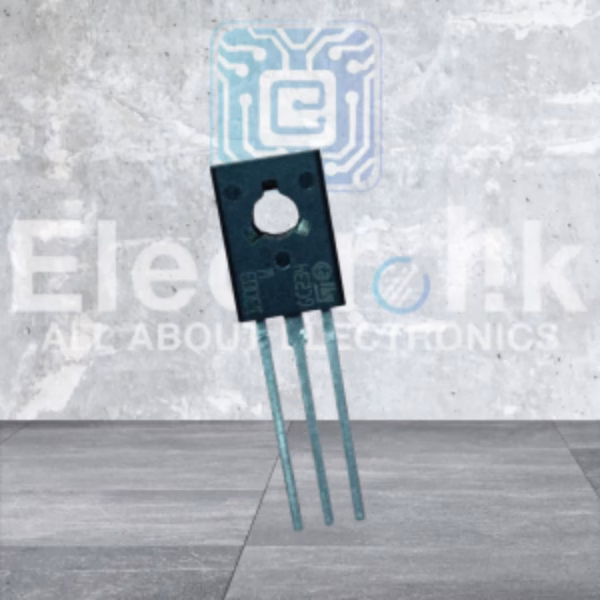

Transistor MJE13003 NPN 1.5A 400V

Description:Transistor MJE13003 NPN 1.5A 400V

The MJE13003 Transistor is a high-voltage NPN bipolar junction transistor (BJT) specifically designed for switching power supply applications, inverter circuits, and energy-efficient lighting systems. Known for its exceptional durability, high breakdown voltage, and fast switching speed, the MJE13003 Transistor provides reliable performance in compact and high-efficiency electronic devices.

Unlike standard transistors, the MJE13003 Transistor can handle up to 1.5A of collector current and sustain a collector-emitter voltage of 400V, making it perfect for circuits that require high voltage tolerance with moderate current handling. Moreover, it features low collector-emitter saturation voltage, which reduces power loss and improves efficiency. Because of its epitaxial planar design, it ensures excellent thermal stability, long life, and consistent switching performance under high-frequency operation.

Furthermore, the MJE13003 Transistor is commonly used in switch-mode power supplies (SMPS), LED drivers, CFL ballasts, and DC-DC converters. It provides fast rise and fall times, enabling efficient energy transfer and reduced switching noise. Additionally, its compact TO-126 or TO-220 package enhances heat dissipation and mechanical durability, making it suitable for both industrial and consumer applications.

Overall, the MJE13003 Transistor stands out as a cost-effective and dependable solution for engineers and designers who need high-voltage capability, fast response, and stable electrical characteristics.

Key Features:

• NPN High-Voltage Transistor: Designed for switching and amplification.

• Collector-Emitter Voltage (Vce): Rated at 400V for excellent voltage tolerance.

• Collector Current (Ic): Supports continuous 1.5A operation.

• Low Saturation Voltage: Ensures higher efficiency and minimal energy loss.

• Fast Switching Speed: Perfect for SMPS, inverter, and driver circuits.

• High DC Current Gain (hFE): Provides clean and stable amplification.

• Compact Package: TO-126/TO-220 format with efficient heat dissipation.

Applications:

• Switched Mode Power Supply (SMPS) units

• Compact Fluorescent Lamps (CFL) and LED drivers

• Power inverters and DC-DC converters

• Television and display power circuits

• Battery chargers and control systems

• Industrial and consumer power equipment

Electrical Characteristics (Typical Values):

Advantages:

• Reliable high-voltage performance for demanding applications.

• Low heat generation, leading to longer operational lifespan.

• Stable gain and frequency response for consistent performance.

• Energy-efficient design reduces system power consumption.

• Rugged construction suitable for continuous industrial use.

Summary:

The MJE13003 Transistor is a high-performance NPN transistor with a 400V collector-emitter voltage and 1.5A current capacity, making it an excellent choice for switching and amplification in power supply systems. Moreover, its fast switching speed, low energy loss, and thermal stability ensure outstanding performance in SMPS, inverters, and LED circuits.

In conclusion, the MJE13003 Transistor combines efficiency, durability, and high-voltage operation in a compact form. Whether used in consumer electronics, lighting systems, or industrial devices, it delivers smooth, reliable, and efficient power control that professionals can trust.
