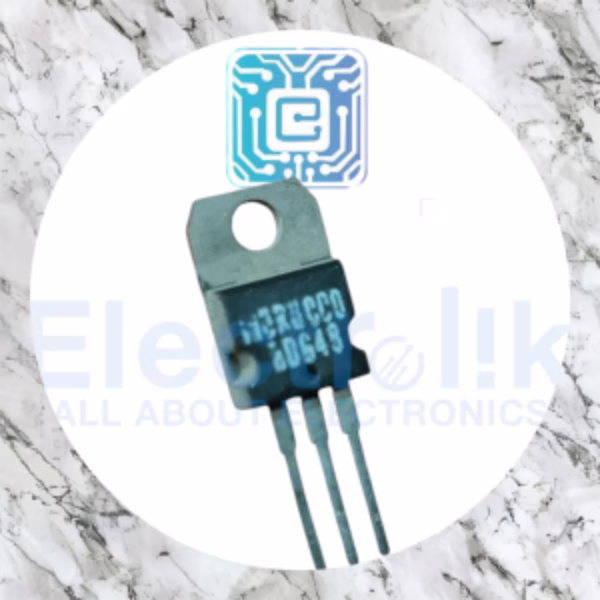

Transistor BD648 PNP 8A 80V

Description:Transistor BD648 PNP 8A 80V

BD648 Transistor is a high-current PNP Darlington power transistor designed for applications that require reliable power amplification and efficient switching performance. The BD648 Transistor combines two transistors in a Darlington configuration, providing very high DC current gain and strong output performance while maintaining low saturation voltage and excellent thermal stability.

With a collector current capacity of 8A and a collector-emitter voltage rating of 80V, the BD648 Transistor is ideal for industrial, audio, and power regulation applications. It delivers consistent performance under high current loads and ensures efficient operation in both continuous and pulse-driven circuits. Manufactured using advanced silicon epitaxial planar technology, it offers excellent linearity, low power loss, and reliable operation under demanding conditions.

Encased in a TO-3P or TO-218 package, the BD648 Transistor provides superior heat dissipation, mechanical robustness, and long-term stability, ensuring dependable operation in high-power designs.

Key Features:

• PNP Darlington Transistor: Offers very high current gain for efficient amplification.

• High Collector Current: Supports up to 8A continuous current.

• High Voltage Rating: Operates safely up to 80V collector-emitter voltage.

• Low Saturation Voltage (Vce(sat)): Reduces energy loss and heat generation.

• Fast Switching Performance: Suitable for power control and amplifier circuits.

• Excellent Thermal Stability: Ensures consistent performance in continuous operation.

• Rugged Package Design: Easy to mount, cool, and integrate into power circuits.

Applications:

• Power amplifiers and driver circuits

• Motor speed control and power regulation systems

• Audio output stages

• Switching regulators and voltage controllers

• Industrial control and automation modules

• Relay and solenoid drivers

Electrical Characteristics (Typical Values):

Advantages:

• High gain and high current operation for demanding power applications.

• Low power dissipation enhances energy efficiency.

• Stable and reliable under high load and temperature stress.

• Durable package design ensures long-term performance.

• Ideal for amplification, control, and power switching circuits.

Summary:

The BD648 Transistor is a robust and efficient PNP Darlington power transistor that provides excellent performance for high-current and medium-voltage applications. With its 8A current capacity and 80V rating, it ensures strong amplification, low losses, and reliable switching for a variety of power circuits. Its rugged TO-3P package, high DC gain, and fast switching capabilities make it suitable for amplifiers, regulators, and industrial control systems. Whether used in power management or audio designs, the BD648 Transistor guarantees high performance, thermal stability, and long-lasting reliability for modern electronic solutions.
