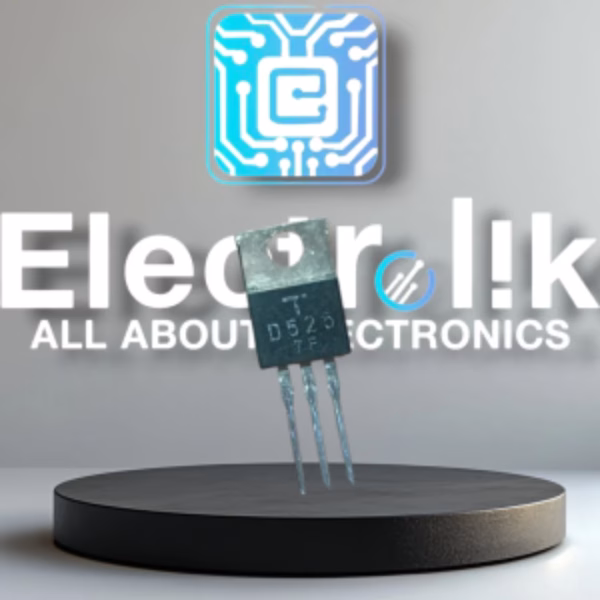

Transistor D525 NPN 5A 100V

Overview:Transistor D525 NPN 5A 100V

The Transistor D525 is a high-power NPN bipolar junction transistor (BJT) engineered for audio amplification, power switching, and voltage regulation applications. It offers a collector current capacity of 5A and a collector-emitter voltage of 100V, making it ideal for circuits that demand strong current flow and high voltage tolerance.
Moreover, the Transistor D525 combines fast switching performance, excellent thermal stability, and low saturation voltage, ensuring reliable operation in industrial, automotive, and electronic amplifier systems.
Consequently, it has become one of the most trusted transistors in medium-to-high power applications where both efficiency and durability are critical.

Key Features

• Transistor Type: NPN

• Collector–Emitter Voltage (V_CEO): 100 V

• Collector–Base Voltage (V_CBO): 120 V

• Emitter–Base Voltage (V_EBO): 5 V

• Collector Current (I_C): 5 A (Continuous)

• Power Dissipation (P_tot): 40 W

• DC Current Gain (h_FE): 40 – 250

• Transition Frequency (f_T): 8 MHz typical

• Package Type: TO-220 for superior heat dissipation

Additionally, the Transistor D525 is built using epitaxial planar technology, which enhances performance and reduces power loss. It delivers efficient current transfer and maintains high reliability under extended load conditions.

Typical Applications

The Transistor D525 is suitable for a wide range of uses, including:

• Audio power amplifiers and driver stages

• Power supply regulators and converters

• Switching circuits for DC motors and relays

• Voltage control and feedback systems

• Complementary pair with B655 transistor (PNP) for push-pull amplifiers

• Industrial automation and lighting control

Furthermore, its fast switching response and wide safe operating area (SOA) make it ideal for amplification, pulse modulation, and switching control circuits in modern designs.

Electrical Characteristics (at T_a = 25 °C)

Advantages

• Handles high current (5A) and high voltage (100V) efficiently.

• Low collector-emitter saturation voltage, enhancing power efficiency.

• Fast switching capability suitable for high-speed circuits.

• Stable thermal characteristics for long-lasting performance.

• Moreover, the Transistor D525 provides excellent linearity and gain stability, making it ideal for precision amplification and regulated power designs.

Summary

In summary, the Transistor D525 is a high-performance NPN transistor offering exceptional durability, high current output, and fast response. Its TO-220 package provides efficient heat dissipation, while its 40W power rating allows it to function reliably under continuous load.
Therefore, whether used in audio systems, industrial drivers, or power switching circuits, the Transistor D525 ensures efficiency, reliability, and long-term stability in every electronic application.
