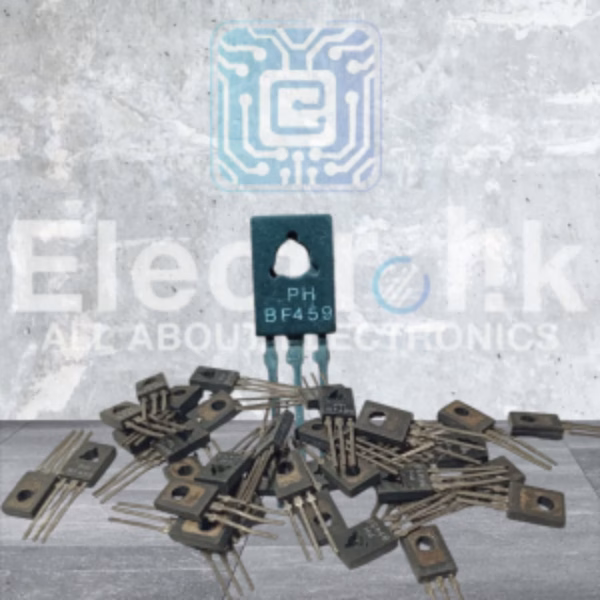

Transistor BF459 NPN 100mA 300V

Description:Transistor BF459 NPN 100mA 300V

The BF459 Transistor is a high-voltage NPN bipolar junction transistor (BJT) specifically designed for signal amplification, high-speed switching, and video frequency applications. With a collector current of 100mA and a collector-emitter voltage of 300V, the BF459 Transistor delivers exceptional performance in high-frequency and low-power circuits, where accuracy, speed, and stability are essential.

The BF459 Transistor is widely used in television deflection stages, RF amplifiers, driver stages, and general-purpose high-voltage circuits. Its epitaxial planar construction provides excellent linearity, low noise output, and superior thermal stability, ensuring reliable operation under varying temperature and load conditions. Moreover, it features a low collector-emitter saturation voltage, which improves energy efficiency and reduces heat generation.

Because of its high transition frequency (fT), typically up to 50 MHz, the BF459 Transistor is ideal for wideband signal processing and fast electronic switching. Additionally, its TO-92 or TO-126 compact package allows easy integration onto PCBs while maintaining good heat dissipation. The transistor’s high DC current gain (hFE) ensures precise and distortion-free signal amplification, making it a reliable choice for both analog and digital designs.

Overall, the BF459 Transistor combines high-voltage capability, fast response time, and consistent performance, making it a trusted solution for engineers working on high-frequency and high-voltage applications.

Key Features:

• NPN High-Voltage Transistor: Designed for low-power, high-speed circuits.

• Collector-Emitter Voltage (Vce): Rated at 300V for superior voltage endurance.

• Collector Current (Ic): Supports up to 100mA continuous load.

• Low Saturation Voltage: Minimizes energy loss and enhances efficiency.

• High Transition Frequency (fT): Up to 50 MHz for fast and stable switching.

• High DC Current Gain (hFE): Ensures clean, distortion-free amplification.

• Compact Package: TO-92/TO-126 housing for easy installation and reliability.

Applications:

• Television vertical and horizontal deflection circuits

• RF signal amplifiers and video frequency circuits

• High-speed switching and pulse generation systems

• Audio and low-power amplifiers

• Control and driver stages in communication systems

• Laboratory and educational electronics projects

Electrical Characteristics (Typical Values):

Advantages:

• High-voltage performance suitable for RF and video frequency systems.

• Fast switching capability ideal for high-frequency operation.

• Excellent gain stability across a wide temperature range.

• Energy-efficient operation with low heat dissipation.

• Reliable thermal stability ensures long-term durability.

• Compact and lightweight design simplifies integration.

Summary:

The BF459 Transistor is a high-voltage, high-speed NPN transistor optimized for signal amplification and fast-switching circuits. With a 300V voltage rating and 100mA current capacity, it delivers smooth, efficient, and stable performance in applications such as television stages, amplifiers, and RF control systems.

In conclusion, the BF459 Transistor stands out for its excellent linearity, high-frequency response, and low noise characteristics, making it a preferred component for professional and industrial-grade electronic designs. Whether you are building high-speed amplifiers, deflection circuits, or signal drivers, this transistor guarantees precision, reliability, and energy efficiency.
