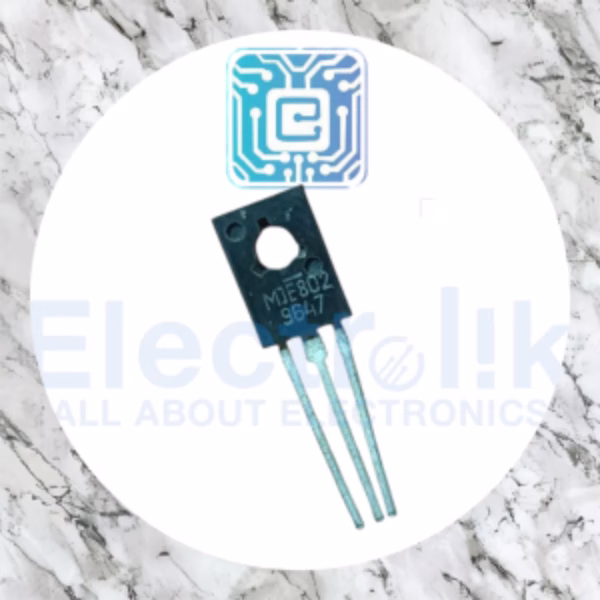

Transistor MJE802 NPN Power 8A 100V

Description:

MJE802 Transistor is a high-performance NPN power transistor designed for power switching, audio amplification, and industrial control systems. The MJE802 Transistor combines excellent electrical performance, fast switching capability, and strong thermal stability, making it a reliable choice for circuits that require both durability and precision.

With a maximum collector current of 8A and a collector-emitter voltage of 100V, the MJE802 Transistor delivers powerful and efficient performance in a wide range of medium to high-power applications. Its silicon epitaxial construction ensures low saturation voltage and high current gain, resulting in reduced power loss and improved efficiency. The transistor’s TO-220 package provides effective heat dissipation and easy integration into various electronic designs.

Key Features:

• High Collector Current: Handles up to 8A continuous current for power-demanding applications.

• High Voltage Rating: Operates up to 100V, suitable for power switching and amplification.

• Low Saturation Voltage: Reduces conduction losses and enhances energy efficiency.

• High DC Current Gain (hFE): Ensures consistent and stable signal amplification.

• Fast Switching Speed: Suitable for high-frequency or pulse applications.

• Excellent Thermal Performance: Maintains stability under elevated temperature conditions.

• Standard TO-220 Package: Simplifies mounting and ensures long-lasting reliability.

Applications:

• Audio power amplifiers and output stages

• DC-DC converters and power regulators

• Motor control and automation systems

• Power supplies and inverter circuits

• Relay and solenoid drivers

• Industrial and automotive electronic systems

Electrical Characteristics (Typical Values):

Advantages:

• High reliability and strong thermal endurance for industrial use.

• Efficient power control with minimal heat generation.

• Fast response for switching and amplification circuits.

• Compact and cost-effective design for general-purpose applications.

• Suitable for professional, hobbyist, and industrial electronic projects.

Summary:

The MJE802 Transistor is a robust and efficient NPN power transistor engineered for high-performance power applications. With its 8A current capacity and 100V voltage tolerance, it offers a reliable solution for amplifiers, converters, and control systems. Its fast switching, high gain, and excellent heat dissipation make it ideal for both linear and switching operations. The MJE802 Transistor is an excellent choice for engineers and technicians seeking durability, precision, and stable performance in demanding power electronics applications.
