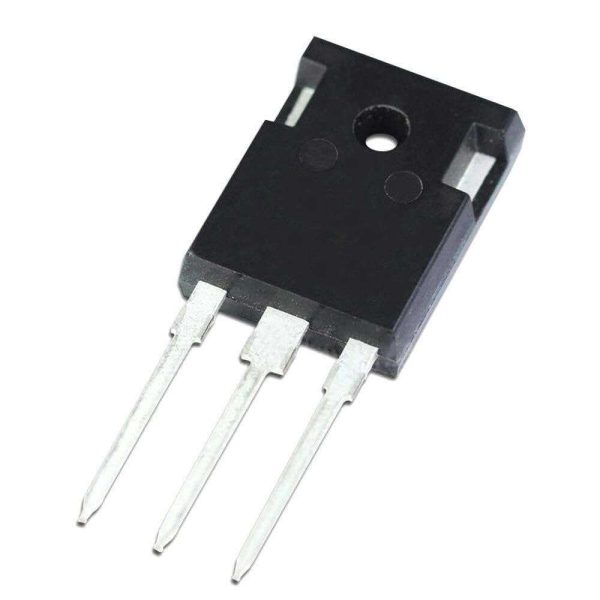

Transistor TIP34C PNP 10A 100V

Description:Transistor TIP34C PNP 10A 100V

The TIP34C Transistor is a high-power PNP bipolar junction transistor (BJT) designed to deliver reliable switching and amplification performance across a wide range of applications. Known for its robust construction and consistent output, the TIP34C Transistor is ideal for audio amplifiers, power regulators, and motor control circuits. With a collector current capacity of 10A and a collector-emitter voltage of 100V, this transistor ensures efficient energy transfer while maintaining excellent thermal stability.

The TIP34C Transistor operates with low collector-emitter saturation voltage, thereby reducing power losses and improving overall efficiency. Furthermore, its high DC current gain (hFE) enables precise signal amplification with minimal distortion. Due to its durable TO-247 package, the TIP34C Transistor can handle high current loads and dissipate heat effectively, ensuring long-term reliability.

Additionally, the TIP34C Transistor performs well in both linear and switching applications. Because of its fast response time, it is frequently used in power supply circuits, output stages of audio amplifiers, and industrial driver modules. Moreover, its wide safe operating area and strong overload tolerance make it suitable for rugged environments and high-demand systems.

Key Features:

• PNP Power Transistor: Engineered for high-current and high-voltage applications.

• Collector-Emitter Voltage (Vce): Rated at 100V for robust performance.

• Collector Current (Ic): Supports up to 10A continuous load.

• Low Saturation Voltage: Enhances energy efficiency and reduces thermal stress.

• High DC Current Gain (hFE): Provides stable and accurate amplification.

• Fast Switching Speed: Ideal for rapid signal control and regulation.

• TO-247 Package: Ensures efficient heat dissipation and long service life.

Applications:

• Audio power amplifiers and speaker drivers

• Power supply regulation and control

• Motor driver and control circuits

• Industrial automation and switching systems

• DC-DC converter output stages

• General-purpose power management

Electrical Characteristics (Typical Values):

Advantages:

• High current handling capacity ensures performance under demanding loads.

• Low power loss design improves efficiency in amplifier and driver circuits.

• Durable and thermally efficient package extends lifespan.

• Stable gain and smooth operation, even at elevated temperatures.

• Compatible with complementary NPN transistor TIP33C, allowing easy pairing.

Summary:

The TIP34C Transistor is a powerful PNP transistor rated at 10A and 100V, designed for high-performance amplification and switching applications. Moreover, it provides excellent linearity, fast response, and reliable operation in both industrial and consumer electronics.

In conclusion, the TIP34C Transistor combines efficiency, durability, and precision to deliver outstanding performance in power amplifiers, regulators, and motor control systems. Because of its robust design and superior electrical properties, it is a trusted choice for engineers and technicians seeking long-lasting, high-quality components for power electronics projects.
