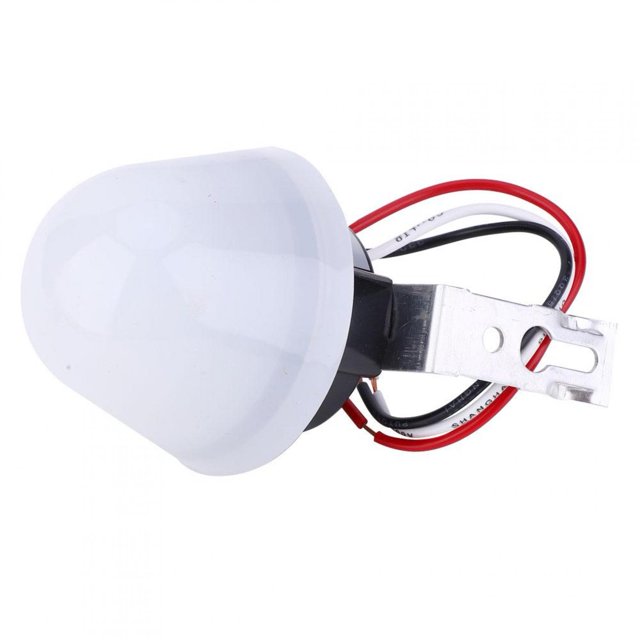

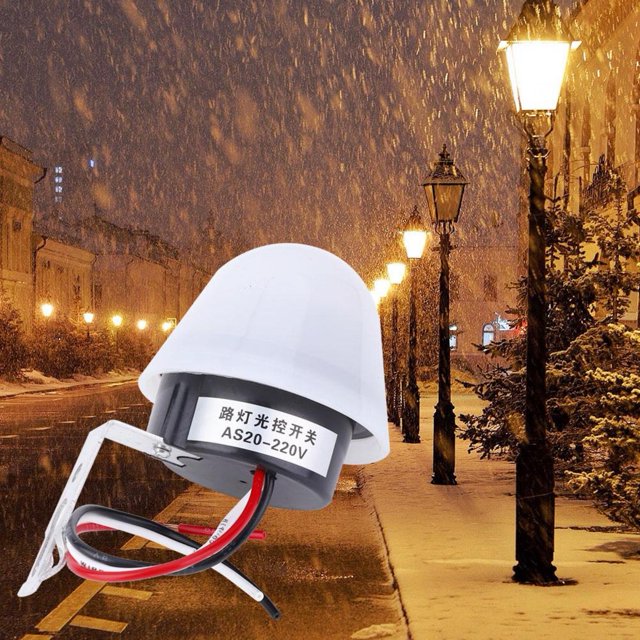

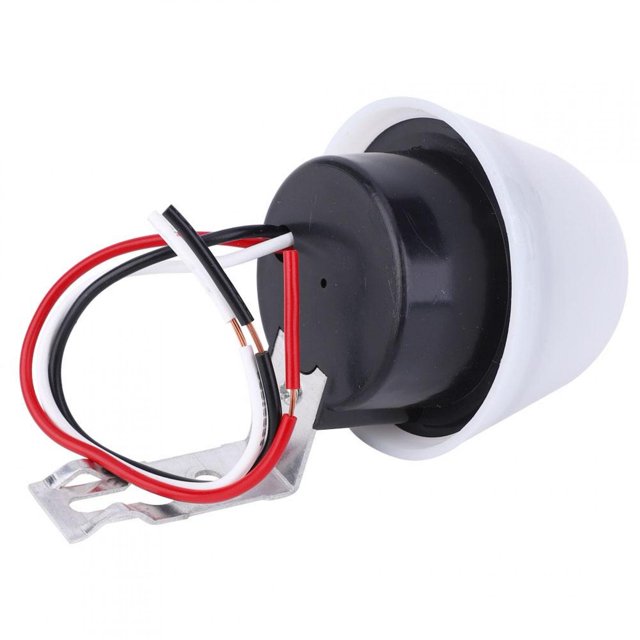

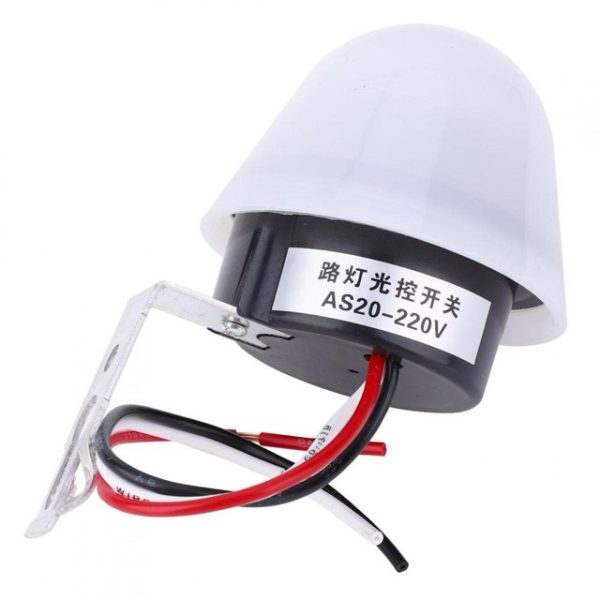

Photo Cell Light Control Switch AC 220V 15A

Photo Cell Light Control Switch AC 220V 15A

The Photo Cell Light Control Switch AC 220V 15A is an intelligent automatic lighting controller designed to switch lights ON at night and OFF during the daytime based on ambient light levels. This device uses a built-in photocell sensor that detects surrounding brightness and controls electrical lighting systems automatically, making it a reliable and energy-efficient solution for modern lighting automation.

The Photo Cell Light Control Switch AC 220V 15A is widely used in outdoor lighting systems such as street lamps, garden lights, building entrances, parking areas, and security lighting installations. By automatically responding to environmental light conditions, the device eliminates the need for manual operation and ensures lighting systems work only when needed.

This automatic sensor switch is especially useful for locations where lights must operate during darkness and remain off during the daytime. It helps reduce electricity consumption, improve convenience, and extend the lifespan of lighting equipment by preventing unnecessary operation.

With its durable construction and high current capacity, this photocell switch can safely control larger lighting loads compared to standard sensors, making it suitable for both residential and commercial lighting systems.

Key Features

• Automatic Dusk to Dawn Operation
  Detects natural light levels and automatically switches lights ON at night and OFF during the daytime.

• High Load Capacity (15A)
  Supports higher electrical loads than standard photocell switches, allowing control of multiple lamps or higher wattage lighting fixtures.

• Energy Efficient Lighting Control
  Reduces electricity consumption by ensuring lights operate only when ambient light levels drop below the preset threshold.

• Reliable Photocell Sensor Technology
  Equipped with a sensitive light detection component that ensures accurate switching performance.

• Weather Resistant Housing
  Built with durable materials suitable for outdoor environments and long-term operation.

• Wide Lighting Compatibility
  Compatible with LED lamps, street lights, garden lights, floodlights, and other outdoor lighting systems.

• Maintenance Free Operation
  Once installed, the system works automatically without the need for adjustments or manual switching.

Common Applications

The Photo Cell Light Control Switch AC 220V 15A is commonly used in various lighting automation systems including:

• Street lighting control systems

• Outdoor garden and landscape lighting

• Parking lot illumination systems

• Security perimeter lighting

• Billboard and advertising lighting

• Industrial outdoor lighting systems

• Residential entrance and pathway lighting

This device is ideal for electricians, contractors, and technicians who install lighting systems that require automatic operation and reliable performance.

Installation Overview

The installation of  is simple and straightforward. Proper wiring ensures stable and safe operation.

Basic connection steps include:

• Connect the Live (L) input from the AC 220V power source.

• Connect the Load output to the lighting fixture.

• Connect the Neutral (N) wire to complete the circuit.

• Install the sensor in a location where it can clearly detect daylight and night conditions.

Correct positioning is important to avoid interference from nearby artificial light sources.

Technical Specifications (Datasheet)

• Product Type: Photo Cell Light Control Switch

• Operating Voltage: AC 220V – 240V

• Maximum Load Current: 15A

• Frequency: 50 / 60 Hz

• Sensor Type: Photocell Light Sensor

• Operation Mode: Automatic ON/OFF based on ambient light

• Switching Action: ON at dusk, OFF at dawn

• Housing Material: Weather-resistant plastic enclosure

• Installation Type: Outdoor wall or pole mounting

• Protection: Designed for outdoor environmental conditions

• Application: Automatic lighting control for outdoor systems

Handling & Safety

Always power the light sensor within its rated voltage range and double-check pin connections before powering up. Avoid touching the circuit while it is live, and keep it away from moisture and static discharge during handling. These steps protect the part from damage.

Why Choose This Light Sensor

First, it is a widely used part in the maker community, so documentation, libraries and example wiring diagrams are easy to find. Second, it works with common microcontroller platforms, so you can get it running quickly. Third, our team checks basic function before it ships. So, you avoid guesswork when you order. As a result, this is a dependable choice for learning, prototyping or finishing a project.

Wiring Tips

Before final assembly, test the part on a breadboard if you are unsure of the wiring. Therefore, you avoid damaging your main circuit during first power-up. Also, keep connections short and secure to reduce noise and reading errors. In addition, label each wire during assembly so future troubleshooting is easier. As a result, your project stays reliable and easy to maintain.

Good to Know

A well-matched light sensor saves time on debugging later. Therefore, double-check the pin layout and voltage requirements against your other components before wiring everything together. Also, keep the original packaging until you have tested the part, since this makes any exchange easier if something is not right. In addition, bookmark the manufacturer’s documentation for quick reference during your build. As a result, your project moves forward with fewer surprises.

Photo Cell Light Control Switch AC 220V 15A

Photo Cell Light Control Switch AC 220V 15A حساس ضوء مخصص لـ الكشف عن الضوء المحيط أو أشعة الليزر أو اللون داخل الدائرة.

الاستخدامات

• التحكم التلقائي في الإضاءة
• إنذارات تعمل بالضوء
• مشاريع فرز الألوان
• أنظمة أمان بحاجز الليزر

ملاحظات الأمان

شغّل حساس ضوء دايمًا في حدود الجهد المقنن ليه، وراجع توصيلات الأطراف قبل التشغيل. تجنب لمس الدائرة وهي شغالة، وخليها بعيدة عن الرطوبة والشحنات الساكنة أثناء التعامل معاها. هذه الخطوات بتحمي القطعة من التلف.

ليه تختار حساس ضوء ده

أولاً، قطعة مستخدمة بشكل واسع في مجتمع الصناع، فتلاقي شروحات ومكتبات وأمثلة توصيل بسهولة. ثانيًا، بيشتغل مع منصات المتحكمات الشائعة، فتقدر تشغّله بسرعة. ثالثًا، بنتأكد من الوظيفة الأساسية قبل الشحن. فهو اختيار موثوق للتعلم أو التجربة أو إنهاء مشروعك.

تقدر تستعرض باقي الحساسات والموديولات عندنا لمشروعك القادم.
