Thermocouple Temperature Module with K-Type Sensor MAX6675

Overview

The Thermocouple Temperature Module with K-Type Sensor MAX6675 is a high-precision digital temperature measurement module designed for accurate and stable temperature readings over a wide range. This module uses the MAX6675 chip paired with a K-Type thermocouple sensor, providing precise measurements and excellent linearity. It is ideal for industrial, laboratory, and educational applications requiring reliable temperature monitoring and digital data output. The Thermocouple Temperature Module with K-Type Sensor MAX6675 is especially suited for use with microcontrollers such as Arduino, ESP32, and Raspberry Pi for data acquisition and automation systems.

Key Features

• Sensor Type: K-Type thermocouple — provides accurate measurement in high-temperature environments.

• Temperature Range: 0°C to +1024°C — suitable for industrial and scientific applications.

• Chipset: MAX6675 digital converter — ensures high accuracy and stability.

• Resolution: 0.25°C — delivers fine temperature precision.

• Interface Type: SPI (Serial Peripheral Interface) — allows easy communication with most microcontrollers.

• Power Supply: 3.3V to 5V DC — compatible with common development boards.

• Compact Design: Lightweight and easy to integrate into embedded systems.

Applications

 is widely used in applications requiring accurate and real-time temperature monitoring, including:

• Industrial temperature sensing and control systems.

• 3D printers and reflow soldering stations.

• Ovens, furnaces, and heating equipment.

• Scientific research and lab experiments.

• DIY electronic and automation projects.

Advantages

• High precision and low noise performance.

• Easy SPI interface for fast and reliable communication.

• Wide measurement range suitable for high-temperature environments.

• Excellent stability and repeatability of readings.

• Compact module for integration into industrial or educational systems.

Technical Specifications (Data Sheet)

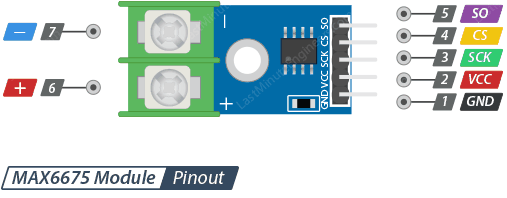

Pin Configuration

• VCC: Power supply (3.3V–5V)

• GND: Ground

• SCK: Serial Clock Input

• CS: Chip Select

• SO: Serial Data Output

Usage Notes

• Ensure proper connection of the K-Type thermocouple to avoid polarity errors.

• Use shielding for long sensor cables to reduce noise interference.

• Suitable for integration with Arduino libraries for easy setup.

• Avoid exceeding the rated temperature range of the thermocouple.

Conclusion

offers high accuracy, wide temperature range, and digital convenience for both industrial and educational projects. Its compact design and SPI interface make it an ideal choice for microcontroller-based systems requiring real-time temperature monitoring. Whether used for research, automation, or manufacturing control, this module ensures precise readings, fast response, and exceptional reliability in all environments.
