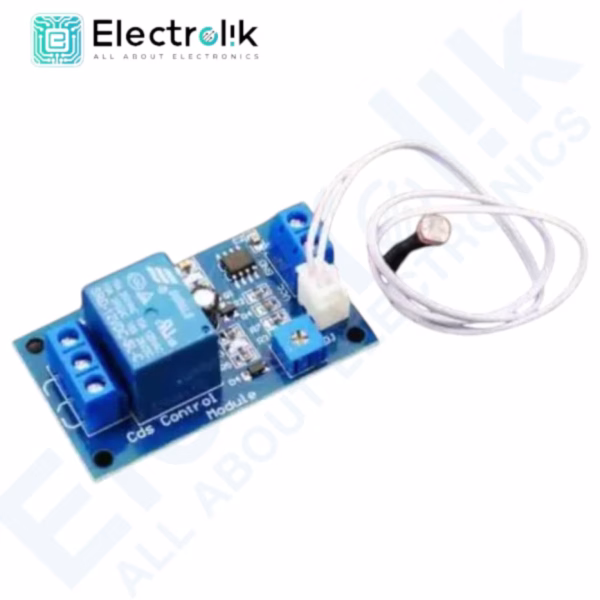

Light Sensitive LDR Relay Module 12V

Overview

The Light Sensitive LDR Relay Module 12V is an intelligent light detection control module that automatically activates or deactivates electrical loads based on ambient light intensity. Built with a highly sensitive LDR (Light Dependent Resistor) sensor and a stable 12V relay circuit, this module provides automatic switching for lights, fans, and other electrical devices.  is ideal for smart lighting systems, streetlights, garden lamps, solar applications, and DIY automation projects, offering both convenience and energy efficiency.

Key Features

• Operating Voltage: 12V DC — suitable for most control systems and automation circuits.

• Sensor Type: High-sensitivity LDR (Light Dependent Resistor) for accurate light level detection.

• Relay Output: Capable of switching AC or DC loads up to 10A.

• Trigger Adjustment: Adjustable sensitivity using a built-in potentiometer.

• Indicator LEDs: Power and relay status indicators for easy operation monitoring.

• Compact Design: Easy to install and integrate into control panels or DIY systems.

• Output Type: Relay output with Normally Open (NO) and Normally Closed (NC) terminals.

Applications

 is versatile and widely used in light automation and energy-saving projects, such as:

• Automatic streetlight and outdoor lighting control.

• Garden and pathway illumination based on ambient light.

• Solar lighting systems for day/night operation.

• Home automation projects and DIY electronic systems.

• Security lighting and photo-controlled circuits.

Advantages

• Automatically controls devices based on light intensity, saving energy.

• Adjustable sensitivity allows fine-tuning for different environments.

• Simple 3-wire connection for quick setup.

• Long relay life with stable switching performance.

• Compact, lightweight design suitable for enclosed installations.

Technical Specifications (Data Sheet)

Usage Notes

• Adjust the potentiometer to set the desired light sensitivity threshold.

• Connect the load to the relay’s NO/NC terminal depending on required behavior.

• Ensure a stable 12V DC power supply for optimal performance.

• Protect the module from moisture and direct sunlight for accurate LDR readings.

Conclusion

 is a practical and efficient solution for automatic lighting and smart control applications. Combining high sensitivity, reliability, and adjustability, it allows devices to operate automatically depending on ambient light levels. Whether used for energy-saving lighting, solar systems, or DIY automation, this module provides stable performance, flexibility, and ease of use — making it a must-have component for intelligent control systems.
