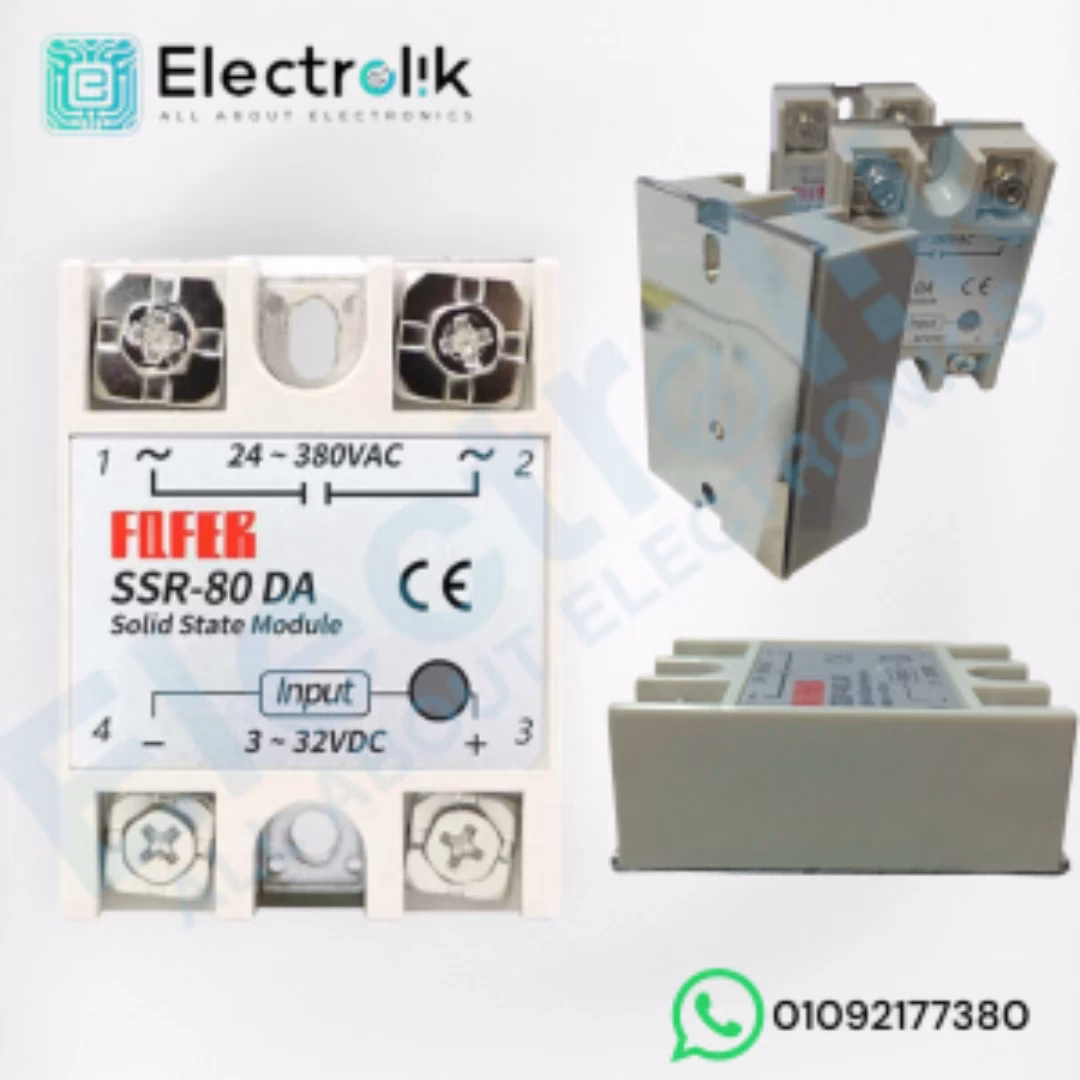

Solid State Relay 3V~32V DC to AC 24V~380V SSR-80 80A

Solid State Relay 3V~32V DC to AC 24V~380V SSR-80 80A is a robust and high-efficiency switching device designed for precise control of heavy electrical loads. This industrial-grade relay replaces traditional mechanical relays with solid-state technology, providing silent, fast, and maintenance-free operation. Moreover, it ensures superior durability, heat resistance, and electrical isolation, making it perfect for automation, temperature regulation, and power control systems.

• High Current and Voltage Capacity
   supports load currents up to 80 amperes and can manage AC voltages between 24V and 380V. Therefore, it’s ideal for controlling industrial heaters, motors, fans, lighting systems, and CNC equipment requiring stable high-power operation.

• Wide DC Control Range
  Featuring an input control voltage range of 3V to 32V DC, this relay easily interfaces with PLCs, microcontrollers, and digital circuits. Consequently, it enables precise switching control and ensures reliable signal response under various load conditions.

• Fast and Silent Operation
   eliminates noise and mechanical wear by using electronic switching. It provides instant on/off performance without arcing, vibration, or contact degradation, ensuring longer operational life and consistent reliability.

• Durable and Heat-Resistant Construction
  Built with a heavy-duty aluminum heat sink base and advanced semiconductor components, the relay guarantees effective heat dissipation. As a result, it maintains stable performance during continuous high-load operation and extends overall lifespan.

• Safe and Reliable Performance
   includes high dielectric strength, strong insulation, and surge protection, ensuring safe operation even under fluctuating voltages. Its sealed body prevents dust, vibration, and moisture interference.

• Compact and Easy to Install
  With a user-friendly design and screw-type terminals, installation is simple and quick. Furthermore, its compact body fits neatly into control panels, making it perfect for automation environments where space efficiency is crucial.

In conclusion,delivers excellent power control, reliability, and long-term stability. It’s the ideal solution for engineers and professionals who demand silent operation, high performance, and durable design in industrial and electronic systems.
