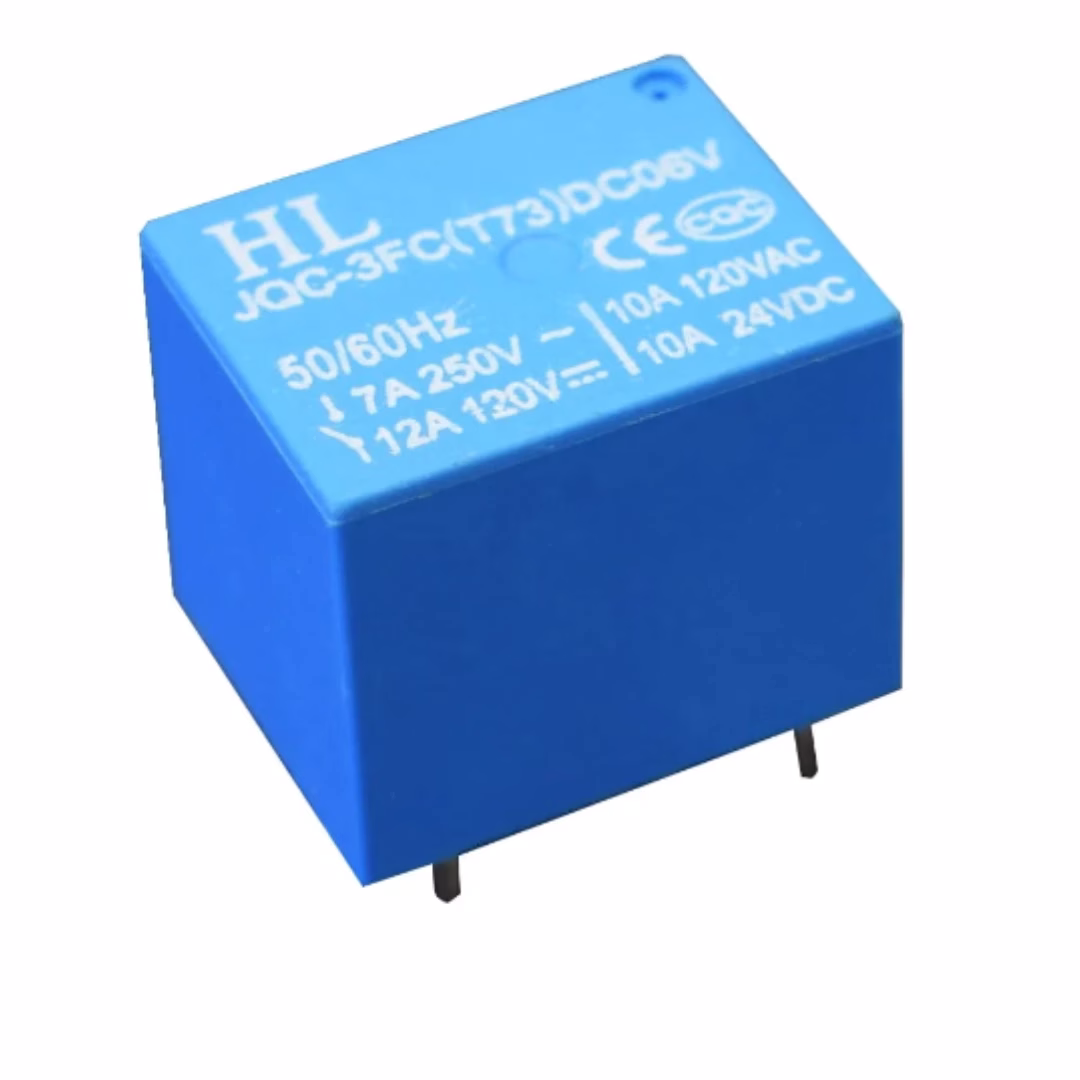

Relay 6V-250VAC 10A 5Pin

The Relay 6V-250VAC 10A 5Pin is a compact, efficient, and reliable electromechanical switching device engineered for low-voltage control systems that need to switch medium-power AC loads. With a coil voltage of just 6V DC, this relay is ideal for electronics developers, hobbyists, engineers, automation designers, and embedded-system developers working with low-voltage control logic. Despite its low control voltage, it delivers powerful switching capability up to 10A at 250VAC, making it suitable for a wide range of applications in home automation, industrial electronics, and smart control systems.

Built with durable silver-alloy contacts, the Relay 6V-250VAC 10A 5Pin offers stable operation, reduced arcing, and extended electrical lifespan. The standard 5-pin configuration (SPDT) allows easy integration into relay modules, PCB boards, and socket bases commonly used in automation and control environments. Its compact yet rugged design ensures long-term reliability, even under continuous use.

The relay provides strong electrical isolation between the low-voltage coil and high-voltage load, protecting sensitive electronics such as microcontrollers, sensors, and logic boards. This makes it ideal for Arduino, Raspberry Pi, ESP32, STM32, and other embedded platforms that operate on low voltage levels but need to control high-voltage devices safely.

Key Features

• High-quality Relay 6V-250VAC 10A 5Pin for low-voltage control applications

• Coil voltage: 6V DC for compatibility with embedded systems

• Switching capacity: Up to 10A at 250VAC

• 5-pin SPDT configuration for flexible wiring

• Silver-alloy contacts for long life and stable switching

• Excellent electrical isolation between coil and load

• Ideal for automation, home control, and industrial circuits

• Durable construction suitable for long-term operation

Applications

The Relay 6V-250VAC 10A 5Pin is ideal for:

• Arduino and microcontroller-based projects

• Smart home automation (lights, appliances, fans)

• Industrial control circuits and PLC systems

• HVAC systems and thermostat control

• Motor control (pumps, small motors, solenoids)

• Security systems, alarms, and access control

• Lighting control panels and distribution boards

• Sensor-based automation and IoT systems

Data Sheet (Technical Specifications)

• Model: Relay 6V-250VAC 10A 5Pin

• Relay Type: Electromechanical SPDT (Single-Pole Double-Throw)

• Coil Voltage: 6V DC

• Coil Resistance: Approx. 40–60Ω (varies by manufacturer)

• Contact Rating: 10A at 250VAC

• Switching Voltage: Max 250VAC / 30VDC

• Contact Material: Silver alloy

• Mechanical Life: Up to 10 million operations

• Electrical Life: Up to 100,000 operations at rated load

• Insulation Resistance: >100MΩ at 500VDC

• Dielectric Strength: 1500–2000VAC (between coil & contacts)

• Operating Temperature: −40°C to +70°C

• Pins: 5-pin standard relay configuration

• Mounting Type: PCB or relay base socket

• Dimensions: Standard compact relay size

• Use Case: Low-voltage control, switching AC loads, automation

Benefits

• Allows low-voltage electronics to control high-voltage AC loads

• Provides safe and strong isolation for sensitive control circuits

• Long operational life reduces maintenance and failures

• Easy integration with common microcontroller platforms

• Suitable for both beginners and advanced automation engineers

• Cost-effective solution for medium-load switching tasks

Why Choose This Model?

is an excellent choice for anyone working with low-voltage electronics who needs to control powerful AC devices safely and efficiently. Its reliable switching performance, long life, strong isolation, and compatibility with common microcontroller systems make it a perfect relay for industrial automation, smart home systems, and embedded electronics projects.
