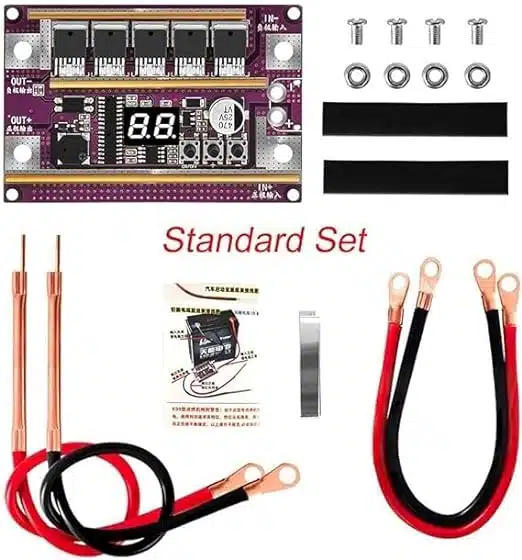

12V Spot Welder DIY Kit 99 Gears of Power Adjustable Spots Welding Control Board for 18650 Battery 0.1-0.3mm Nickel Sheet

12V Spot Welder DIY Kit 99 Gears of Power Adjustable Spots Welding Control Board for 18650 Battery 0.1–0.3mm Nickel Sheet

Overview

•  is a powerful and precise welding control solution designed for building and repairing lithium battery packs. This DIY kit focuses on accuracy, flexibility, and user control, making it ideal for hobbyists, technicians, and small workshops that work with 18650 battery cells and nickel strips.

•  allows users to fine-tune welding strength with an impressive 99-level power adjustment. This wide adjustment range ensures clean, strong welds without damaging battery cells or burning nickel strips.

Adjustable Welding Power and Precision

• The control board offers 99 gears of adjustable welding power, which enables precise control over welding energy. Therefore, users can match the output exactly to the thickness of the nickel sheet and the battery condition.

• In addition, the board supports welding nickel sheets ranging from 0.1mm to 0.3mm thickness. This capability makes it suitable for most standard lithium battery pack constructions used in power tools, electric bikes, and energy storage systems.

Optimized for 18650 Battery Packs

• 12V Spot Welder DIY Kit 99 Gears of Power Adjustable Spots Welding Control Board for 18650 Battery 0.1–0.3mm Nickel Sheet is specifically optimized for 18650 lithium-ion cells. It delivers fast pulse welding that minimizes heat transfer to the battery, which helps preserve battery safety and lifespan.

• Moreover, the rapid welding pulse reduces oxidation and ensures consistent spot weld quality across multiple cells in large battery packs.

Design and Ease of Use

• The control board features a compact PCB layout with clearly labeled connection points. This design simplifies wiring and reduces installation errors, even for users assembling a spot welder for the first time.

• Furthermore, the board supports foot pedal or trigger control (depending on configuration), allowing hands-free operation and improved welding consistency. This setup enhances productivity and safety during repeated welding tasks.

Power Input and Stability

• The kit operates on a 12V power source, typically supplied by high-current lithium batteries or lead-acid batteries. As a result, it delivers strong and stable welding current without requiring complex power electronics.

• Additionally, the board includes protective circuitry that helps safeguard components from abnormal voltage conditions during operation.

Practical Benefits

• This DIY spot welder kit eliminates the need for expensive commercial welding machines. Therefore, it offers a cost-effective solution for battery pack assembly and repair.

• At the same time, the adjustable power levels allow both beginners and experienced users to achieve professional-quality welds with confidence.

Typical Applications

• 18650 lithium battery pack assembly

• Battery repair and refurbishment

• Power tool battery rebuilding

• DIY energy storage systems

• Electronics workshops and labs

Key Features

• Designed for 12V spot welding systems

• 99-level adjustable welding power

• Supports 0.1–0.3mm nickel sheets

• Optimized for 18650 lithium batteries

• Fast pulse welding with minimal heat

• Compact and easy-to-integrate control board

• Suitable for DIY and professional use

Datasheet (Technical Specifications)

• Product Type: Spot welding control board

• Operating Voltage: 12V DC

• Power Adjustment Levels: 99 gears

• Supported Battery Type: 18650 lithium-ion cells

• Supported Nickel Thickness: 0.1mm – 0.3mm

• Welding Method: Pulse spot welding

• Control Options: Trigger or foot switch (model dependent)

• PCB Size: Compact DIY module

• Usage Environment: Indoor electronics and battery workshops
