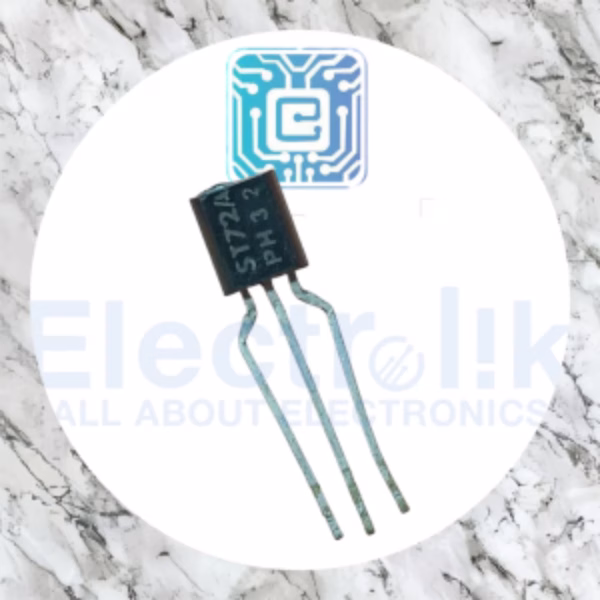

MOSFET BST72A NPN 300mA 80V

Description:MOSFET BST72A NPN 300mA 80V

BST72A MOSFET is a compact and efficient N-channel enhancement-mode MOSFET designed for low-power switching, signal amplification, and small-load control applications. The BST72A MOSFET offers reliable performance with a drain current of 300mA and a drain-source voltage rating of 80V, making it suitable for precision circuits, low-voltage regulators, and control modules that demand efficiency and stability.

Engineered using advanced silicon planar technology, the BST72A MOSFET provides low on-resistance, high input impedance, and fast switching characteristics. These features enable it to perform exceptionally well in circuits where space, energy efficiency, and accuracy are critical. Its excellent thermal and electrical stability allows for smooth operation in both continuous and pulsed systems.

Encapsulated in a TO-92 or SOT-23 package, the BST72A MOSFET is compact, easy to integrate, and perfect for use in both industrial and consumer electronic designs.

Key Features:

• N-Channel Enhancement MOSFET: Optimized for small-signal switching and control.

• Moderate Voltage Handling: Operates efficiently up to 80V.

• Low Drain Current: Supports up to 300mA continuous drain current.

• Low On-Resistance (RDS(on)): Minimizes energy loss and heat generation.

• High Input Impedance: Provides easy gate control and low drive power.

• Fast Switching Speed: Suitable for high-frequency or digital applications.

• Compact Package Options: Available in TO-92 or SOT-23 for versatile mounting.

Applications:

• Signal switching and small-signal amplification

• Relay and load driving for low-current circuits

• Voltage regulation and low-power control systems

• LED control and display circuits

• Audio and sensor interface circuits

• Educational and prototype electronics

Electrical Characteristics (Typical Values):

Advantages:

• Low power consumption and high efficiency for compact circuits.

• Fast response time ideal for digital and analog applications.

• Stable operation under variable voltage and load conditions.

• Compact, durable design suitable for embedded or mobile devices.

• Cost-effective and versatile for educational and industrial use.

Summary:

The BST72A MOSFET is a high-quality N-channel power transistor that offers reliable and efficient performance in low-power, medium-voltage applications. With a 300mA drain current and 80V voltage rating, it provides low on-resistance, fast switching, and excellent stability. Its compact design and thermal reliability make it a preferred choice for signal amplification, load driving, and voltage control in small electronic systems. Whether used in industrial control boards, sensor circuits, or educational projects, the BST72A MOSFET ensures precision, durability, and consistent performance for modern electronic designs.
