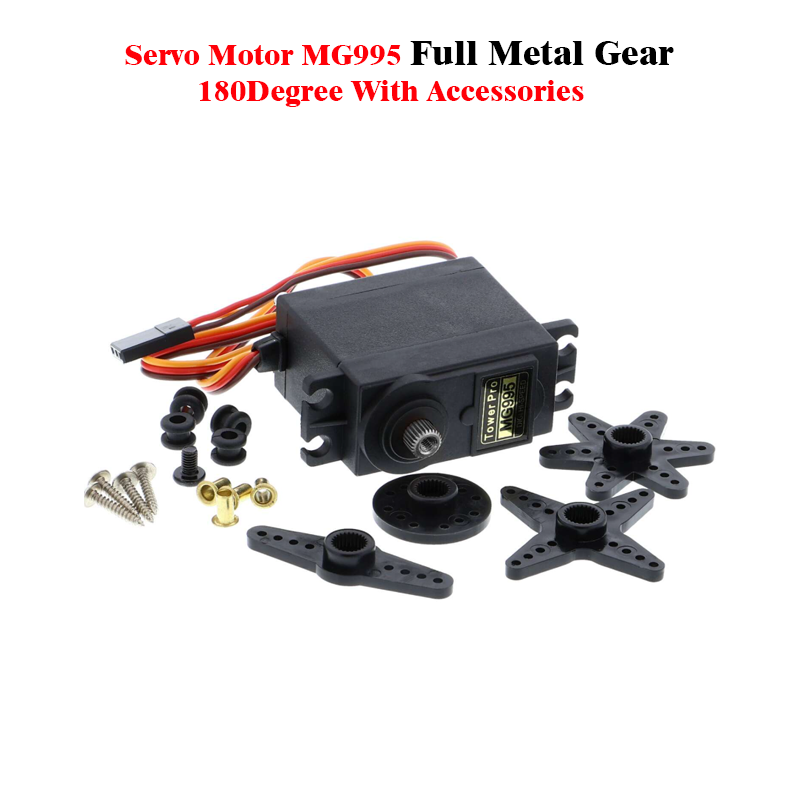

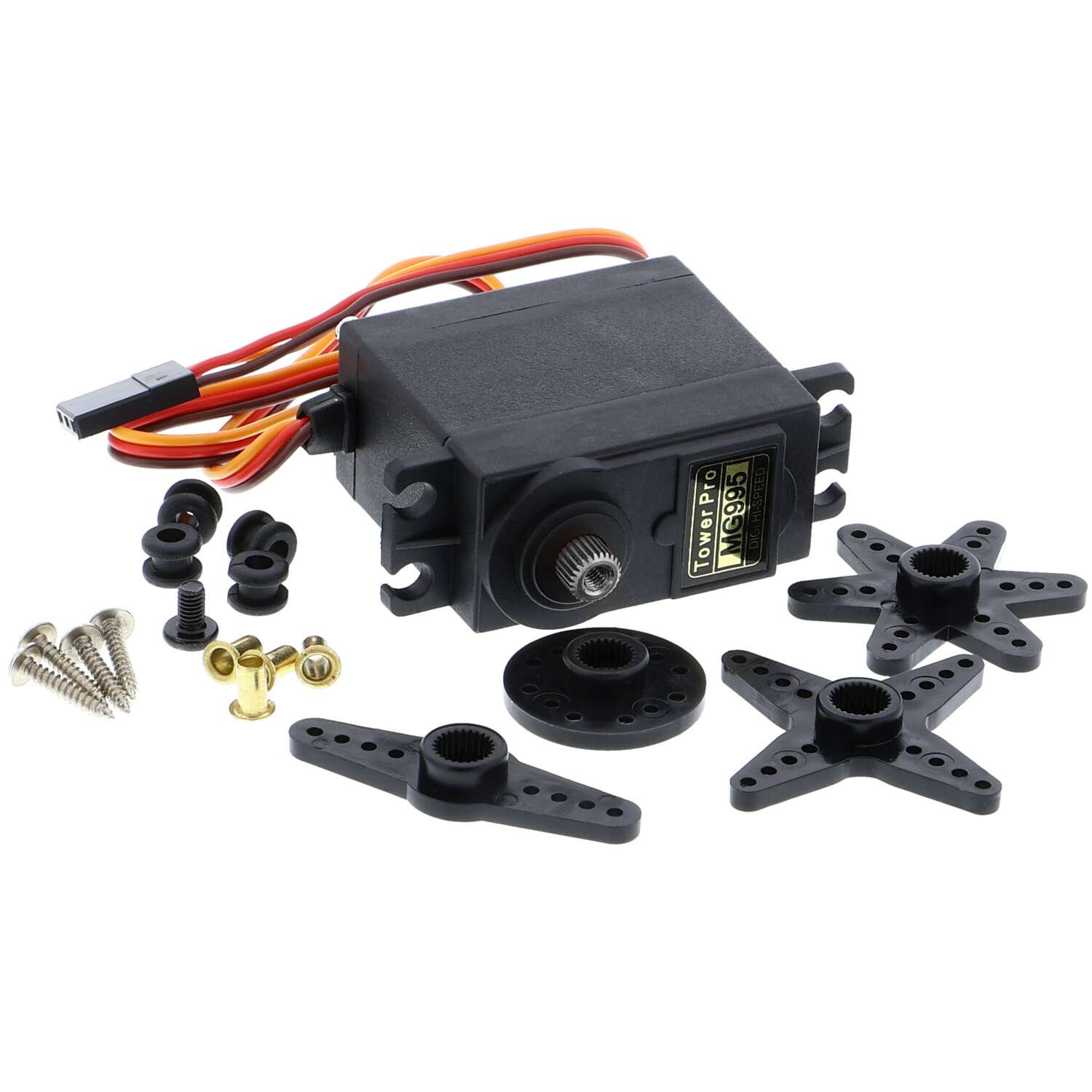

Servo Motor MG995 Full Metal Gear 180 Degree (With Accessories)

Product Details Description: Compliant with most standard receiver connector: Futaba, Hitec, Sanwa, GWS etc… Great for truck, Boat, Racing Car, Helicopter and Airplane. Power Supply: Through External Adapter. Stable and Shock Proof. – Full Metal Gear – Double Ball Bearing – Connector Wire Length 300mm Specifications • Weight: 55 g • Dimension: 40.7 x 19.7 x 42.9 mm approx. • Stall torque: 9.4 kgf·cm (4.8 V ), 11 kgf·cm (6 V) • Operating speed: 0.17 s/60º (4.8 V), 0.14 s/60º (6 V) • Operating voltage: 4.8 V a 7.2 V • Running Current 500 mA • Stall Current 2.5 A (6V) • Dead band width: 5 µs • Stable and shock proof double ball bearing design

Handling & Safety

Always confirm the rated voltage and current before wiring the servo motor into a circuit. Avoid running it beyond its rated load, and keep wiring secure to prevent shorts or overheating. These steps protect the part and keep you safe.

Why Choose This Servo Motor

First, it is a widely used part in electronics and robotics workshops, so documentation and wiring references are easy to find. Second, the rated values are clearly specified, so you can match it to your project with confidence. Third, our team checks basic function before it ships. So, you avoid guesswork when you order. As a result, this is a dependable choice for repair, prototyping or finishing a project.

Wiring Tips

Before final assembly, test the part on a bench supply if you are unsure of the wiring or rating. Therefore, you avoid damaging your main circuit during first power-up. Also, keep connections short and secure to reduce noise and voltage drop. In addition, label each wire during assembly so future troubleshooting is easier. As a result, your project stays reliable and easy to maintain.

Good to Know

A well-matched servo motor saves time on debugging later. Therefore, double-check the rated voltage and current against your other components before wiring everything together. Also, keep the original packaging until you have tested the part, since this makes any exchange easier if something is not right. In addition, bookmark the manufacturer’s documentation for quick reference during your build. As a result, your project moves forward with fewer surprises.

Servo Motor MG995 Full Metal Gear 180 Degree (With Accessories)

Servo Motor MG995 Full Metal Gear 180 Degree (With Accessories) موتور سيرفو مخصص لـ التحكم الدقيق في الحركة الزاوية أو الدورانية داخل المشروع.

الاستخدامات

• أذرع الروبوت وآليات الإمساك
• المركبات اللاسلكية وحوامل الكاميرا
• أطقم الروبوتات التعليمية
• آليات التوجيه والتموضع

ملاحظات الأمان

تأكد دايمًا من الجهد والتيار المقنن قبل توصيل موتور سيرفو في الدائرة. تجنب تشغيله فوق الحمل المقنن، وخلي التوصيلات ثابتة عشان تتجنب القصر الكهربائي أو السخونة الزايدة. هذه الخطوات بتحمي القطعة وتحافظ على سلامتك.

ليه تختار موتور سيرفو ده

أولاً، قطعة مستخدمة بشكل واسع في ورش الإلكترونيات والروبوتات، فتلاقي شروحات ومراجع توصيل بسهولة. ثانيًا، القيم المقننة موضحة بدقة، فتقدر تطابقها مع مشروعك بثقة. ثالثًا، بنتأكد من الوظيفة الأساسية قبل الشحن. فهو اختيار موثوق للإصلاح أو التجربة أو إنهاء مشروعك.

تقدر تستعرض باقي المواتير ودرايفراتها عندنا لمشروعك القادم.
