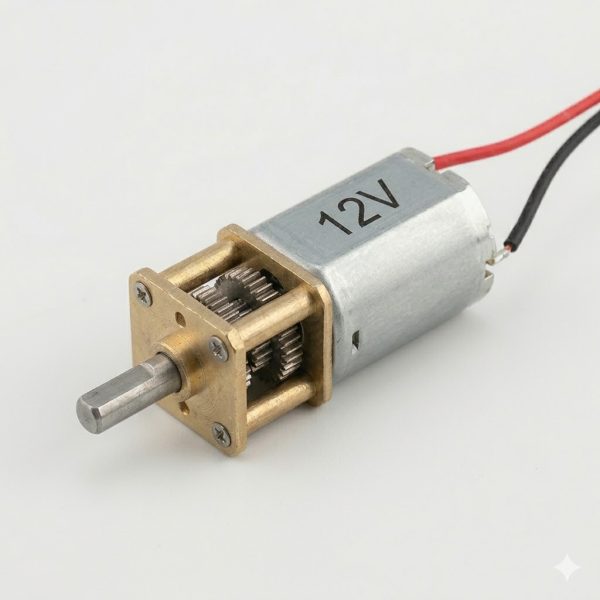

N20 Micro Gear Motor 12V
Original price was: 410,00 EGP.390,00 EGPCurrent price is: 390,00 EGP.
📝 Product Description

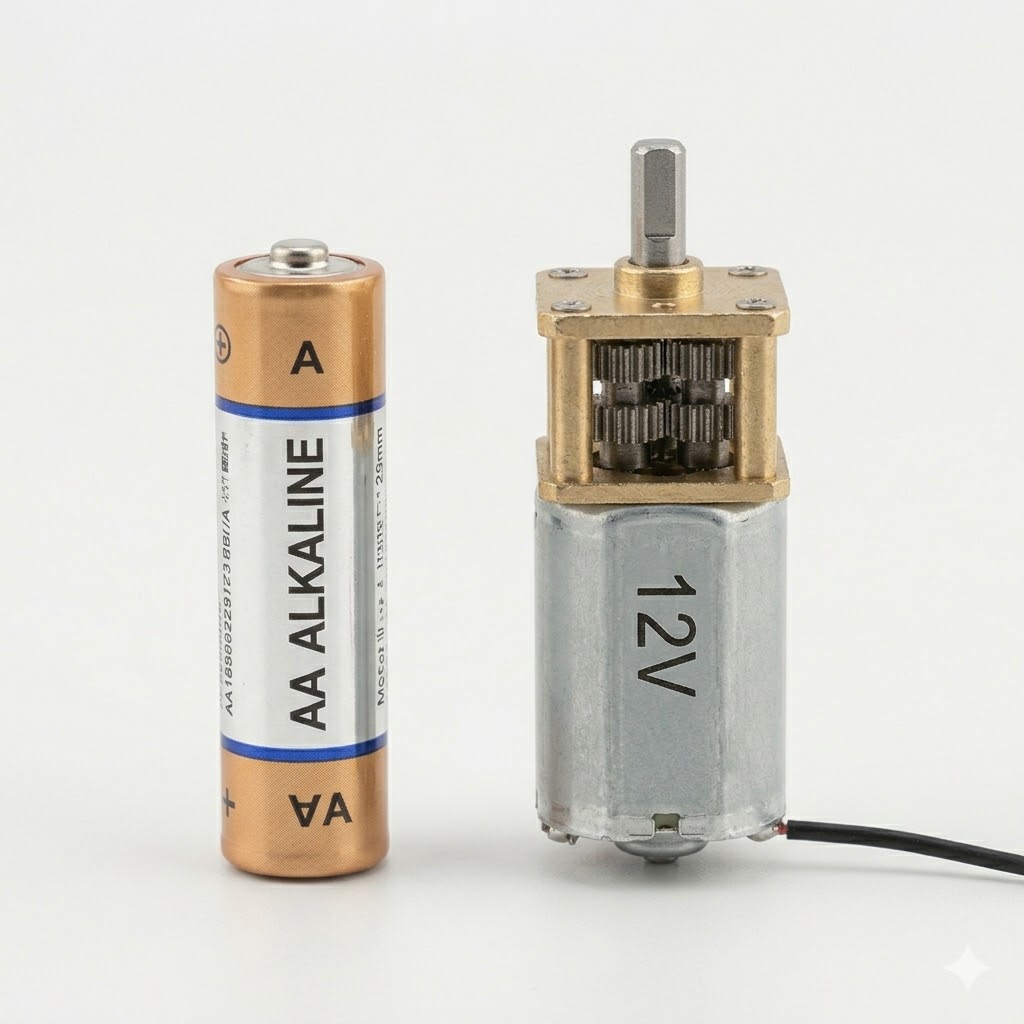

The N20 Micro Gear Motor 12V is the perfect solution for engineering projects requiring robust power in a minimal footprint. Specifically, this motor combines a durable 12V DC motor with an integrated, high-precision metal gearbox. Its compact size makes it incredibly versatile, fitting into small spaces without sacrificing performance. Consequently, it is a top choice for hobbyists and professionals alike who demand reliability and strength.
Enhanced Precision and Durability

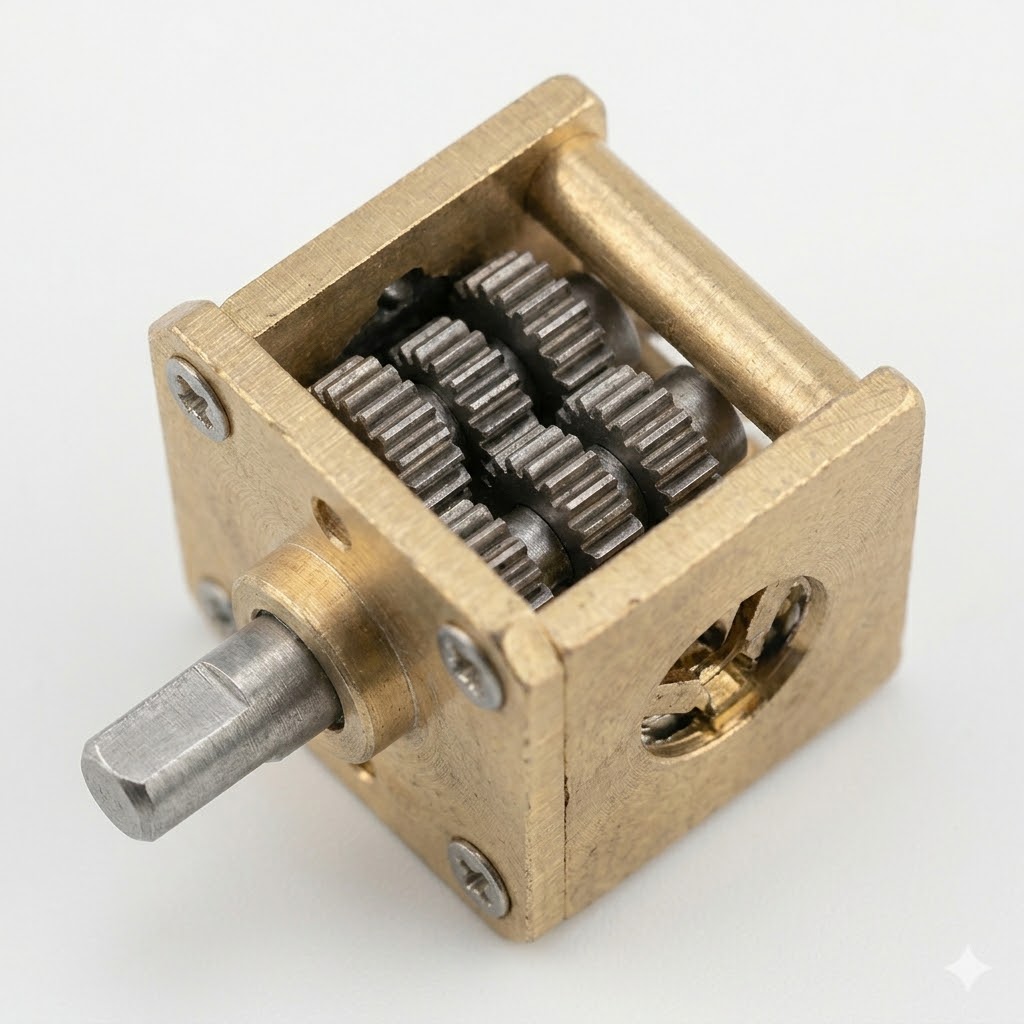

The defining feature of this N20 Micro Gear Motor 12V is its robust, all-metal gear train. Moreover, these gears are precision-machined to ensure smooth operation and exceptional longevity. Unlike motors with plastic components, this metal gearbox can withstand significant loads. Furthermore, the 12V operation provides a significant boost in both speed and torque compared to lower voltage models. This makes it suitable for demanding applications where consistent power is critical.
Key Benefits for Your Projects
Integrating this motor into your design offers numerous advantages. For example, its high-torque output is perfect for driving wheels on miniature robots or operating small mechanisms. Additionally, the N20 Micro Gear Motor 12V maintains excellent controllability, allowing for precise movements. Specifically, its standard form factor simplifies integration into various chassis and mounts. Whether you are building an automated curtain system, a smart lock, or a custom RC vehicle, this motor delivers the performance you need.
Reliable Performance and Easy Integration

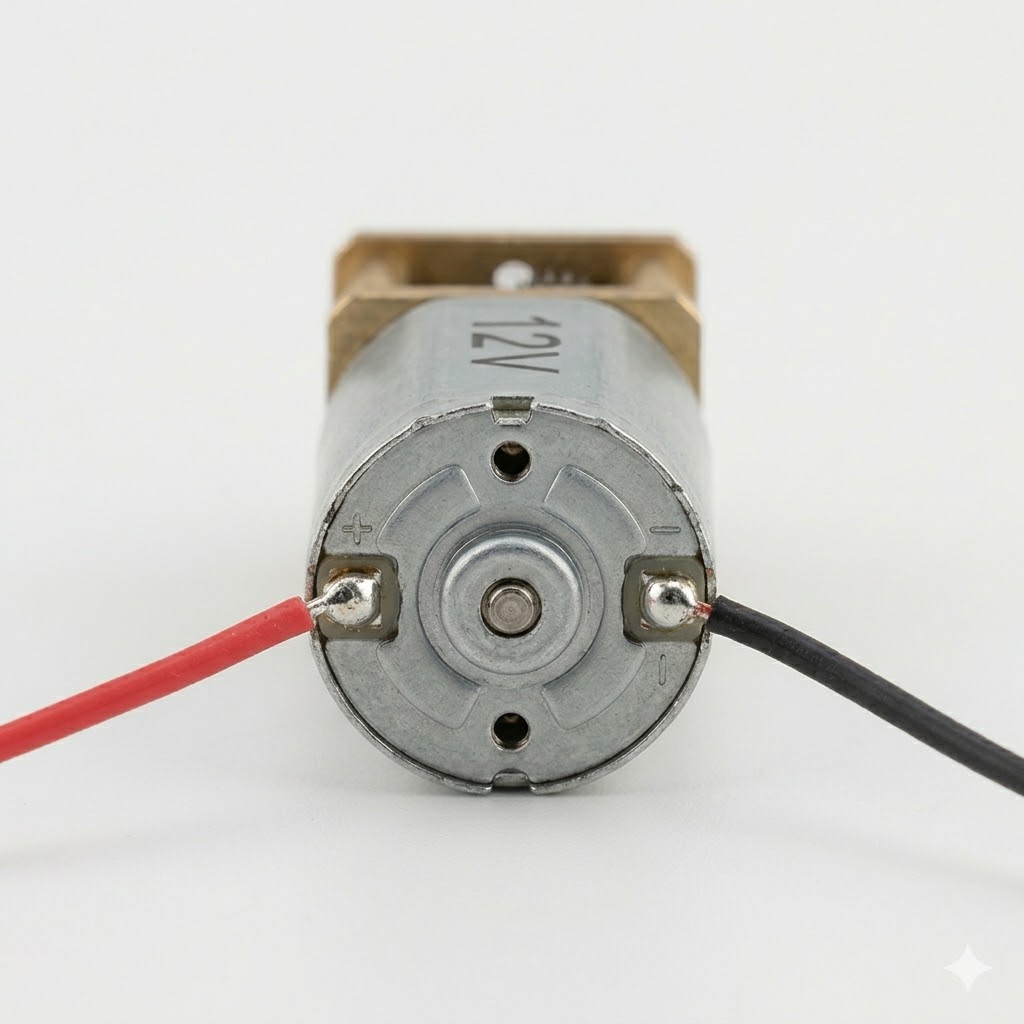

Furthermore, the N20 Micro Gear Motor 12V is designed for easy use and long-term reliability. The motor terminals are easily accessible for soldering, and the output shaft is a standard D-shape, simplifying the attachment of wheels and gears. Furthermore, its efficient operation translates to longer battery life in portable applications. In summary, if your project requires a miniature, high-torque, and durable power source, the N20 Micro Gear Motor 12V is the superior choice for consistent, powerful performance.
📊 Verified Data Sheet
| Specification | Value |
| Motor Type | N20 DC Brushed Motor |
| Operating Voltage | 6V – 12V DC (Optimal 12V) |
| No-Load Speed (12V) | Multiple Options (e.g., 60/100/300/600/1000 RPM) |
| No-Load Current (12V) | ~30mA to 60mA (Depending on speed) |
| Rated Torque | Varies by RPM (e.g., up to 2.5 kg.cm) |
| Stall Torque | Significant, up to 10+ kg.cm at low RPM |
| Stall Current (12V) | ~0.5A to 1A |
| Gearbox Material | All-Metal Spur Gears |
| Reduction Ratio | Multiple Options (e.g., 30:1, 100:1, 298:1) |

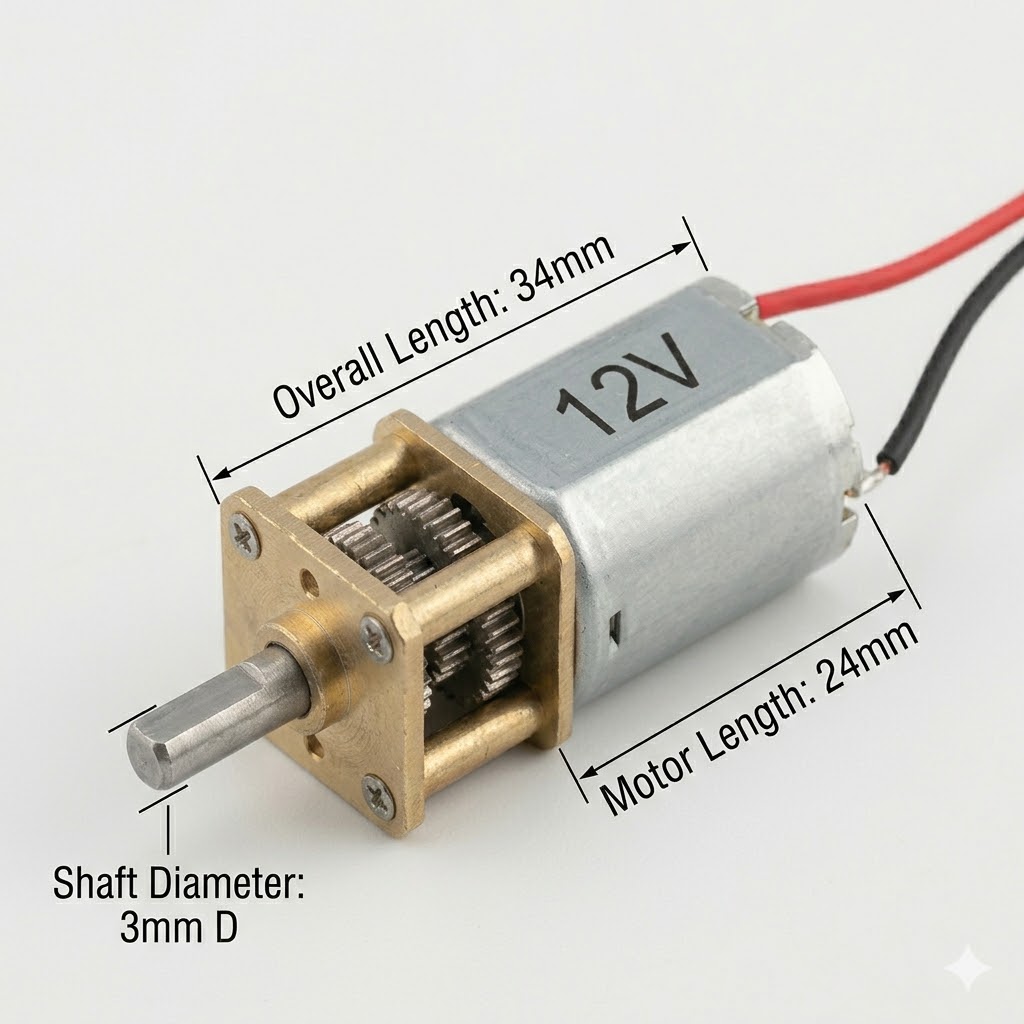

| Output Shaft | 3mm D-shape shaft, ~10mm length |
| Dimensions | Approx. 12 x 10 x 24mm (LxWxH) [Gearbox] |
| Total Length | Approx. 34mm (incl. motor & shaft) |
| Weight | ~10g – 15g |
