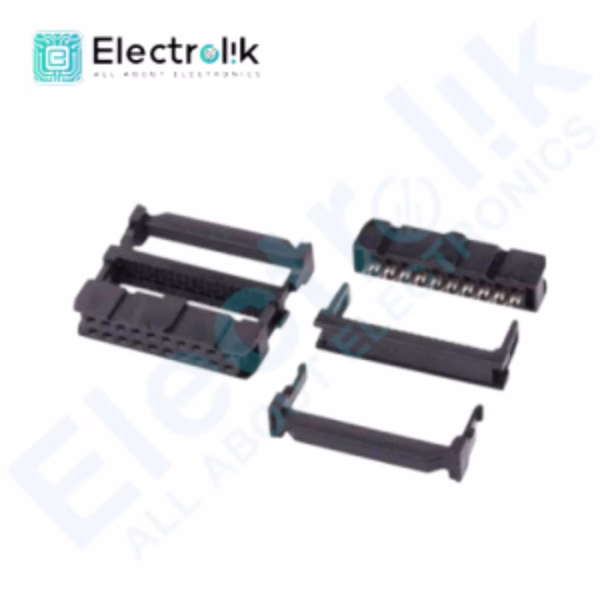

IDC Socket Connector Header 20 pin Female

The IDC Socket Connector Header 20 pin Female is a highly reliable and efficient connector designed for precise data and power transmission in electronic circuits. Known for its stable performance and secure locking mechanism, the IDC Socket Connector Header 20 pin Female is widely used in embedded systems, industrial control boards, and communication modules. It provides a simple and organized way to connect ribbon cables to PCBs, ensuring consistent electrical contact and durability even under demanding conditions.

Key Features:

• High-Quality Design:
  The is made from durable thermoplastic materials that resist heat and deformation. Its gold-plated contacts ensure low resistance and long-lasting conductivity.

• Secure and Reliable Connection:
  With its tight-fitting 20-pin configuration, it guarantees strong mechanical stability and prevents accidental disconnections. The socket design also minimizes signal loss during data transmission.

• Ease of Installation:
  This connector supports insulation displacement contact (IDC) technology, allowing users to connect ribbon cables without soldering. It reduces installation time and enhances connection accuracy.

• Versatile Applications:
  Ideal for use in Arduino, Raspberry Pi, prototyping boards, control panels, and other development systems. It’s also compatible with standard 2.54mm pitch ribbon cables.

• Compact and Efficient:
  Despite its 20-pin capacity, the connector maintains a compact size suitable for tight spaces in electronic assemblies.

Technical Specifications (Datasheet Summary):

• Type: Female IDC Socket Connector

• Number of Pins: 20

• Pitch: 2.54mm

• Material: Thermoplastic (UL94V-0 rated)

• Contact Material: Phosphor Bronze with Gold/Tin Plating

• Current Rating: Up to 1A per pin

• Voltage Rating: 250V AC/DC

• Operating Temperature: -40°C to +105°C

• Mounting Style: Cable Mount

• Cable Compatibility: Flat Ribbon Cable, 1.27mm pitch

Why Choose This Connector:

• Provides excellent signal transmission and mechanical strength.

• Ensures easy assembly with minimal effort or tools.

• Compatible with standard IDC and PCB systems for reliable integration.

• Cost-effective solution for both prototyping and mass production.

Whether you’re assembling a prototype or designing an industrial controller, the offers professional-grade performance and long-lasting reliability. It is an essential component for anyone seeking precision, durability, and simplicity in their electronic connections.
