L7806CV Voltage Regulator 6V

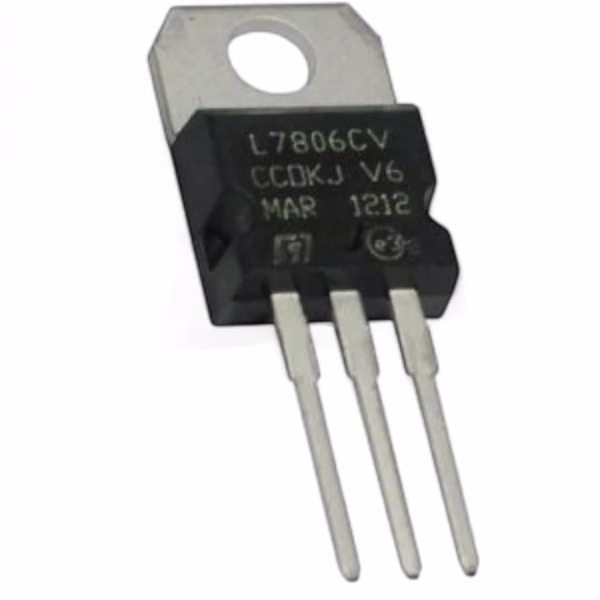

LM7806 Positive Voltage Regulator 6V 1A TO-220

The LM7806 Positive Voltage Regulator 6V 1A TO-220 is a fixed positive voltage regulator designed to provide a stable 6V output with reliable performance. Housed in a TO-220 package, it can deliver up to 1.5A output current when properly heatsinked, making it suitable for medium-power applications. The regulator features built-in protection mechanisms such as thermal shutdown and short-circuit protection, ensuring safe operation under overload conditions. With its simple three-terminal design—input, ground, and output—the LM7806 is easy to use in a wide range of electronic circuits, including power supplies, battery chargers, and embedded systems that require a regulated 6VDC output. Its high reliability and ease of integration make it a popular choice for both hobbyists and professional designs.

Features

• Fixed +6V regulated output.

• Output current up to 1.5A (with proper heatsink).

• Built-in short-circuit protection.

• Thermal overload protection for safe operation.

• Internal current limiting for added reliability.

• Wide input voltage range (typically 8V to 25V).

• Low standby current for efficiency.

• Standard TO-220 package for easy mounting and heat dissipation.

• Simple 3-pin configuration: Input, Ground, Output.

• Suitable for power supplies, battery chargers, and embedded systems.

Pin Configuration

Specifications

Dimensions

Symbol Footprint CAD Model

Applications

• Regulated 6V DC power supplies.

• Battery chargers and portable devices.

• Embedded systems requiring a stable 6V source.

• Microcontroller-based projects and development boards.

• Consumer electronics such as radios and small appliances.

• Communication equipment and instrumentation.

• Industrial control systems and automation circuits.

• DIY electronics and hobby projects.

Package Contents

• 1 X LM7806 Positive Voltage Regulator 6V 1A TO-220
