High-Performance A1273 Transistor for Heavy-Duty Switching

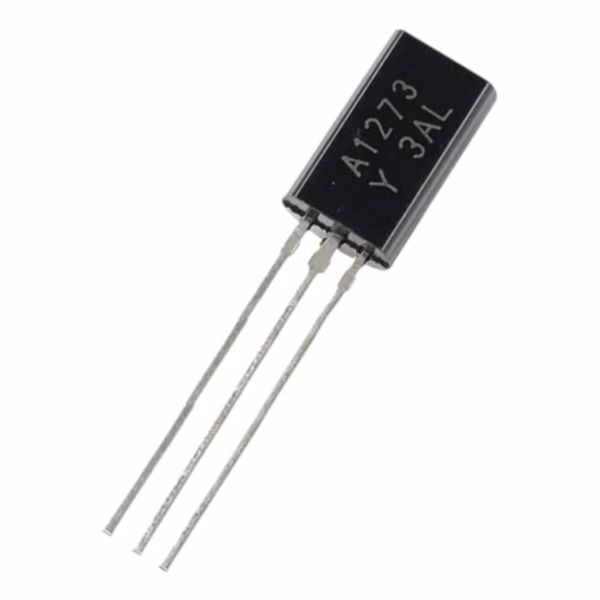

The A1273 Transistor (frequently labeled as 2SA1273) functions as a high-current PNP silicon epitaxial transistor. It specifically handles applications that demand significant current flow within a compact footprint. Engineers consistently choose this component for power amplification and high-speed switching tasks in modern electronic devices.

Superior Current Capacity and Efficiency

Specifically, the A1273 manages a continuous collector current of up to 2A. This high capacity makes the device perfect for driving inductive loads like small DC motors, solenoids, and high-intensity LED arrays. Furthermore, the transistor features a very low collector-emitter saturation voltage. Consequently, the unit minimizes power dissipation during operation, which improves the overall energy efficiency of the circuit. Moreover, the 30V rating provides a reliable safety margin for 12V and 24V DC systems. Transitioning to this transistor allows designers to control larger loads without switching to bulky power packages.

Robust Thermal Management and Applications

Additionally, the A1273 utilizes the TO-92L (Large) package style. This design offers a larger surface area for heat dissipation compared to standard TO-92 units. Consequently, the transistor maintains thermal stability even during sustained high-current operations. Furthermore, the high DC current gain ($h_{FE}$) ensures that the base needs only a small signal to trigger a large output. This sensitivity makes the A1273 a favorite for logic-level switching in micro-controller projects.

Moreover, technicians frequently install the A1273 in DC-to-DC converters and voltage regulation circuits. Specifically, its fast switching speed allows it to function efficiently in high-frequency environments. Furthermore, because it features PNP polarity, it often works as a high-side switch in complex power management systems. Additionally, the component meets strict environmental standards, ensuring safe integration into consumer electronics worldwide. Its reliability and high current-to-size ratio make it an indispensable tool for any electronic repair shop or design lab.

Verified Data Sheet (Technical Specifications)
