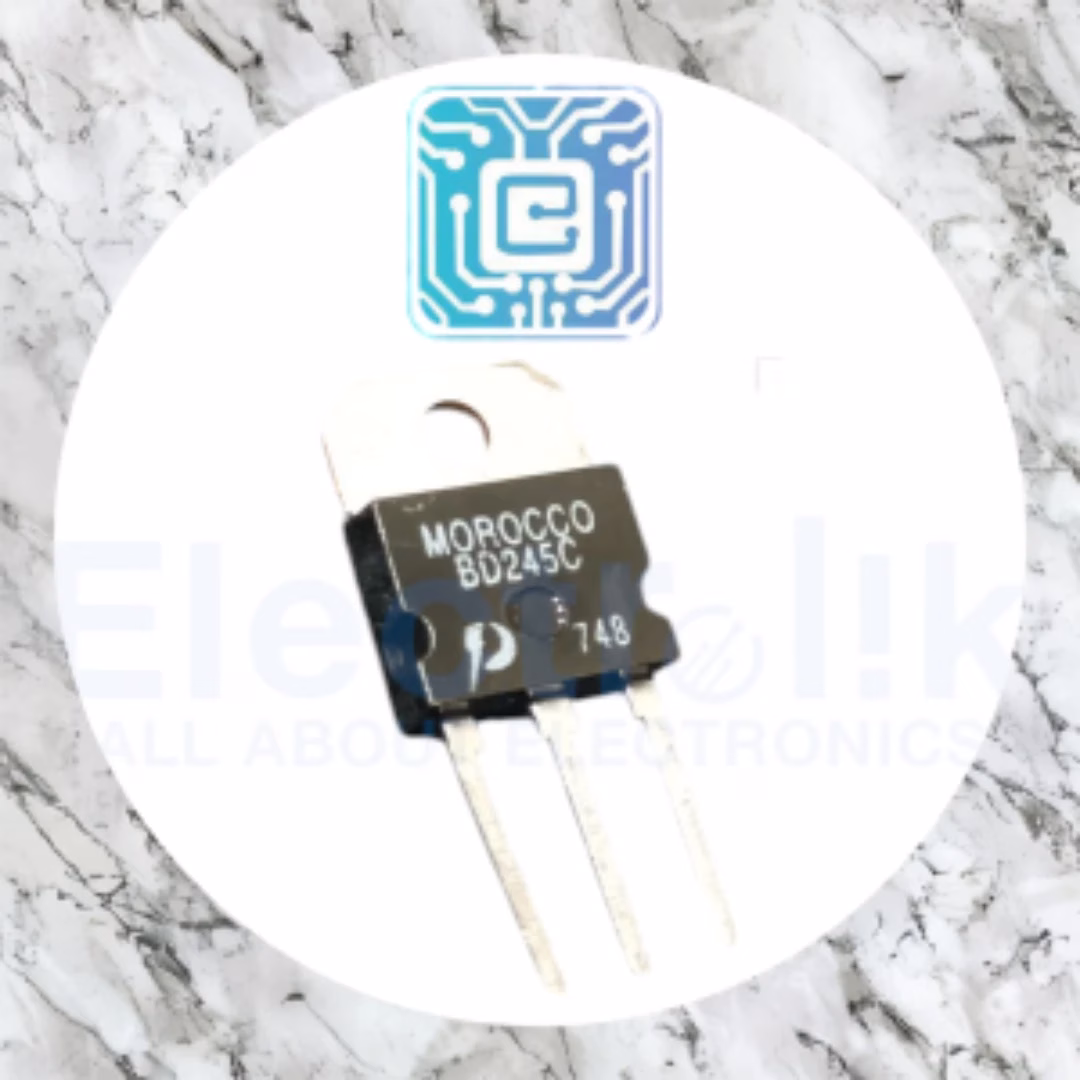

Transistor BD245 NPN 15A 45V

Description:Transistor BD245 NPN 15A 45V

BD245 Transistor is a robust NPN power transistor designed for medium to high-power switching and amplification applications. The BD245 Transistor delivers exceptional performance in circuits that require high current handling, low saturation voltage, and reliable thermal stability. It is widely used in audio amplifiers, motor control systems, voltage regulators, and power supply circuits.

With a collector current capacity of 15A and a collector-emitter voltage rating of 45V, the BD245 Transistor provides efficient power amplification and switching in both linear and pulse applications. Moreover, it offers a low collector-emitter saturation voltage and a high DC current gain, ensuring energy efficiency and reduced power loss during operation.

The BD245 Transistor is built using high-quality silicon planar technology, providing excellent durability, fast response, and consistent gain characteristics. Encased in a TO-3 or TO-247 package, it guarantees excellent heat dissipation, mechanical strength, and long operational life, even under continuous high-load conditions.

Key Features:

• NPN Power Transistor: Optimized for power amplification and switching.

• High Collector Current: Supports up to 15A continuous current.

• Voltage Rating: Operates up to 45V collector-emitter voltage.

• Low Saturation Voltage: Enhances energy efficiency and reduces heat.

• High DC Current Gain (hFE): Provides stable and reliable amplification.

• Fast Switching Speed: Suitable for power and audio control systems.

• Rugged TO-3/TO-247 Package: Offers superior heat management and longevity.

Applications:

• Audio power amplifiers and output stages

• Motor drivers and control circuits

• Voltage and current regulation systems

• Power supplies and DC-DC converters

• Industrial control and automation circuits

• Educational and experimental high-current projects

Electrical Characteristics (Typical Values):

Advantages:

• High power capability with low heat generation.

• Excellent efficiency for power supply and amplifier applications.

• Stable and linear response under varying loads.

• Thermally rugged design ensures long-term reliability.

• Compact and cost-effective, suitable for commercial and industrial use.

Summary:

The BD245 Transistor is a durable and efficient NPN power transistor that combines high current capacity with fast switching and stable performance. With a 15A current rating and 45V voltage tolerance, it offers strong amplification, low saturation voltage, and high gain—making it ideal for amplifiers, inverters, and motor control systems. Its rugged design, reliable thermal characteristics, and superior energy efficiency make it a trusted choice for engineers and technicians. Whether used in professional power systems or educational projects, the BD245 Transistor ensures dependable and long-lasting performance.
