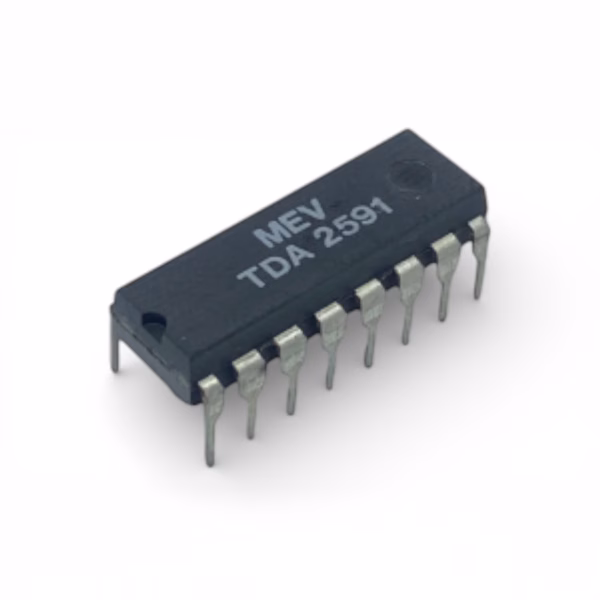

TDA2591 Line oscillator combination

TDA2591 Line Oscillator Combination is a classic and highly specialized integrated circuit developed for television deflection and synchronization systems. This device was widely used in analog TV receivers, where accurate line frequency generation and stable synchronization were essential for proper picture display. Today, the TDA2591 is considered a rare and valuable component, mainly required for repair, restoration, and maintenance of legacy television equipment.

General Overview

First of all, the TDA2591 Line Oscillator Combination was designed as a dedicated solution for horizontal (line) oscillator and synchronization functions in CRT television circuits. By integrating multiple control blocks into a single IC, it significantly reduced circuit complexity. As a result, TV manufacturers were able to improve reliability while lowering production costs. Moreover, the IC was engineered to provide excellent stability even under varying signal and temperature conditions.

Functional Design and Operation

From a technical standpoint, the TDA2591 Line Oscillator Combination combines line synchronization, oscillator control, and phase comparison in one compact device. Consequently, it ensures accurate locking of the horizontal deflection circuit to the incoming video signal.
Its main functional capabilities include:

• Horizontal line oscillator generation

• Line synchronization and phase comparison

• Automatic frequency control (AFC)

• Stable operation with noisy or weak signals

• Compatibility with standard CRT deflection stages

In addition, the IC is optimized to work seamlessly with external line output stages, making it suitable for a wide range of television designs.

Typical Applications

Historically, the TDA2591 Line Oscillator Combination was extensively used in black-and-white and color television receivers. For example, it appeared in consumer CRT TVs, video monitors, and professional display systems. Furthermore, it was often paired with line output transistors and flyback transformers to control horizontal scanning. Today, its main application is in servicing older televisions, especially where original circuit integrity must be preserved. Therefore, it remains essential for technicians dealing with classic TV electronics.

Datasheet – Technical Summary

According to the official datasheet information, the TDA2591 offers the following specifications:

• Function: Line oscillator and synchronization combination

• Synchronization: Horizontal sync pulse processing

• Control: Phase detector and AFC loop

• Operating voltage: Designed for standard TV power rails

• Signal handling: Stable operation with varying input levels

• External components: Works with external timing and deflection parts

• Package type: Through-hole package suitable for legacy PCB layouts

• Application focus: CRT television horizontal deflection systems

As a result, the IC delivers precise timing and stable picture performance.

Manufacturer and Availability

The TDA2591 Line Oscillator Combination was originally produced by Philips, a leader in television and consumer electronics technology. However, the device is now discontinued and classified as obsolete. Nevertheless, it is still available through specialized suppliers of legacy and hard-to-find electronic components. Consequently, its market demand remains steady among repair professionals.

Conclusion

In conclusion, the TDA2591 Line Oscillator Combination remains a critical component in the world of legacy television repair. Although modern display technologies no longer require such ICs, this device excels in accuracy, stability, and compatibility with classic CRT designs. Therefore, for technicians and engineers maintaining or restoring analog TV systems, the TDA2591 continues to be a reliable and irreplaceable solution.
