10PCS Automatic Irrigation Kit Self Watering System

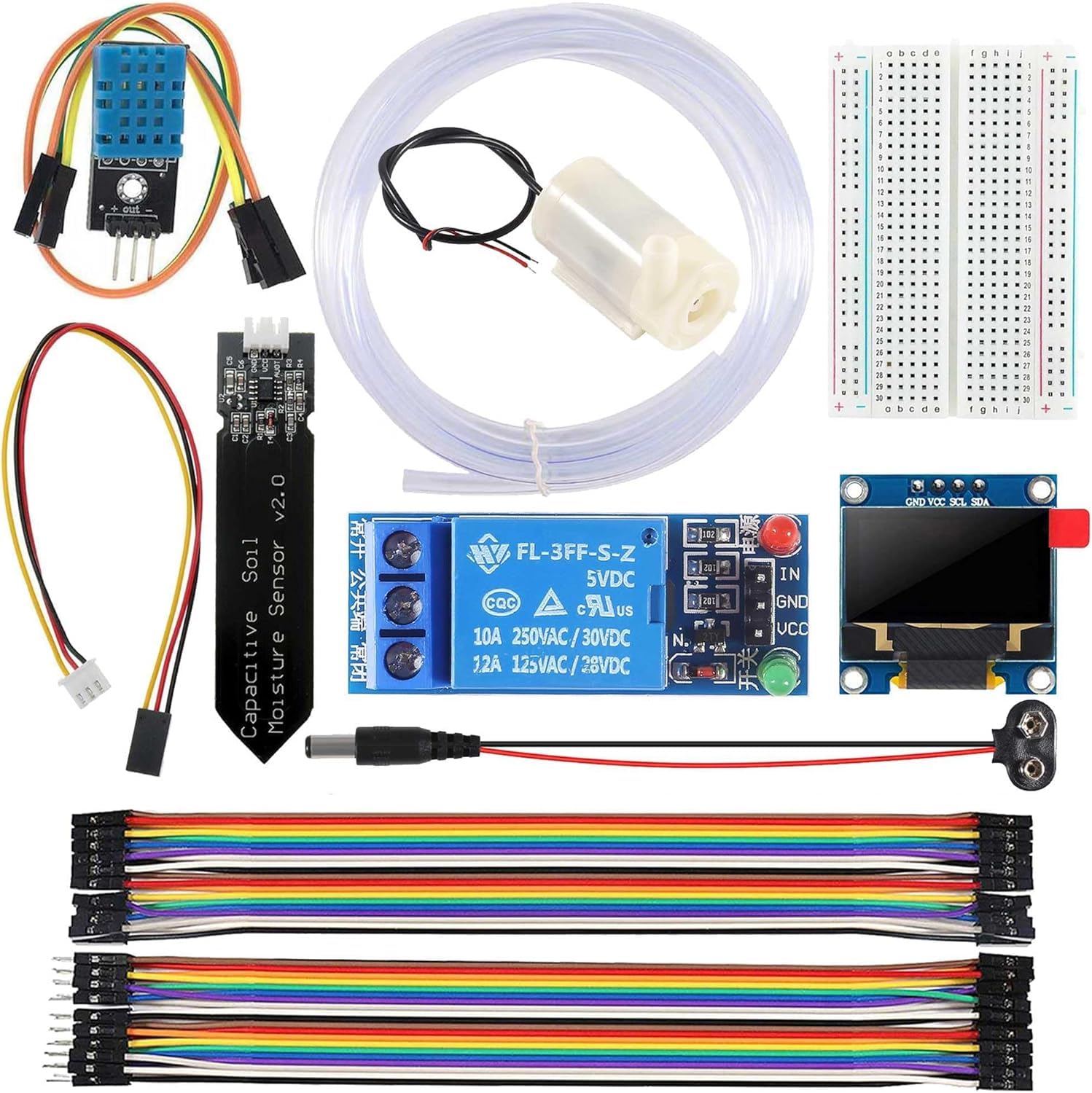

Description: We will use Capacitive Soil Moisture Sensor to measure moisture content present in the soil. Similarly to measure Air Temperature and Humidity, we prefer DHT11 Humidity Temperature Sensor. Using a 5V Power relay we will control the Water Pump. Whenever the sensor detects a low quantity of moisture in the soil, the motor turns on automatically. Once the soil becomes wet, the motor turns off. Please refer to the instructions for assembly, contact for a complete tutorial. Specification Capacitive Soil Moisture Sensor Supports 3-Pin Sensor interface Analog output Operating Voltage: DC 3.3-5.5V Output Voltage: DC 0-3.0V Interface: PH2.0-3P Size: 99x16mm/3.9×0.63″ DHT11 Humidity Temperature Sensor Input Supply Voltage (VDC): 3.3 ~ 5V Supply Current (mA): measurement 0.3mA standby 60μA Temperature measurement range: 0~50 degrees Temperature measurement error: ±2 degrees Humidity measurement range: 20%~95%RH Humidity measurement error: ±5%RH DC 3-6V Micro Submersible Mini Water Pump Operating Voltage : 2.5 ~ 6V Operating Current : 130 ~ 220mA Flow Rate : 80 ~ 120 L/H Maximum Lift : 40 ~ 110 mm Outlet Outside Diameter: 7.5 mm Outlet Inside Diameter: 5 mm Package Includes: 1* Capacitive Soil Moisture Sensor 1* 0.96″ I2C OLED Display 1* DHT11 Sensor 1*1 Channel 5V Relay Module 1* 5V DC Motor Pump 1* 1M Tubing 1* 400 Point Breadboard 1* 9V Battery Power Cable 1* 20pin Jumper Wires Female to Male 1* 20pin Jumper Wires Male to Male
