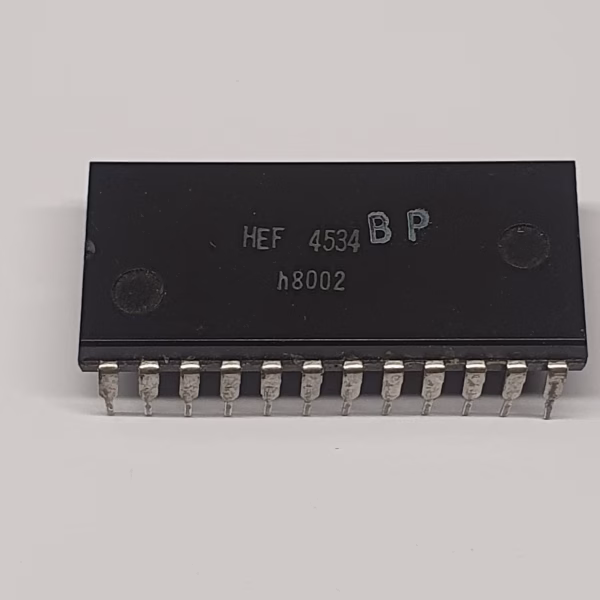

HEF4534BP PHILIPS

696,00 EGP

دائرة HEF4534BP (فيليبس، عائلة CMOS 4000B المقوّاة) عداد/مقسم جونسون بـ5 مراحل بفك تشفير خرج في الوقت الحقيقي، بتوفر نسب قسمة متعددة قابلة للاختيار من شريحة واحدة. | The HEF4534BP (Philips, buffered CMOS 4000B-series) is a 5-stage Johnson counter/divider with real-time output decoding, providing multiple selectable division ratios from a single chip.

متوفر

Description

HEF4534BP 5-Stage Johnson Counter/Divider

The HEF4534BP (Philips, buffered CMOS 4000B-series) is a 5-stage Johnson counter/divider with real-time output decoding, providing multiple selectable division ratios from a single chip.

4534 – How It Works

Like the simpler 4017 Johnson counter (also in this catalog), it uses a Johnson (twisted-ring) architecture for glitch-free decoded outputs, but with additional logic offering more flexible, selectable division ratios for real-time clock and timekeeping applications.

Its real-time division selection makes it especially well suited to digital clock designs that need to switch between different time-base ratios (e.g. for seconds, minutes, alarm settings) without external logic.

Key Features

  • 5-stage Johnson counter architecture
  • Real-time selectable division ratios
  • Glitch-free decoded outputs

Typical Applications

  • Real-time clock and timekeeping circuits
  • Selectable-frequency divider applications
  • Digital clock and calendar designs

Datasheet Specifications

  • Supply Voltage: 3V – 15V
  • Logic Family: CMOS 4000B-series
  • Package: 16-pin DIP

For more background, see Johnson counter design: reference. Browse our full range of ICs and microcontrollers.


HEF4534BP 5-Stage Johnson Counter/Divider

دائرة HEF4534BP (فيليبس، عائلة CMOS 4000B المقوّاة) عداد/مقسم جونسون بـ5 مراحل بفك تشفير خرج في الوقت الحقيقي، بتوفر نسب قسمة متعددة قابلة للاختيار من شريحة واحدة.

4534 – إزاي شغالة

زي عداد جونسون الأبسط 4017 (موجود كمان في الكتالوج)، بتستخدم معمارية جونسون (حلقة ملتوية) لمخارج مفكوكة التشفير من غير أخطاء، بس بمنطق إضافي بيوفر نسب قسمة أكتر مرونة وقابلية اختيار لتطبيقات ساعة الوقت الحقيقي وحفظ التوقيت.

اختيار القسمة في الوقت الحقيقي بيخليها مناسبة تمامًا لتصميمات ساعة رقمية محتاجة تتبدل بين نسب قاعدة زمن مختلفة (زي الثواني، الدقايق، إعدادات المنبه) من غير منطق خارجي.

المواصفات الأساسية

  • معمارية عداد جونسون بـ5 مراحل
  • نسب قسمة قابلة للاختيار في الوقت الحقيقي
  • مخارج مفكوكة التشفير بدون أخطاء

الاستخدامات

  • دوائر ساعة وقت حقيقي وحفظ توقيت
  • تطبيقات مقسم تردد قابل للاختيار
  • تصميمات ساعة وتقويم رقمية

المواصفات الفنية

  • جهد التغذية: 3-15 فولت
  • عائلة المنطق: CMOS 4000B
  • التغليف: DIP بـ16 رجل

لمزيد من التفاصيل التقنية راجع عداد جونسون على ويكيبيديا، وتصفح باقي الدوائر المتكاملة والمتحكمات المتوفرة عندنا.
