SAA1027
200,00 EGP
دائرة SAA1027 (فيليبس) دائرة تشغيل موتور ستيبر، مصممة تشغل موتور ستيبر 4 أطوار بـ2 ستاتور بلغاية 350 ملي أمبير لكل خرج. | The SAA1027 (Philips) is a stepper motor drive circuit IC, designed to drive a four-phase, two-stator stepper motor with up to 350mA per output.

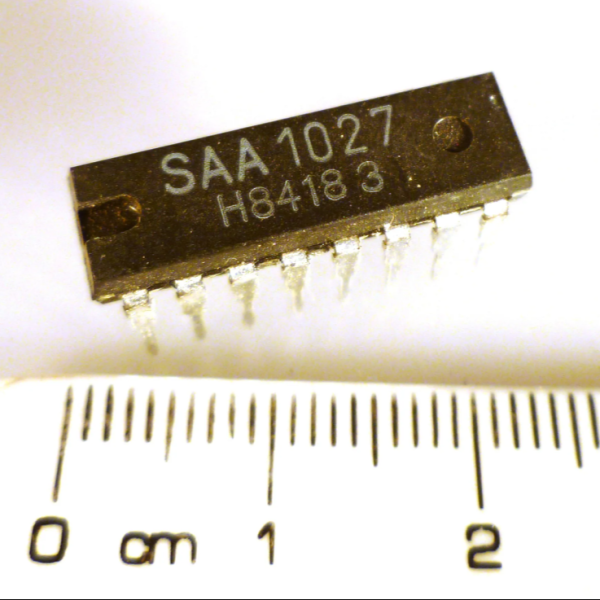

SAA1027 Stepper Motor Driver IC (Philips)
The SAA1027 (Philips) is a stepper motor drive circuit IC, designed to drive a four-phase, two-stator stepper motor with up to 350mA per output.
SAA1027 – How It Works
It integrates a bidirectional 4-state counter and code converter that automatically sequences its four output stages in the correct order needed to step a stepper motor, with a direction input controlling forward/reverse rotation, a set input for holding-brake operation, and built-in high-noise-immunity inputs plus outputs protected against voltage overshoot damage.
It’s a genuinely classic and well-documented stepper driver chip, popular even today among hobbyists for simple stepper motor projects thanks to its complete on-chip sequencing logic requiring minimal external circuitry.
Key Features
- Complete 4-phase stepper motor drive logic
- Bidirectional (CW/CCW) control
- Up to 350mA per output, overvoltage protected
Typical Applications
- Stepper motor positioning control circuits
- Printer, plotter, and precision mechanism drives
- DIY and educational stepper motor projects
Datasheet Specifications
- Function: 4-phase stepper motor driver
- Max Output Current: 350mA
- Package: 16-pin DIP
For more background, see stepper motor operation: reference. Browse our full range of ICs and microcontrollers.
SAA1027 Stepper Motor Driver IC (Philips)
دائرة SAA1027 (فيليبس) دائرة تشغيل موتور ستيبر، مصممة تشغل موتور ستيبر 4 أطوار بـ2 ستاتور بلغاية 350 ملي أمبير لكل خرج.
SAA1027 – إزاي شغالة
بتدمج عداد 4 حالات ثنائي الاتجاه ومحول كود بيرتب تلقائيًا مراحل خرجها الأربعة بالترتيب الصح المحتاج لتحريك موتور ستيبر خطوة، بمدخل اتجاه بيتحكم في دوران أمام/عكس، ومدخل ضبط لتشغيل كبح احتفاظ، ومداخل مناعة ضجيج عالية مدمجة بالإضافة لخروج محمية ضد تلف ارتفاع الجهد.
هي شريحة درايفر ستيبر كلاسيكية موثقة فعلًا، شائعة حتى النهاردة بين الهواة لمشاريع موتور ستيبر بسيطة بفضل منطق ترتيبها الكامل على الشريحة المحتاج دوائر خارجية بسيطة.
المواصفات الأساسية
- منطق تشغيل موتور ستيبر 4 أطوار كامل
- تحكم ثنائي الاتجاه (مع/عكس عقارب الساعة)
- لغاية 350 ملي أمبير لكل خرج، محمية من جهد زائد
الاستخدامات
- دوائر تحكم تموضع موتور ستيبر
- تشغيل طابعة وبلوتر وآلية دقيقة
- مشاريع موتور ستيبر DIY وتعليمية
المواصفات الفنية
- الوظيفة: درايفر موتور ستيبر 4 أطوار
- أقصى تيار خرج: 350 ملي أمبير
- التغليف: DIP بـ16 رجل
لمزيد من التفاصيل التقنية راجع تشغيل موتور الستيبر على ويكيبيديا، وتصفح باقي الدوائر المتكاملة والمتحكمات المتوفرة عندنا.
