UA9637
200,00 EGP
دائرة UA9637 مستقبل خط تفاضلي مزدوج بتقنية شوتكي، نفس الوظيفة الأساسية لـDS9637A الموجودة كمان في الكتالوج، مصممة تلبي معايير RS-422/RS-423. | The UA9637 is a Schottky dual differential line receiver IC, the same core function as the DS9637A also in this catalog, designed to satisfy the RS-422/RS-423 standards.

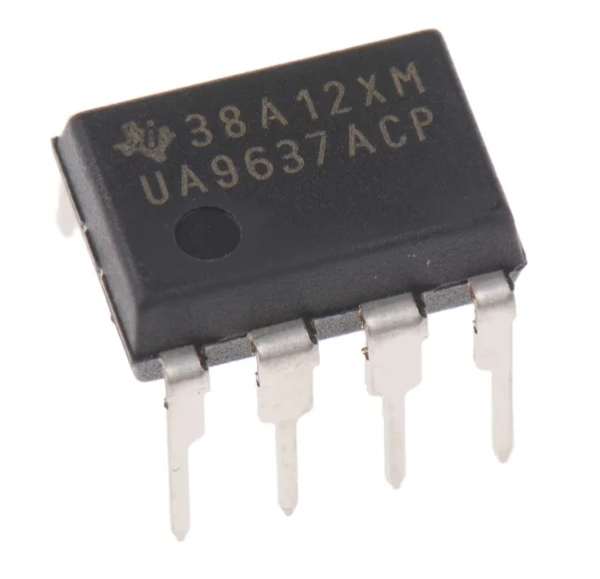

UA9637 Dual Differential Line Receiver (Second Listing)
The UA9637 is a Schottky dual differential line receiver IC, the same core function as the DS9637A also in this catalog, designed to satisfy the RS-422/RS-423 standards.
UA9637 – How It Works
Like the DS9637A, its two independent channels can receive either single-ended or differential, unipolar or bipolar transmission signals, with built-in hysteresis for noise immunity and Schottky TTL-compatible outputs running from a single 5V supply.
Being the same core function as the DS9637A also in this catalog, treat it as fully interchangeable when sourcing a replacement for RS-422/RS-423 receiver circuits.
Key Features
- 2 independent differential line receivers
- EIA RS-422/RS-423 compliant
- Built-in hysteresis noise immunity
Typical Applications
- RS-422/RS-423 industrial serial communication
- Long-distance differential data transmission receivers
- Legacy communication equipment repair
Datasheet Specifications
- Channels: 2 independent differential receivers
- Standards: RS-422, RS-423
- Package: 8-pin DIP
For more background, see the RS-422 differential communication standard: reference. Browse our full range of ICs and microcontrollers.
UA9637 Dual Differential Line Receiver (Second Listing)
دائرة UA9637 مستقبل خط تفاضلي مزدوج بتقنية شوتكي، نفس الوظيفة الأساسية لـDS9637A الموجودة كمان في الكتالوج، مصممة تلبي معايير RS-422/RS-423.
UA9637 – إزاي شغالة
زي DS9637A، قناتيها المستقلتين تقدروا يستقبلوا إشارات إرسال أحادية الطرف أو تفاضلية، أحادية أو ثنائية القطبية، مع هيستيريسيس مدمج لمناعة الضجيج وخرج متوافق مع Schottky TTL بيشتغل من مصدر 5 فولت واحد.
بكونها نفس الوظيفة الأساسية زي DS9637A الموجودة كمان في الكتالوج، تعامل معاها كقابلة للتبديل بالكامل لما بتوفر بديل لدوائر مستقبل RS-422/RS-423.
المواصفات الأساسية
- مستقبلي خط تفاضلي مستقلين
- متوافقة مع EIA RS-422/RS-423
- مناعة ضجيج هيستيريسيس مدمجة
الاستخدامات
- اتصال تسلسلي صناعي RS-422/RS-423
- مستقبلات نقل بيانات تفاضلي لمسافات طويلة
- صيانة معدات اتصال قديمة
المواصفات الفنية
- القنوات: مستقبلين تفاضليين مستقلين
- المعايير: RS-422، RS-423
- التغليف: DIP بـ8 أرجل
لمزيد من التفاصيل التقنية راجع معيار الاتصال التفاضلي RS-422 على ويكيبيديا، وتصفح باقي الدوائر المتكاملة والمتحكمات المتوفرة عندنا.
| Weight | 0,00 kg |
|---|---|
| Dimensions | 0,00 × 0,00 × 0,00 cm |
