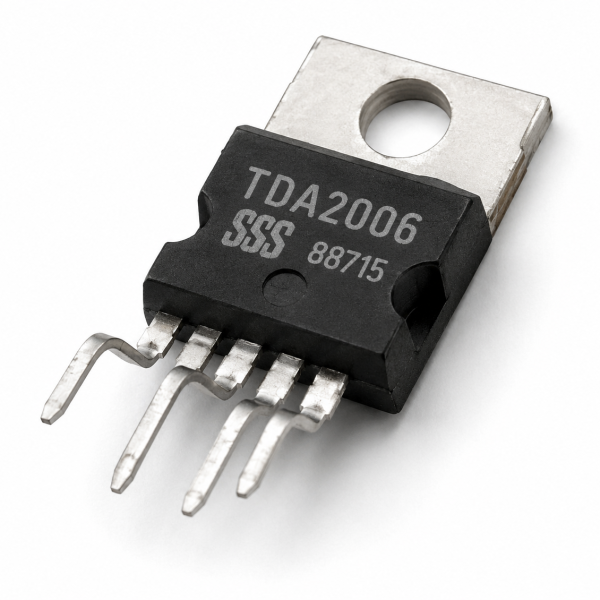

TDA 2006
15,00 EGP
دائرة TDA2006 مضخم قدرة صوتي 12 وات كلاسيكي، جزء من نفس عائلة سلسلة TDA العامة زي TDA2003 وTDA2050 الموجودتين كمان في الكتالوج، معروفة بخصائص تشوه منخفضة. | The TDA2006 is a classic 12W audio power amplifier IC, part of the same general TDA-series family as the TDA2003 and TDA2050 also in this catalog, known for its low distortion characteristics.
TDA2006 12W Audio Power Amplifier
The TDA2006 is a classic 12W audio power amplifier IC, part of the same general TDA-series family as the TDA2003 and TDA2050 also in this catalog, known for its low distortion characteristics.
TDA2006 – How It Works
Like the TDA2003 also in this catalog but with a symmetrical (dual-supply-friendly) pinout and slightly different protection scheme, it amplifies a line-level input signal directly to speaker-driving power in a single package with built-in thermal and short-circuit protection, popular in DIY hi-fi and general audio amplifier projects.
Among electronics hobbyists it’s often chosen alongside the TDA2003 also in this catalog for DIY amplifier projects, with the symmetrical pinout being specifically preferred for dual-supply (split-rail) circuit designs.
Key Features
- 12W audio output power
- Symmetrical pinout suited to dual-supply designs
- Built-in thermal and short-circuit protection
Typical Applications
- DIY hi-fi audio amplifier projects
- General-purpose 12W amplifier applications
- Dual-supply audio amplifier designs
Datasheet Specifications
- Output Power: 12W
- Protection: Thermal shutdown, short-circuit
- Package: Multiwatt-11 / Pentawatt
For more background, see audio power amplifier design: reference. Browse our full range of ICs and microcontrollers.
TDA2006 12W Audio Power Amplifier
دائرة TDA2006 مضخم قدرة صوتي 12 وات كلاسيكي، جزء من نفس عائلة سلسلة TDA العامة زي TDA2003 وTDA2050 الموجودتين كمان في الكتالوج، معروفة بخصائص تشوه منخفضة.
TDA2006 – إزاي شغالة
زي TDA2003 الموجودة كمان في الكتالوج لكن بترتيب أرجل متماثل (صديق لتغذية مزدوجة) ومخطط حماية مختلف شوية، بتكبر إشارة دخل مستوى خط مباشرة لقدرة تشغيل سماعة في تغليفة واحدة مع حماية حرارية وقصر دائرة مدمجة، شائعة في مشاريع مضخم هاي فاي DIY وصوتي عامة.
بين هواة الإلكترونيات غالبًا بتتختار جنب TDA2003 الموجودة كمان في الكتالوج لمشاريع مضخم DIY، وترتيب الأرجل المتماثل مفضل بالتحديد لتصميمات دائرة تغذية مزدوجة (رابط مقسوم).
المواصفات الأساسية
- قدرة خرج صوتي 12 وات
- ترتيب أرجل متماثل مناسب لتصميمات تغذية مزدوجة
- حماية حرارية وقصر دائرة مدمجة
الاستخدامات
- مشاريع مضخم صوت هاي فاي DIY
- تطبيقات مضخم 12 وات للأغراض العامة
- تصميمات مضخم صوتي تغذية مزدوجة
المواصفات الفنية
- قدرة الخرج: 12 وات
- الحماية: إيقاف حراري، قصر دائرة
- التغليف: Multiwatt-11 / Pentawatt
لمزيد من التفاصيل التقنية راجع مضخم القدرة الصوتي على ويكيبيديا، وتصفح باقي الدوائر المتكاملة والمتحكمات المتوفرة عندنا.
| Weight | 0,00 kg |
|---|---|
| Dimensions | 0,00 × 0,00 × 0,00 cm |
