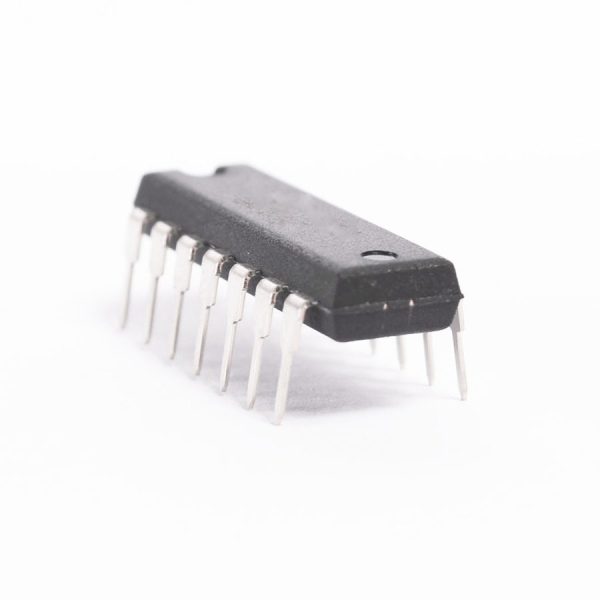

LM13013
200,00 EGP
دائرة LM13013 (ناشونال سيميكوندكتور) شريحة درايفر انحراف رأسي لأجهزة استقبال تليفزيون، جزء من تشكيلة شريحة تليفزيون استهلاكية من ناشونال سيميكوندكتور لشاشات مبنية على CRT. | The LM13013 (National Semiconductor) is a vertical deflection driver IC for television receivers, part of National Semiconductor’s consumer TV chip lineup for CRT-based displays.
LM13013 Vertical Deflection Driver IC (National Semiconductor)
The LM13013 (National Semiconductor) is a vertical deflection driver IC for television receivers, part of National Semiconductor’s consumer TV chip lineup for CRT-based displays.
LM13013 – How It Works
Like the TDA1675A, LA7837, and LA78041 also in this catalog, it drives the vertical deflection yoke coil with the sawtooth-shaped current waveform needed to scan the electron beam from top to bottom of a CRT screen, representing National Semiconductor’s entry into this specific category of consumer TV support chip.
A vertical picture that collapses to a horizontal line is the classic symptom pointing to a failed chip like this one — the same fundamental diagnostic sign shared with every other vertical deflection driver also in this catalog.
Key Features
- Vertical deflection drive for CRT TVs
- National Semiconductor consumer TV chip family
- Sawtooth waveform yoke driving
Typical Applications
- CRT television vertical scan circuits
- National-Semiconductor-based TV chassis repair
- Vintage TV restoration
Datasheet Specifications
- Function: Vertical deflection output driver
- Manufacturer: National Semiconductor
- Package: DIP with heatsink tab
For more background, see CRT deflection technology: reference. Browse our full range of ICs and microcontrollers.
LM13013 Vertical Deflection Driver IC (National Semiconductor)
دائرة LM13013 (ناشونال سيميكوندكتور) شريحة درايفر انحراف رأسي لأجهزة استقبال تليفزيون، جزء من تشكيلة شريحة تليفزيون استهلاكية من ناشونال سيميكوندكتور لشاشات مبنية على CRT.
LM13013 – إزاي شغالة
زي TDA1675A وLA7837 وLA78041 الموجودين كمان في الكتالوج، بتشغل ملف يوك الانحراف الرأسي بموجة تيار شكل سن منشار محتاجة عشان تمسح شعاع الإلكترونات من فوق لتحت شاشة CRT، بتمثل دخول ناشونال سيميكوندكتور لفئة شريحة دعم تليفزيون استهلاكية دي بالتحديد.
صورة رأسية بتنهار لخط أفقي هو العرض الكلاسيكي اللي بيشاور على شريحة معطلة زي دي — نفس علامة التشخيص الأساسية مشتركة مع كل درايفر انحراف رأسي تاني موجود كمان في الكتالوج.
المواصفات الأساسية
- تشغيل انحراف رأسي لتليفزيونات CRT
- عائلة شريحة تليفزيون استهلاكية من ناشونال سيميكوندكتور
- تشغيل يوك بموجة سن منشار
الاستخدامات
- دوائر مسح رأسي تليفزيون CRT
- صيانة شاسيه تليفزيون مبني على ناشونال سيميكوندكتور
- ترميم تليفزيون قديم
المواصفات الفنية
- الوظيفة: درايفر خرج انحراف رأسي
- الشركة المصنعة: ناشونال سيميكوندكتور
- التغليف: DIP بلسان تبريد
لمزيد من التفاصيل التقنية راجع تقنية انحراف CRT على ويكيبيديا، وتصفح باقي الدوائر المتكاملة والمتحكمات المتوفرة عندنا.
| Weight | 0,00 kg |
|---|---|
| Dimensions | 0,00 × 0,00 × 0,00 cm |
