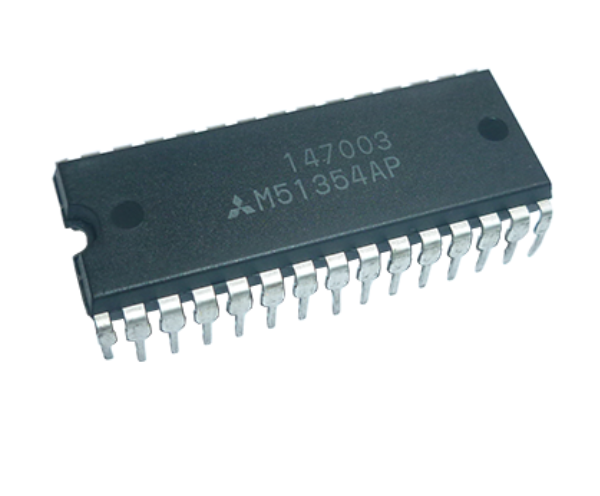

M51354
200,00 EGP
دائرة M51354 (ميتسوبيشي) نظام تردد وسيط (IF) لتليفزيون، نفس القطعة الأساسية زي M51354AP الموجودة كمان في الكتالوج، بتعالج إشارات IF صورة/صوت في أجهزة استقبال تليفزيون تناظرية. | The M51354 (Mitsubishi) is a television intermediate-frequency (IF) system IC, the same underlying part as the M51354AP also in this catalog, processing vision/sound IF signals in analog TV receivers.
M51354 Mitsubishi TV IF System (Second Listing)
The M51354 (Mitsubishi) is a television intermediate-frequency (IF) system IC, the same underlying part as the M51354AP also in this catalog, processing vision/sound IF signals in analog TV receivers.
M51354 – How It Works
Like other TV IF system chips, it amplifies and demodulates the relatively weak IF signal coming from the tuner stage, recovering the video and/or audio information needed by the rest of the television’s processing circuitry — this listing represents the same Mitsubishi chip potentially in a different package marking or supplier batch.
Given it’s the same core part as the M51354AP also in this catalog, always confirm which exact package/marking a specific repair calls for, though the underlying IF processing function is identical.
Key Features
- TV vision/sound IF amplification and demodulation
- Mitsubishi consumer electronics IC
- Same function as M51354AP
Typical Applications
- Analog TV receiver IF stages
- Vintage TV repair
- Educational broadcast IF circuits
Datasheet Specifications
- Function: TV IF system
- Manufacturer: Mitsubishi
- Package: DIP
For more background, see intermediate frequency (IF) stages: reference. Browse our full range of ICs and microcontrollers.
M51354 Mitsubishi TV IF System (Second Listing)
دائرة M51354 (ميتسوبيشي) نظام تردد وسيط (IF) لتليفزيون، نفس القطعة الأساسية زي M51354AP الموجودة كمان في الكتالوج، بتعالج إشارات IF صورة/صوت في أجهزة استقبال تليفزيون تناظرية.
M51354 – إزاي شغالة
زي باقي شرائح نظام IF تليفزيون، بتكبر وتفك تضمين إشارة IF الضعيفة نسبيًا الجاية من مرحلة التيونر، وبتسترجع معلومات الصورة و/أو الصوت المحتاجاها باقي دوائر معالجة التليفزيون — القائمة دي بتمثل نفس شريحة ميتسوبيشي في علامة تغليف أو دفعة مورد مختلفة محتملة.
بما إنها نفس القطعة الأساسية زي M51354AP الموجودة كمان في الكتالوج، تأكد دايمًا أنهي تغليفة/علامة بالتحديد صيانة معينة محتاجاها، رغم إن وظيفة معالجة IF الأساسية متطابقة.
المواصفات الأساسية
- تضخيم وفك تضمين IF صورة/صوت تليفزيون
- شريحة أجهزة استهلاكية من ميتسوبيشي
- نفس وظيفة M51354AP
الاستخدامات
- مراحل IF أجهزة استقبال تليفزيون تناظري
- صيانة تليفزيونات قديمة
- دوائر تعليمية لمراحل IF البث
المواصفات الفنية
- الوظيفة: نظام IF تليفزيون
- الشركة المصنعة: ميتسوبيشي
- التغليف: DIP
لمزيد من التفاصيل التقنية راجع التردد الوسيط على ويكيبيديا، وتصفح باقي الدوائر المتكاملة والمتحكمات المتوفرة عندنا.
| Weight | 0,00 kg |
|---|---|
| Dimensions | 0,00 × 0,00 × 0,00 cm |
