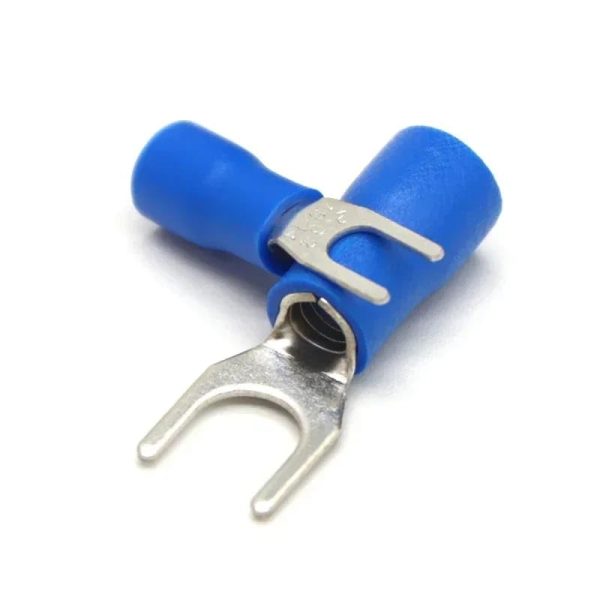

Fork Terminal 4mm Blue

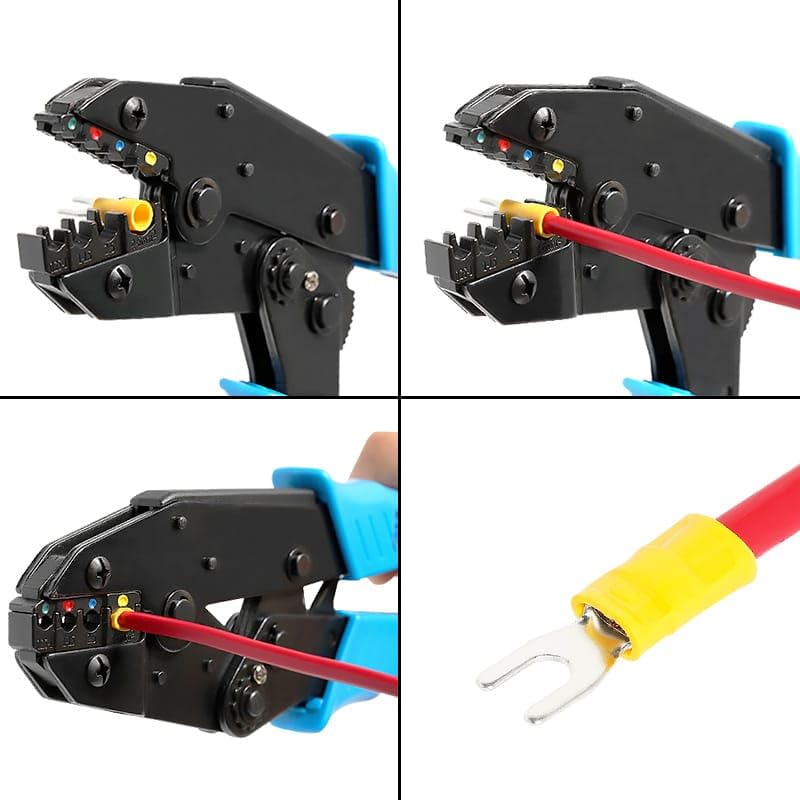

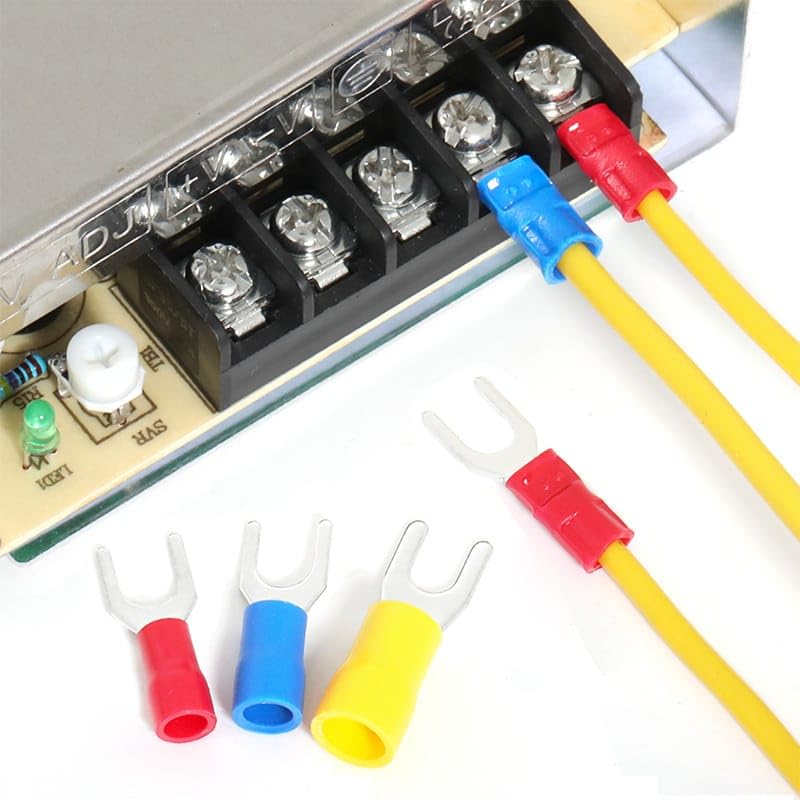

Designed to work seamlessly under screw heads without removing the screw, these spade terminals allow fast, safe installation. The insulated grip helps protect wire termination areas from stress and mechanical damage. Their funnel-entry barrel simplifies wire insertion and supports reliable crimps. Features The fork design allows easy connection without removing the entire screw. Insulated cover prevents accidental electrical contact and short circuits. Made from high-quality tin-plated copper for excellent conductivity and corrosion resistance. Provides a long-lasting and vibration-resistant connection. Suitable for automotive, industrial, and household electrical systems. Performs well in environments with high temperatures and mechanical stress. Specifications Model Wire Range (mm²) Stud Size d₂ (Inner Fork Width) F (Fork Length) L (Total Length) H (Barrel Length) D φ (Insulation Ø) Color Max Current SVS1.25‑3 0.5–1.5 #6 3.7 mm 6.5 mm 21.2 mm 10 mm 4.3 mm Red 19 A SVS1.25‑4 0.5–1.5 #8 4.3 mm 6.5 mm 21.2 mm 10 mm 4.3 mm Red 19 A SVS1.25‑5 0.5–1.5 #10 5.3 mm 6.5 mm 21.2 mm 10 mm 4.3 mm Red 19 A SV2‑3 1.5–2.5 #4 3.2 mm 6.5 mm 21.2 mm 10 mm 4.9 mm Blue 27 A SVS2‑4 1.5–2.5 #8 4.3 mm 6.5 mm 21.2 mm 10 mm 4.9 mm Blue 27 A SV2‑5 1.5–2.5 #10 5.3 mm 6.5 mm 21.2 mm 10 mm 4.9 mm Blue 27 A SV5.5‑5 4–6 #10 5.3 mm 7.5 mm 25.2 mm 12.5 mm 6.7 mm Yellow 48 A SV5.5‑6 4–6 ¼″ 6.5 mm 7.5 mm 25.2 mm 12.5 mm 6.7 mm Yellow 48 A

Handling & Safety

Always confirm the rating, polarity and pinout of a wire terminal connector before installing it, and avoid exceeding its rated voltage or current. Use proper ESD precautions with sensitive parts. These steps protect your circuit and keep your work safe.

Why Choose This Wire Terminal Connector

First, it is a widely used part in electronics repair, prototyping and assembly, so it fits into most existing projects easily. Second, the value, rating or pin count is clearly stated, so you can match it to your circuit with confidence. Third, our team checks basic function before it ships. So, you avoid guesswork when you order. As a result, this is a dependable choice for repair, prototyping or a finished project.

Usage Tips

Before soldering or installing, match the value, package and pin layout with your circuit diagram. Therefore, you avoid a wrong fit or a damaged board. Also, keep small parts stored in labeled bags so values do not get mixed up during a project. As a result, your build stays organized and easier to troubleshoot.

Good to Know

A well-matched wire terminal connector saves time on the job later. Therefore, double-check the value, rating and pin layout against your circuit before relying on it in a final build. Also, keep the original packaging until you have tested the part, since this makes any exchange easier if something is not right. As a result, your project stays reliable with fewer surprises.

Fork Terminal 4mm Blue

Fork Terminal 4mm Blue طرف توصيل سلك مخصص لـ تثبيت السلك بإحكام على طرف برغي أو قطب.

الاستخدامات

• توصيلات اللوحات والصناديق
• توصيلات السيارات والمعدات
• التوصيلات الكهربائية المنزلية
• استبدال طرف سلك تالف

ملاحظات الأمان

تأكد دايمًا من القيمة والقطبية وترتيب الأرجل بتاعة طرف توصيل سلك قبل التركيب، وماتتخطاش الجهد أو التيار المسموح بيه. استخدم احتياطات الشحنة الساكنة (ESD) مع القطع الحساسة. الخطوات دي بتحمي دائرتك وتخلي شغلك آمن.

ليه تختار طرف توصيل سلك ده

أولاً، قطعة مستخدمة بشكل واسع في إصلاح وتجميع الدوائر الإلكترونية، فتتناسب مع معظم المشاريع بسهولة. ثانيًا، القيمة أو التصنيف أو عدد الأرجل موضحة بدقة، فتقدر تطابقها مع دائرتك بثقة. ثالثًا، بنتأكد من الوظيفة الأساسية قبل الشحن. فهو اختيار موثوق للإصلاح أو التجربة أو مشروع متكامل.

تقدر تستعرض باقي المكونات الإلكترونية عندنا لمشروعك القادم.
