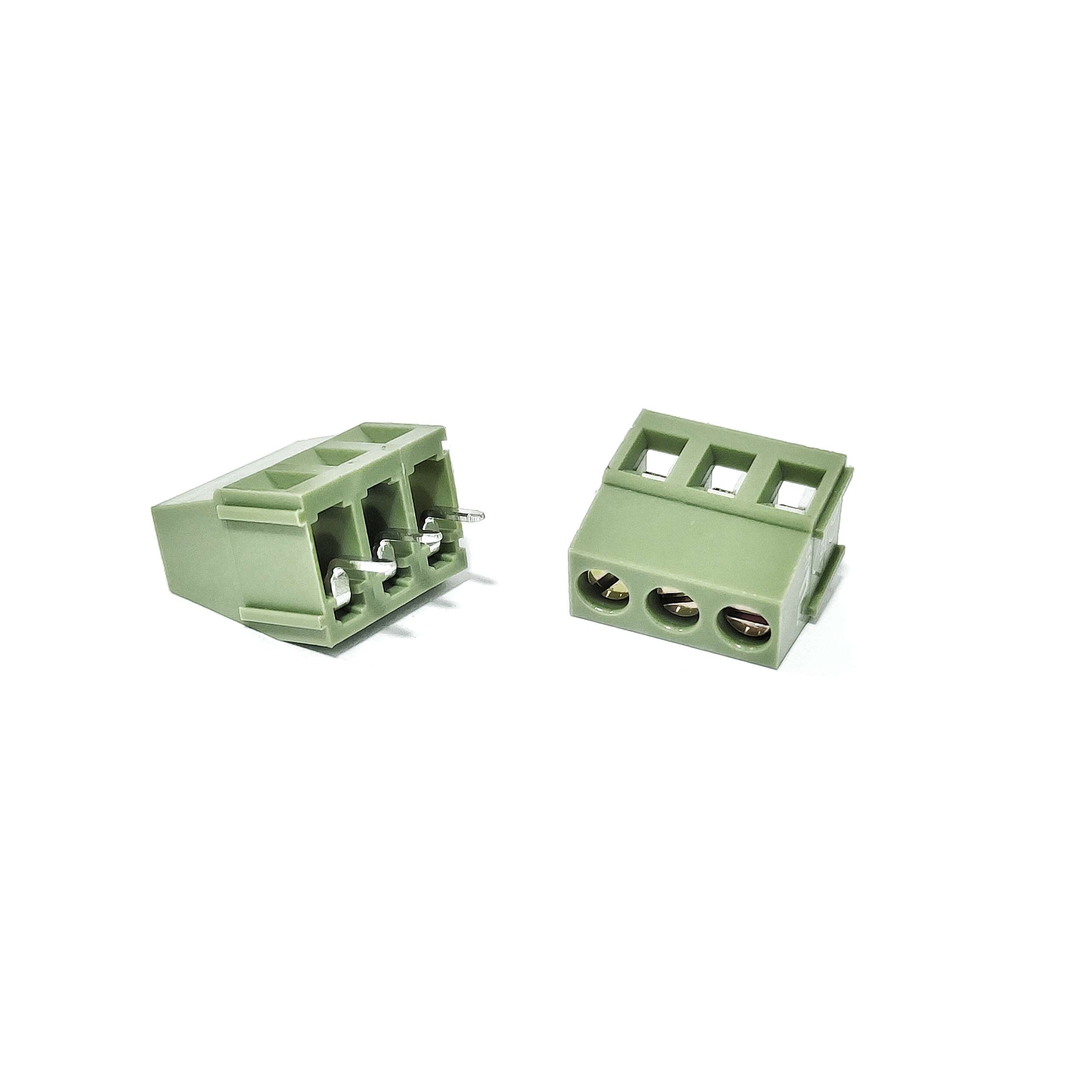

Terminal Block 3 Pin 300V 10A 5mm Pitch

Screw-type clamp terminals for secure wire connections. Three-position design for multi-wire connections. Standard 5 mm pitch compatible with common PCB layouts. Through-hole mounting for reliable mechanical support. Durable thermoplastic housing with corrosion-resistant contacts. Accepts a range of solid and stranded wire sizes (AWG 12–22). Specifications: Parameter Value Number of Pins/Positions: 3 Pitch (Center-to-Center): 5 mm Rated Voltage: 300 V Rated Current: 10 A Wire Gauge Range: AWG 12–22 Mounting Style: Through-hole PCB Terminal Type: Screw clamp Operating Temperature: ~-40 °C to +105 °C Housing Material: Thermoplastic (green) Contact Plating: Tin-plated
